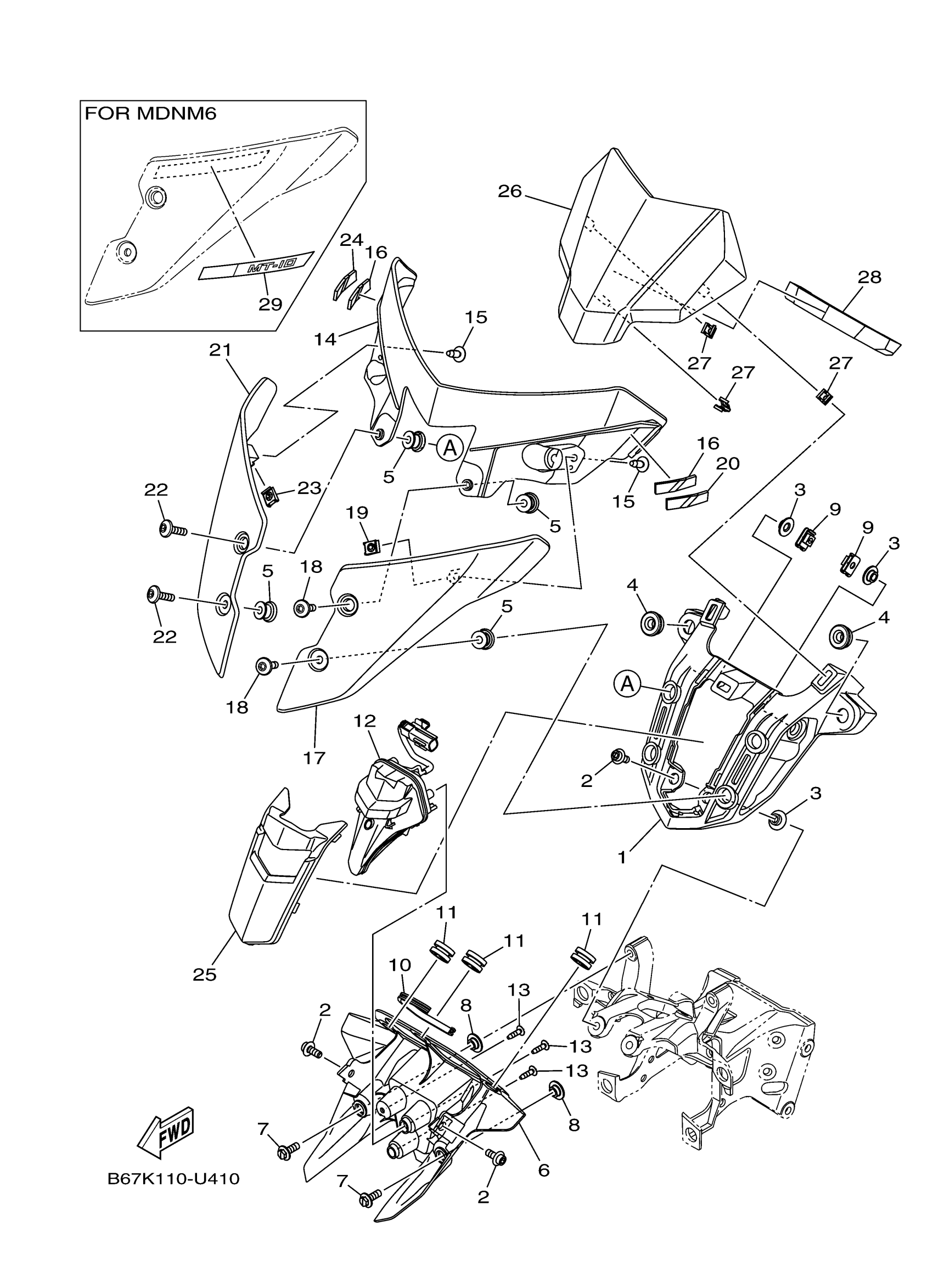

Yamaha MT10KGY (MT10) B67K0 2019 COWLING 2 Diagram

#

Description
Price

1

STAY 2

B67-28357-00-00

$44.99

2

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

$8.49

3

COLLAR

90387-06170-00

$8.49

4

GROMMET

90480-13014-00

$8.49

5

NUT

90179-06072-00

$5.60

6

PANEL, INNER 5

B67-2836R-00-00

$45.99

7

BOLT, FLANGE

90105-06170-00

$4.72

8

COLLAR

90387-06170-00

$8.49

9

NUT, SPRING

90183-060A6-00

$5.49

10

MOLD, SEAT

2D1-24785-00-00

$8.99

11

DAMPER

4XV-83513-00-00

$7.99

12

PILOT LIGHT ASSY 1

B67-84301-00-00

$242.99

13

SCREW, TRUSS TAP.

97707-40016-00

$8.49

14

COVER, UPPER 1

B67-23121-00-00

$69.99

15

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

16

HOOK, SIDE COVER

4XV-2411G-00-00

Unavailable

17

COVER, OUTER 1

B67-23122-00-P0

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-06123-00

Unavailable

19

NUT, SPRING(1YT)

90183-05042-00

Unavailable

20

HOOK, SIDE COVER

4XV-2411G-00-00

Unavailable

21

COVER, OUTER 2

B67-23132-00-P0

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06123-00

Unavailable

23

NUT, SPRING(1YT)

90183-05042-00

Unavailable

24

HOOK, SIDE COVER

4XV-2411G-00-00

Unavailable

25

PANEL

B67-28261-00-00

Unavailable

26

COVER, METER

B67-83559-00-00

Unavailable

27

CLIP

90468-040A0-00

Unavailable

28

DAMPER, PLATE

90520-20003-00

Unavailable

29

GRAPHIC, 15

B67-2832B-70-00

Unavailable
