2018 Yamaha MT10 (MT10JL) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2018 Yamaha MT10 (MT10JL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

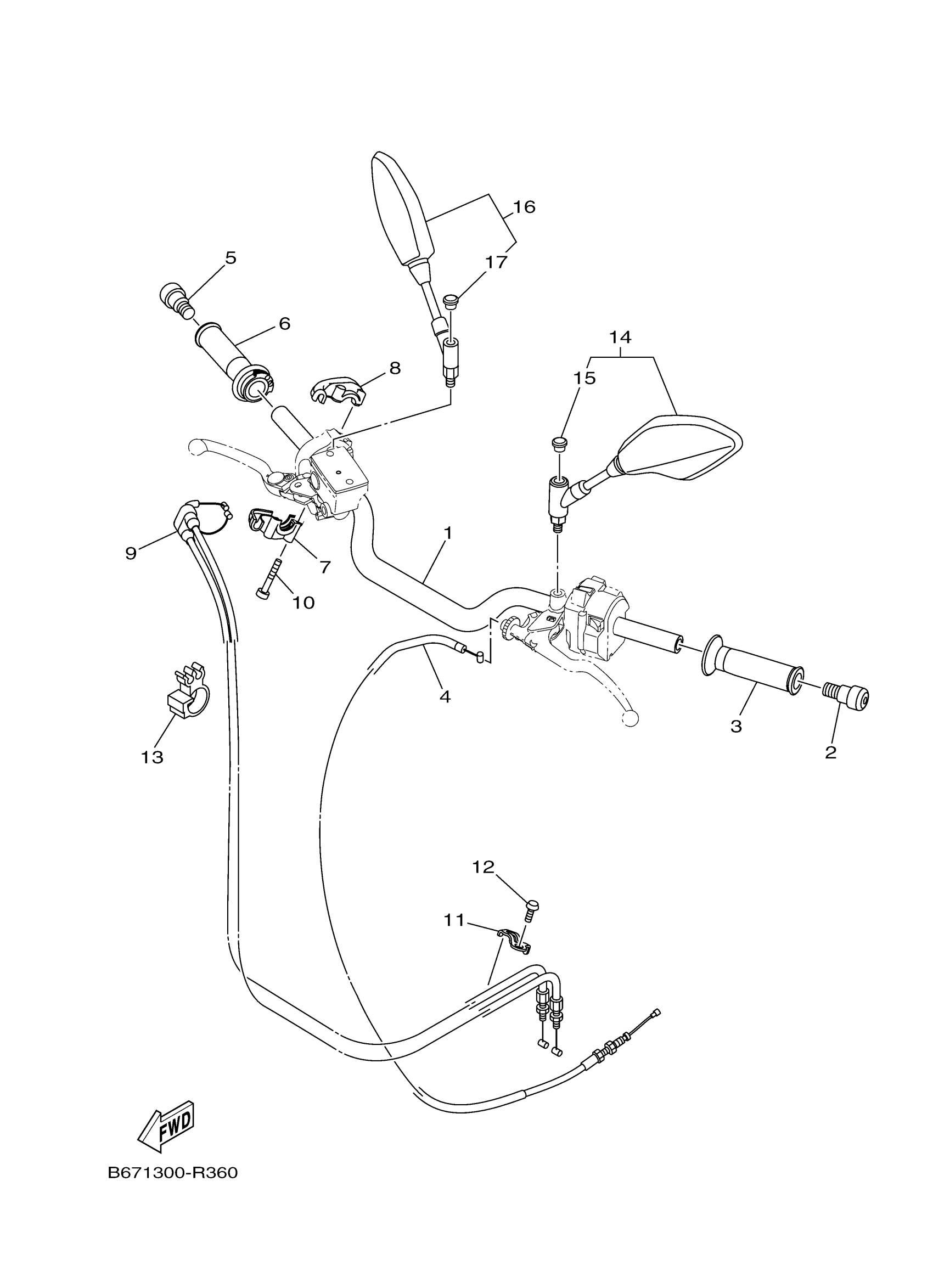

2018 Yamaha MT10 (MT10JL) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

B67-26111-00-00

1
Out of stock

2

END, GRIP

5GJ-26246-00-00

1
Out of stock

3

GRIP

4YR-26241-03-00

1
Out of stock

4

WIRE, CLUTCH

B67-26335-01-00

1
Out of stock

5

END, GRIP

5GJ-26246-00-00

1
Out of stock

6

GRIP ASSY

4YR-26240-03-00

1
Out of stock

7

CAP, GRIP UPPER

1WS-26281-00-00

1
Out of stock

8

CAP, GRIP UNDER

1WS-26282-00-00

1
Out of stock

9

THROTTLE CABLE ASSY

B67-26302-00-00

—
Out of stock

10

BOLT, SOCKET

91317-05040-00

1
Out of stock

11

CLAMP, WIRE

2CR-2627E-00-00

1
Out of stock

12

BOLT, BUTTON HEAD(3JP)

92014-06012-00

1
Out of stock

13

CLAMP

90464-16023-00

1
Out of stock

14

REAR VIEW MIRROR ASSY (LEFT)

B67-26280-01-00

1
Out of stock

15

CAP

5PS-26133-20-00

1
Out of stock

16

REAR VIEW MIRROR ASSY (RIGHT)

B67-26290-01-00

—
Out of stock

17

CAP

5PS-26133-20-00

1
Out of stock
