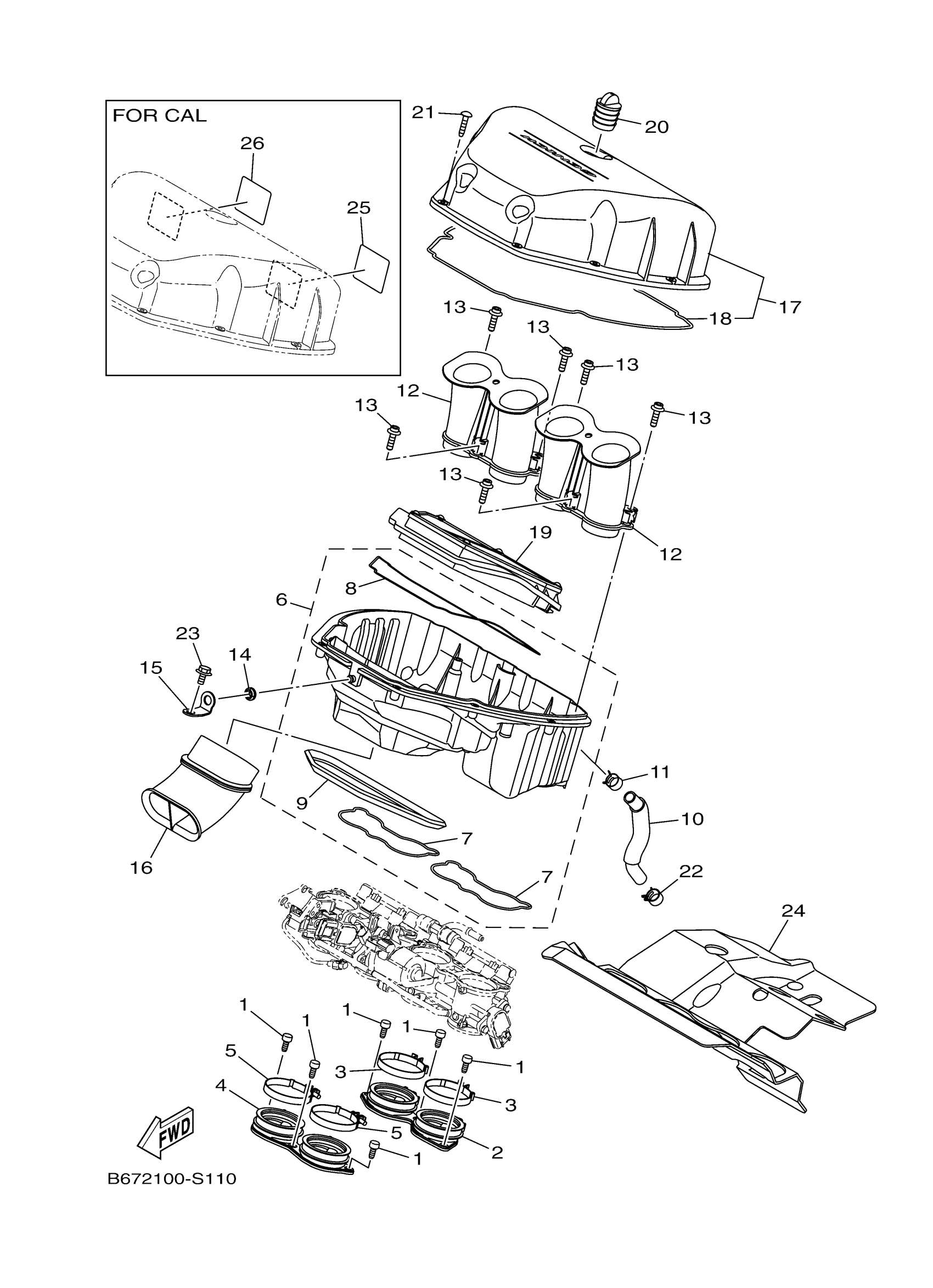

Yamaha MT10JL (MT10) B6790 2018 INTAKE Diagram

#

Description
Price

1

BOLT (33M)

91312-06014-00

$5.60

2

JOINT, INTAKE 1

2CR-13635-00-00

Unavailable

3

HOSE CLAMP ASSY

90450-60004-00

$16.99

4

JOINT, INTAKE 2

2CR-13636-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-60004-00

$16.99

6

CASE, AIR CLEANER 1

B67-14411-00-00

Unavailable

7

SEAL

2CR-14457-00-00

$7.99

8

SEAL

2CR-14462-00-00

$11.99

9

DAMPER 1

2CR-14425-00-00

Unavailable

10

PIPE, BREATHER 2

2CR-15393-00-00

$14.49

11

CLIP

90467-15001-00

$7.49

12

FUNNEL, AIR

B67-14469-01-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

14

GROMMET

90480-12010-00

Unavailable

15

STAY 1

B67-14498-00-00

Unavailable

16

DUCT

B67-14437-00-00

Unavailable

17

CASE, AIR CLEANER 2

B67-14421-00-00

Unavailable

18

SEAL

2CR-14452-00-00

Unavailable

19

ELEMENT, AIR CLEANER

2CR-14451-01-00

Unavailable

20

PLUG

5VY-14862-00-00

Unavailable

21

SCREW, ROUND TAPPING

90160-05013-00

Unavailable

22

CLIP

90467-160A6-00

Unavailable

23

BOLT, WITH WASHER

90119-06051-00

Unavailable

24

PROTECTOR, HEAT

2CR-12682-10-00

Unavailable

25

PLATE, ROUTING

14B-21684-00-00

Unavailable

26

PLATE, ROUTING 2

2CR-21686-00-00

Unavailable
