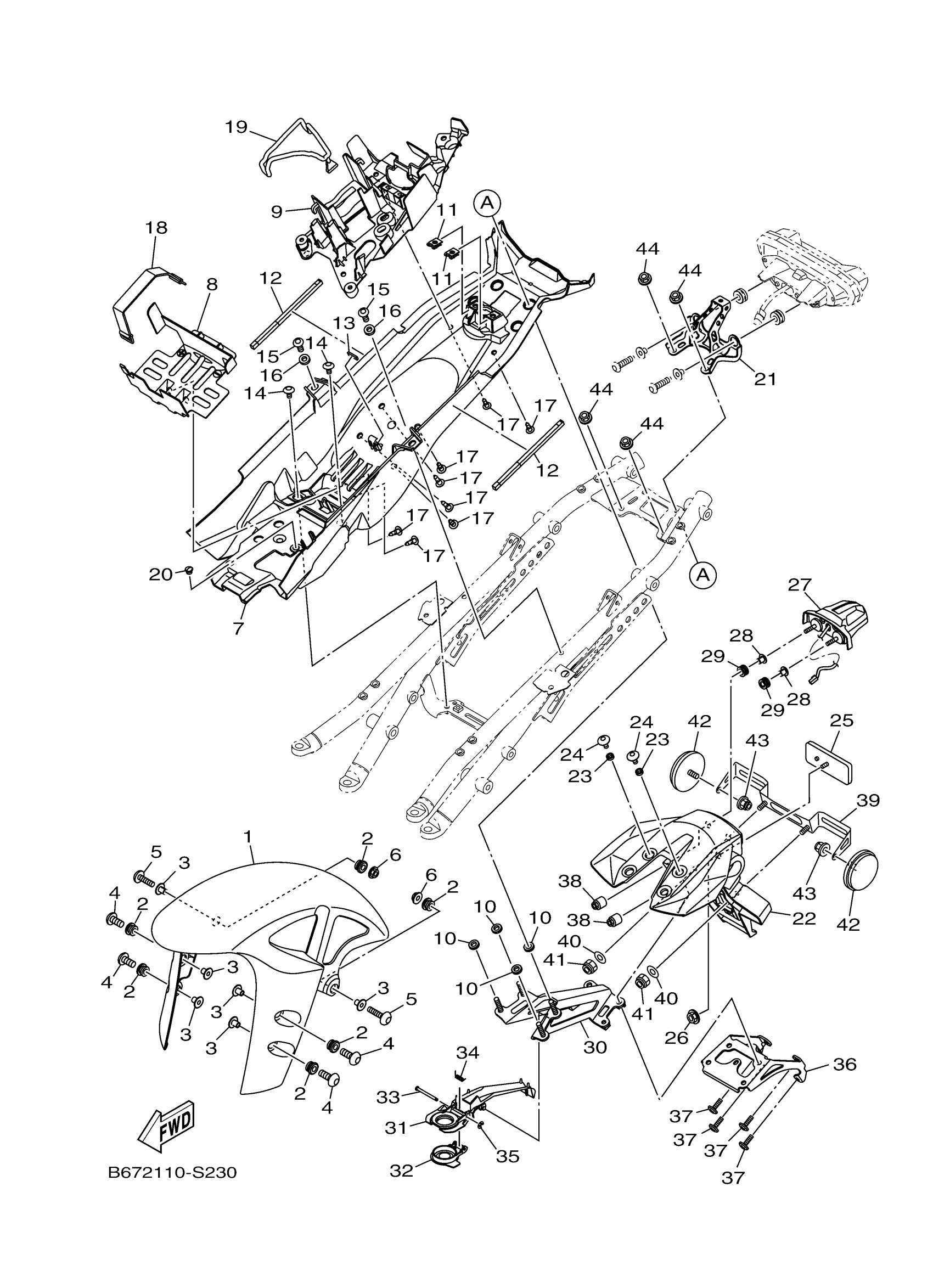

Yamaha MT10JL (MT10) B6790 2018 FENDER Diagram
#
1
FENDER, FRONT
14B-21511-00-P5
Unavailable
7
BOX, BATTERY 1
B67-8212B-00-00
Unavailable
8
BOX, BATTERY 2
B67-8212C-00-00
Unavailable
9
PLATE 1
B67-2162G-01-00
Unavailable
10
SPACER(2GV)
90560-08326-00
Unavailable
11
NUT, SPRING(4ES)
90183-06069-00
Unavailable
12
DAMPER 3
1B7-2834E-00-00
Unavailable
16
WASHER PLATE 122217250000
90202-07015-00
Unavailable
17
RIVET
90269-06008-00
Unavailable
18
BAND, BATTERY
133-82131-00-00
Unavailable
19
BAND, TOOL
3YX-21376-00-00
Unavailable
20
PLUG 288833190000
90338-07043-00
Unavailable
21
BRACKET, TAILLIGHT
B67-2117E-00-00
Unavailable
22
GUARD, MUD
1RC-21629-01-00
Unavailable
23
COLLAR
90387-06106-00
Unavailable
24
BOLT
90111-06061-00
Unavailable
25
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
26
NUT, S/L FLANGE
95607-05200-00
Unavailable
27
LICENCE LIGHT UNIT ASSY
B67-84745-00-00
Unavailable
28
COLLAR
90387-05042-00
Unavailable
29
GROMMET
90480-11009-00
Unavailable
30
STAY 1
B67-2164F-00-00
Unavailable
31
COVER, REAR FENDER
B67-2163E-01-00
Unavailable
32
CAP, ROTOR
1RC-2465B-01-00
Unavailable
33
PIN
90249-03002-00
Unavailable
34
SPRING, TORSION
90508-09007-00
Unavailable
35
CIRCLIP (604)
93430-02001-00
Unavailable
36
STAY, PLATE
1RC-21682-00-00
Unavailable
37
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
38
WEIGHT
1RC-2622H-00-00
Unavailable
39
BRACKET, LICENSE
1RC-84751-00-00
Unavailable
40
WASHER, PLAIN (646)
92990-06600-00
Unavailable
41
NUT, SELF-LOCKING
95617-06100-00
Unavailable
42
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
43
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
44
NUT, U FLANGE
95604-06200-00
Unavailable
