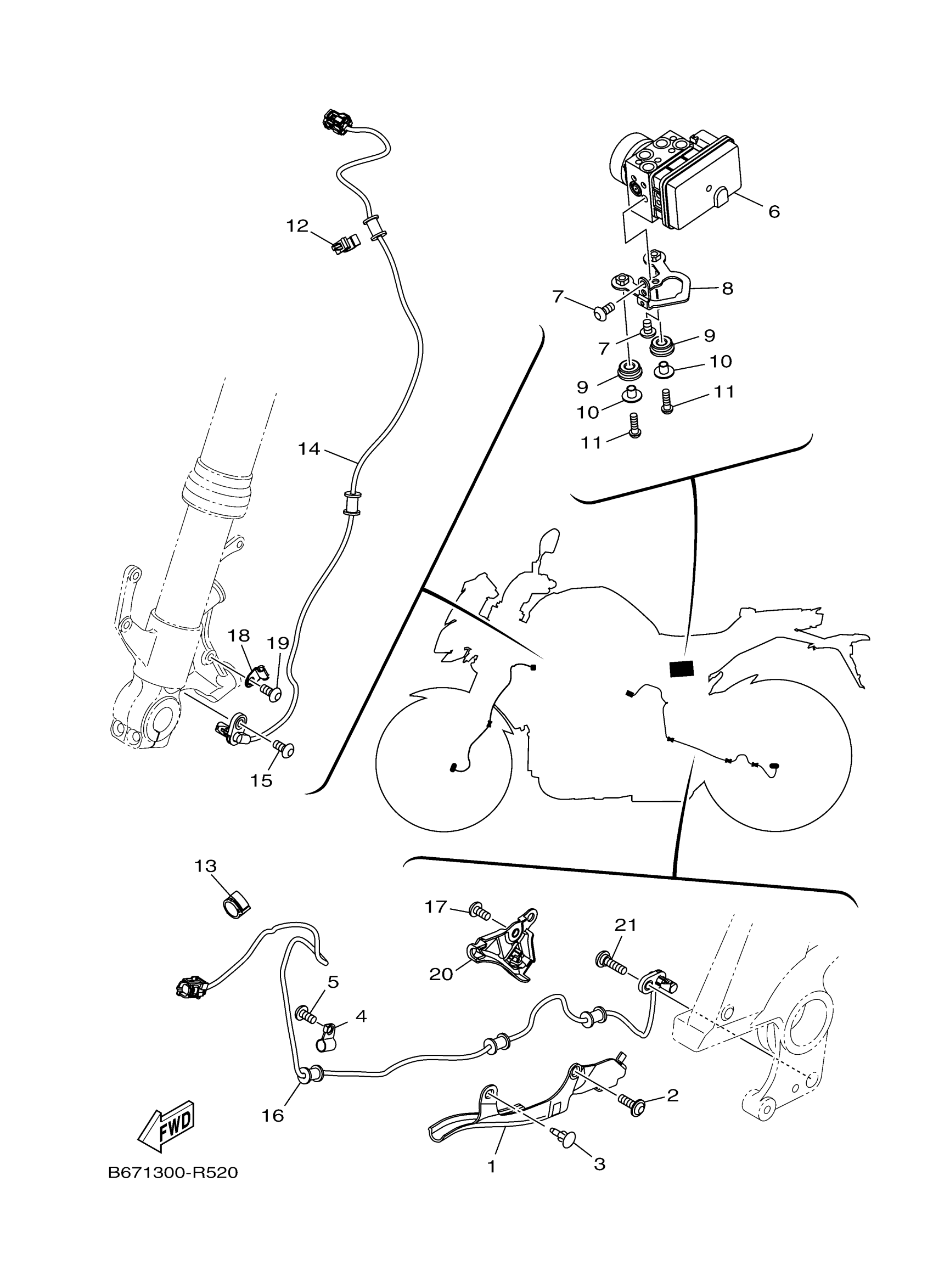

Yamaha MT10JL (MT10) B6790 2018 ELECTRICAL 3 Diagram

#

Description
Price

1

COVER

2CR-2219X-00-00

Unavailable

2

BOLT, BUTTON HEAD

92012-06016-00

$8.49

3

RIVET

90269-07007-00

$4.08

4

HOOK

B67-2216F-00-00

Unavailable

5

BOLT, BUTTON HEAD

92017-06012-00

$7.49

6

HYDRAULIC UNIT ASSY

B67-85930-08-00

$736.99

7

BOLT, BUTTON HEAD

92012-06010-00

$4.30

8

BRACKET, UNIT

B67-85991-00-00

Unavailable

9

GROMMET(4FU)

90480-13567-00

$4.99

10

COLLAR

90387-06160-00

Unavailable

11

BOLT, BUTTON HEAD

92012-06020-00

$8.49

12

CLAMP(3LD)

90464-09129-00

$2.22

13

CLAMP

90464-16003-00

$7.49

14

WHEEL SENSOR ASSY, FRONT

2CR-85970-01-00

$134.99

15

BOLT, BUTTON HEAD

92017-06014-00

$4.29

16

WHEEL SENSOR ASSY, REAR

2CR-85980-01-00

Unavailable

17

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

18

HOLDER, CABLE

2CR-23317-00-00

Unavailable

19

BOLT, BUTTON HEAD

92017-06014-00

$4.29

20

PROTECTOR

2CR-27491-01-00

Unavailable

21

BOLT

90109-06234-00

Unavailable
