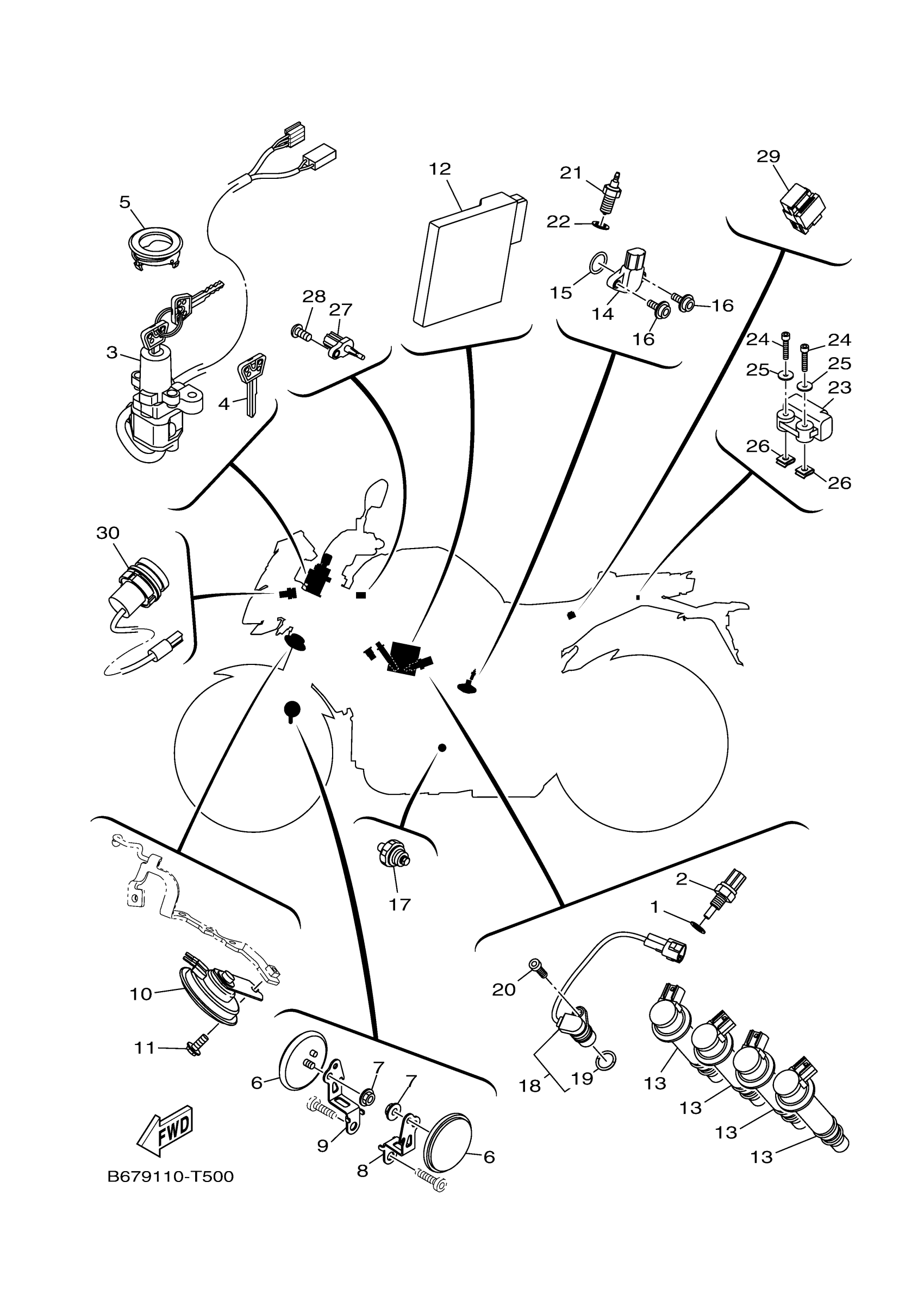

Yamaha MT10JL (MT10) B6790 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

MAIN SWITCH STEERING LOCK

B67-82501-11-00

$161.99

4

BLANK KEY

4BH-82511-09-00

$30.99

5

CAP, SWITCH

36P-82552-00-00

$15.49

6

REFLECTOR, FRONT 1

4AG-85111-00-00

$15.49

7

NUT, FLANGE

95702-06500-00

$2.39

8

BRACKET, REFLECTOR

2CR-85112-00-00

Unavailable

9

BRACKET, REFLECTOR

2CR-85122-00-00

$27.99

10

HORN

B67-83371-00-00

$70.99

11

BOLT, FLANGE

95817-06012-00

$1.43

12

ENGINE CONTROL UNIT ASSY

B67-8591A-51-00

$1,863.99

13

IGNITION COIL ASSY

B67-82310-00-00

Unavailable

14

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

15

O-RING

93210-17008-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

Unavailable

17

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

Unavailable

18

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

19

O-RING

4D9-81168-00-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

22

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

23

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

24

BOLT

91312-04025-00

Unavailable

25

WASHER, PLATE

90201-04030-00

Unavailable

26

NUT, SPRING(47R)

90183-04039-00

Unavailable

27

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

28

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

29

RELAY ASSY

5DM-81950-01-00

Unavailable

30

TERMINAL COMP.

B67-8254B-01-00

Unavailable
