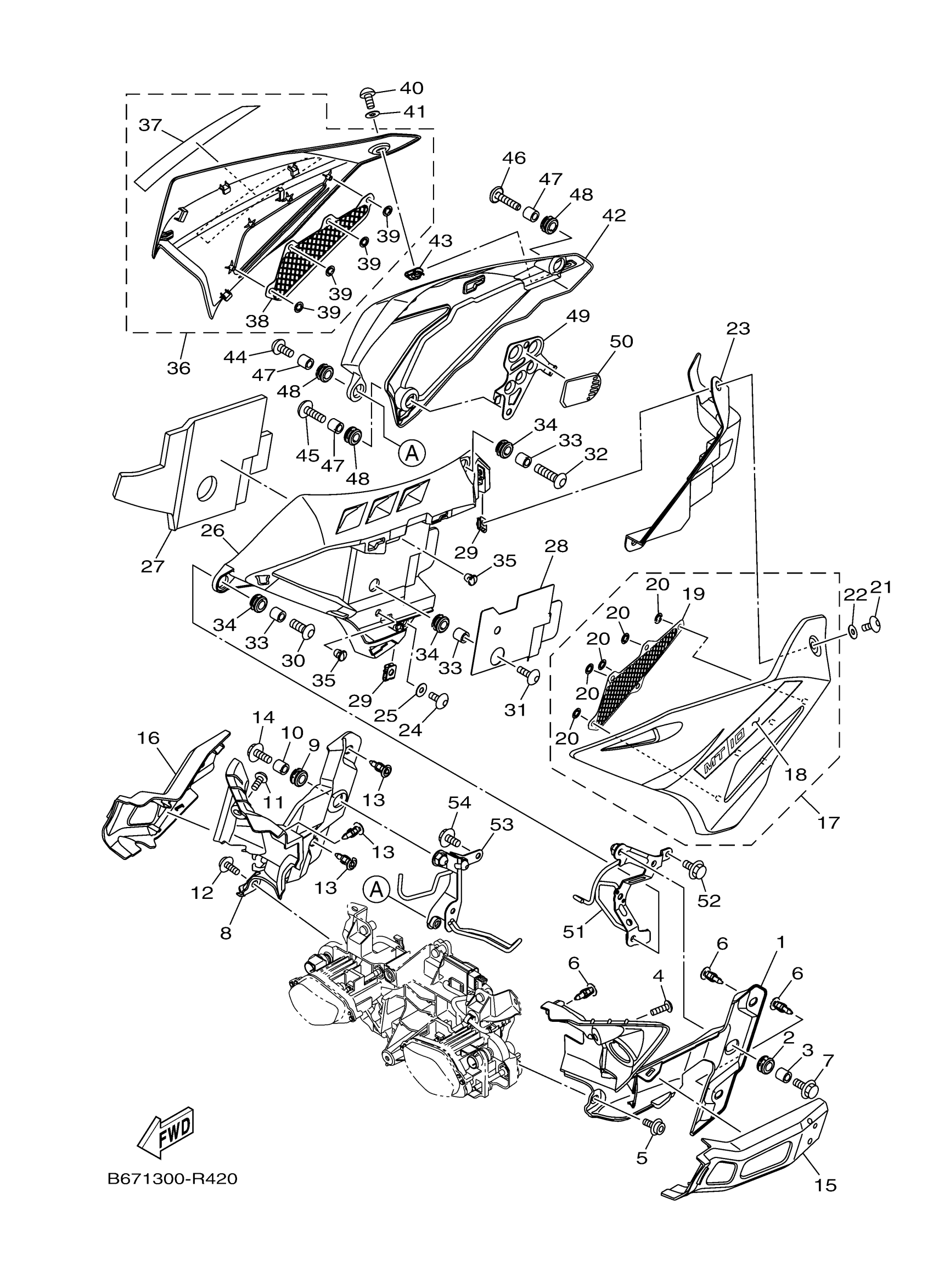

Yamaha MT10JL (MT10) B6790 2018 COWLING 3 Diagram
#
8
PANEL, INNER 4
B67-2836N-01-00
Unavailable
15
STAY, SIDE 1
B67-2831U-01-00
Unavailable
16
STAY, SIDE 1
B67-2832U-01-00
Unavailable
17
COVER 1
B67-Y284M-70-P4
Unavailable
18
GRAPHIC 1
B67-28391-60-00
Unavailable
19
GRILL, AIR OUTLET 1
B67-2837V-00-00
Unavailable
20
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
22
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
23
COVER 3
B67-2843J-00-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
25
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
26
BRACKET 1
B67-2836A-00-00
Unavailable
27
DAMPER 1
B67-28415-01-00
Unavailable
28
SHEET 1
B67-21266-00-00
Unavailable
29
NUT, SPRING
90183-050A6-00
Unavailable
30
BOLT
90111-06038-00
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-06084-00
Unavailable
32
BOLT
90111-06030-00
Unavailable
35
PLUG(1NL)
90338-07180-00
Unavailable
36
COVER 2
B67-Y284N-70-P4
Unavailable
37
GRAPHIC 2
B67-28392-60-00
Unavailable
38
GRILL, AIR OUTLET 2
B67-2837W-00-00
Unavailable
39
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
41
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
42
BRACKET 2
B67-2836E-00-00
Unavailable
43
NUT, SPRING
90183-050A6-00
Unavailable
44
BOLT
90111-06038-00
Unavailable
45
BOLT,HEX. SOCKET BUTTON
90111-06084-00
Unavailable
46
BOLT
90111-06030-00
Unavailable
49
BRACKET 12
B67-2833J-00-00
Unavailable
50
DAMPER
B67-21488-00-00
Unavailable
51
BRACKET 1
B67-2172K-00-00
Unavailable
52
BOLT, FLANGE
95817-06012-00
Unavailable
53
BRACKET 2
B67-2172L-00-00
Unavailable
54
BOLT, FLANGE
95817-06012-00
Unavailable
