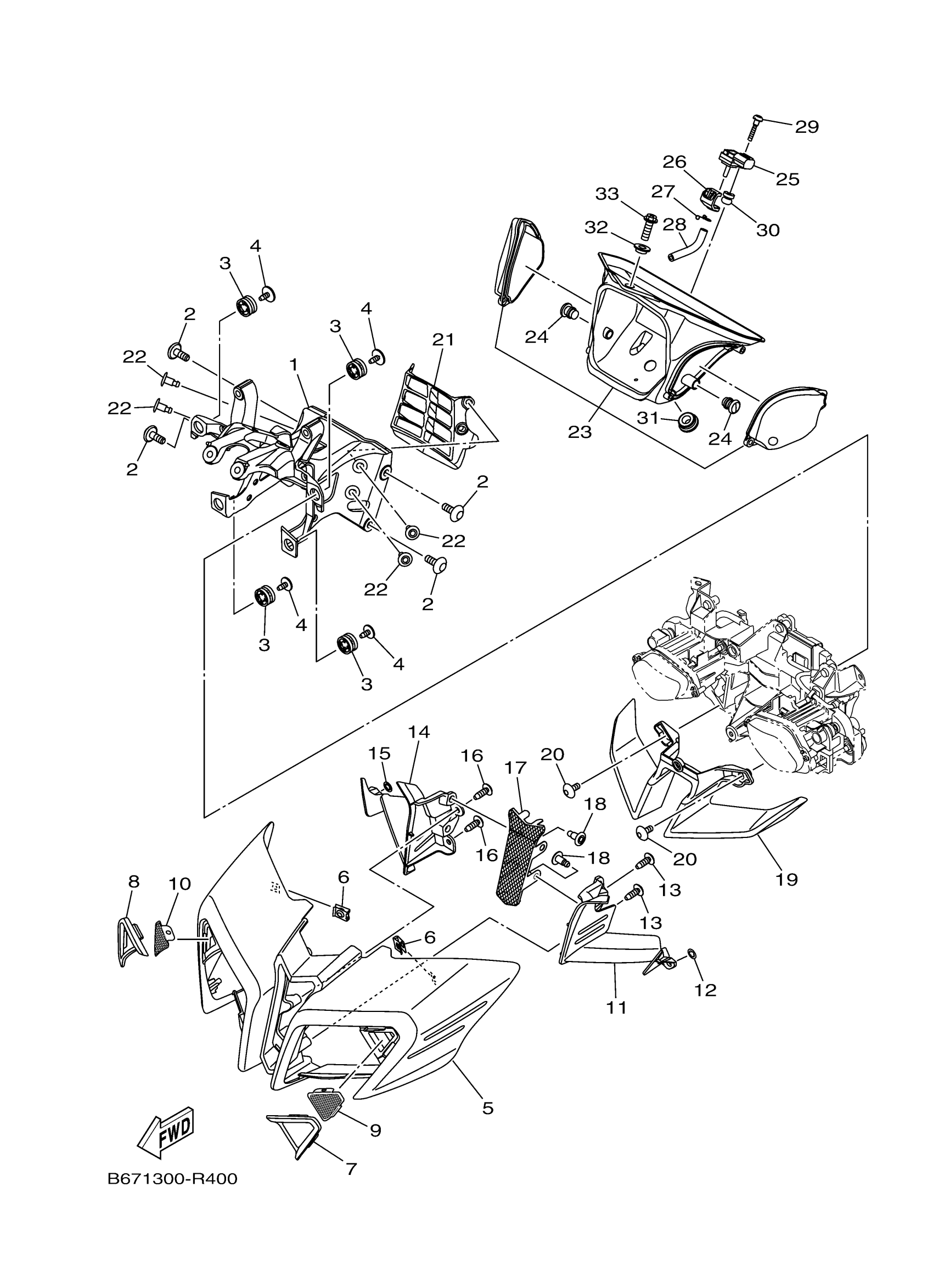

Yamaha MT10JL (MT10) B6790 2018 COWLING 1 Diagram

#

Description
Price

1

STAY 1

B67-28356-00-00

$498.99

2

BOLT

90111-06038-00

$4.29

3

DAMPER

4XV-83513-00-00

$7.99

4

SCREW, TAPPING

90164-05001-00

$8.49

5

COVER, HEADLIGHT 1

B67-2838D-00-P1

Unavailable

6

NUT, SPRING(1YT)

90183-05042-00

$5.60

7

PLATE 1

B67-28396-00-00

$8.49

8

PLATE 2

B67-28397-00-00

$8.49

9

PLATE 3

B67-28497-00-00

Unavailable

10

PLATE,4

B67-2846H-00-00

Unavailable

11

PANEL, INNER 1

B67-2836K-00-00

$13.99

12

NUT, SPRING (6E5)

90183-05M02-00

$0.33

13

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

14

PANEL, INNER 2

B67-2836L-00-00

Unavailable

15

NUT, SPRING (6E5)

90183-05M02-00

$0.33

16

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

17

GRILL, AIR INTAKE 3

B67-2837T-00-00

Unavailable

18

RIVET

90269-06019-00

Unavailable

19

PLATE, FRONT

B67-28361-00-P0

Unavailable

20

BOLT

90111-05011-00

Unavailable

21

DUCT 2

B67-2838R-00-00

Unavailable

22

RIVET

90269-06019-00

Unavailable

23

DUCT 4

B67-2838U-01-00

Unavailable

24

PLUG

90338-08009-00

Unavailable

25

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

26

DAMPER

2CR-28372-00-00

Unavailable

27

CLIP (16G)

90467-08021-00

Unavailable

28

HOSE

90445-08028-00

Unavailable

29

BOLT

90109-04001-00

Unavailable

30

NUT

90179-04003-00

Unavailable

31

GROMMET(4FU)

90480-13567-00

Unavailable

32

COLLAR

90387-06130-00

Unavailable

33

BOLT, FLANGE

95022-06016-00

Unavailable
