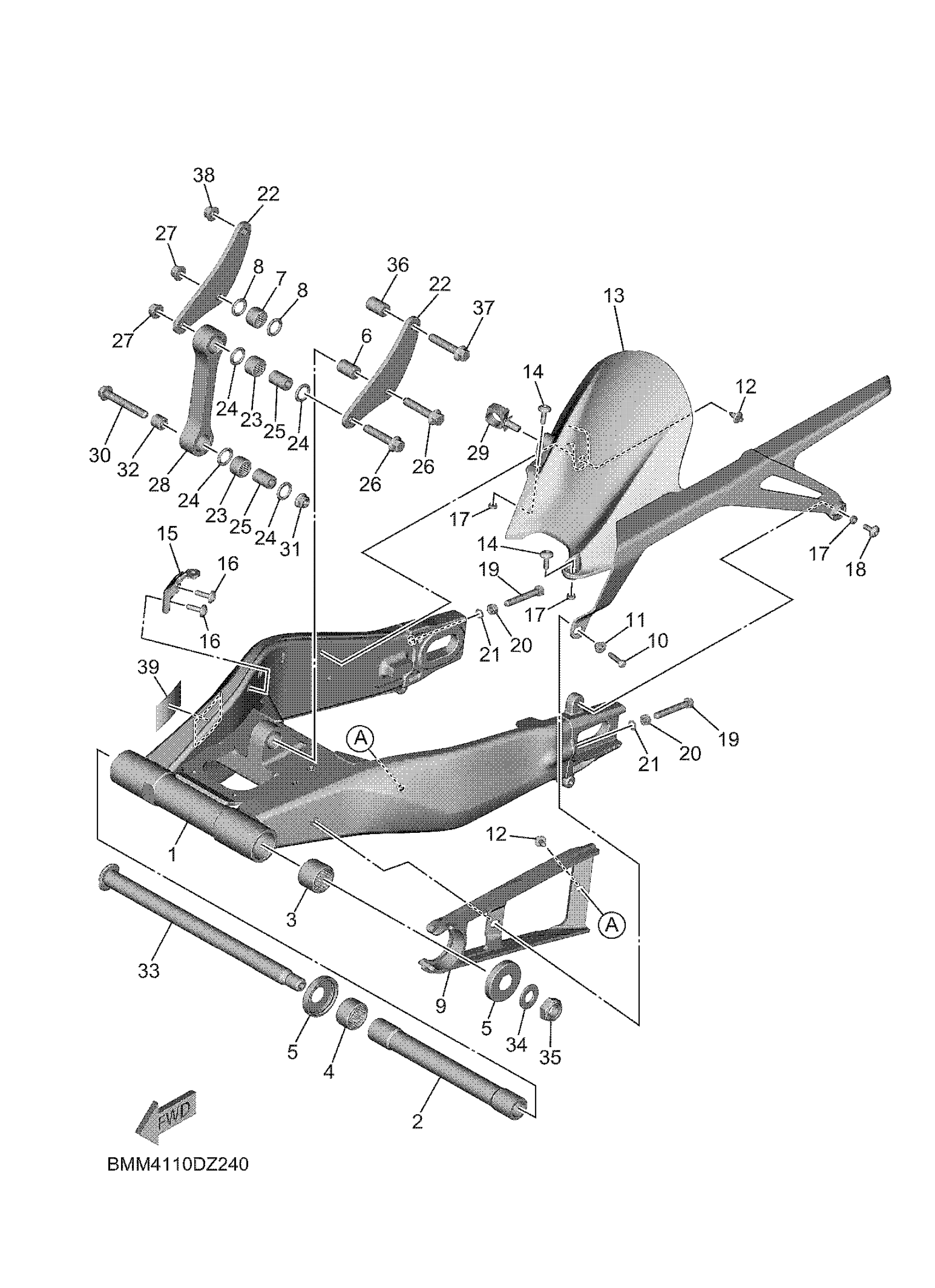

Yamaha MT09SPSS (MT09 SP) BMMG 2025 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
BAM-22110-10-00
Unavailable
2
COLLAR
90387-22037-00
Unavailable
13
REAR FENDER COMP.
B7N-21650-01-00
Unavailable
17
COLLAR
90387-06106-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-06151-00
Unavailable
19
BOLT
90101-08013-00
Unavailable
20
NUT
95302-08600-00
Unavailable
21
WASHER, PLATE
90201-08052-00
Unavailable
22
ARM, RELAY
BME-2217A-00-00
Unavailable
26
BOLT, FLANGE
90105-10030-00
Unavailable
27
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
28
ARM 1
BME-2217M-00-00
Unavailable
29
CLAMP
90464-20009-00
Unavailable
30
BOLT, FLANGE
90105-10211-00
Unavailable
31
NUT, S/L FLANGE
95602-10200-00
Unavailable
32
COLLAR
90387-10043-00
Unavailable
33
SHAFT, PIVOT
B7N-22141-00-00
Unavailable
34
WASHER, PLATE
90201-18013-00
Unavailable
35
NUT, SELF-LOCKING
90185-18009-00
Unavailable
36
COLLAR
90387-10125-00
Unavailable
37
BOLT, FLANGE
90105-10030-00
Unavailable
38
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
39
LABEL, TIRE
14B-21668-01-00
Unavailable
