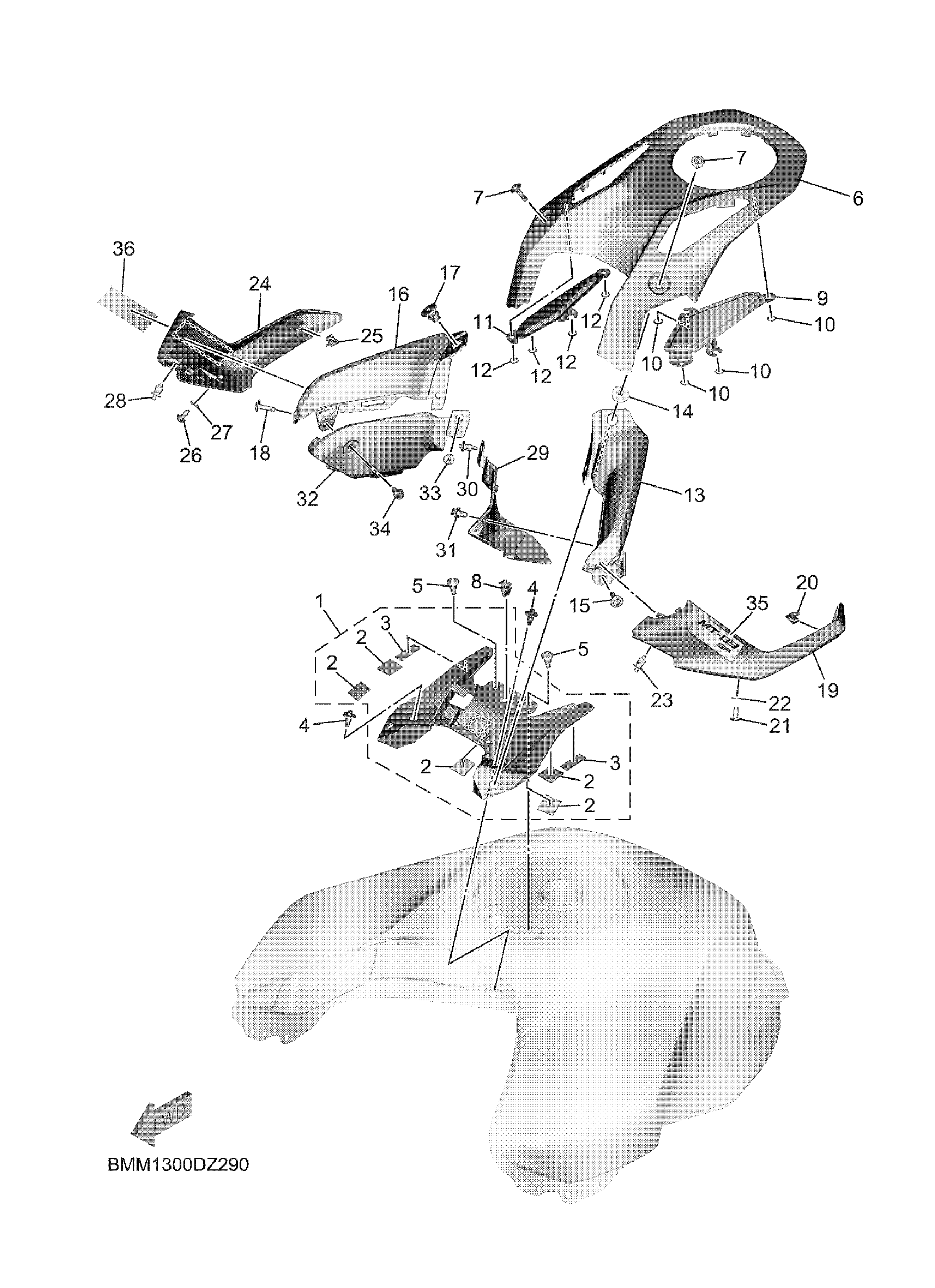

Yamaha MT09SPSS (MT09 SP) BMMG 2025 FUEL TANK 4 Diagram

#

Description
Price

1

PROTECTOR, FUEL TA

BME-24141-00-00

$43.99

2

DAMPER, PLATE

90520-02009-00

$1.01

3

DAMPER, PLATE

90520-02014-00

$1.28

4

RIVET(8BE)

90269-07071-00

$2.55

5

BOLT

90111-05020-00

$4.24

6

COVER, TANK

BME-241B1-00-P0

$78.99

7

BOLT,HEX. SOCKET BUTTON

90111-05063-00

$3.50

8

CLAMP

90464-07018-00

$0.65

9

GRILL, AIR OUTLET

BME-2837V-00-00

$55.99

10

NUT, SPRING (6E5)

90183-05M02-00

$0.33

11

GRILL, AIR OUTLET

BME-2837W-00-00

$57.99

12

NUT, SPRING (6E5)

90183-05M02-00

$0.33

13

MOLE, FUEL TANK 1

BME-2418B-00-00

$13.99

14

NUT(1UX)

90179-05525-00

$8.49

15

BOLT,HEX. SOCKET BUTTON

90111-05063-00

$3.50

16

MOLE, FUEL TANK 2

BME-2419B-00-00

Unavailable

17

NUT(1UX)

90179-05525-00

$8.49

18

BOLT,HEX. SOCKET BUTTON

90111-05063-00

$3.50

19

SCOOP, AIR 1

BME-2137W-00-P1

Unavailable

20

CLIP

90468-040A0-00

Unavailable

21

SCREW, TAPPING

90167-05079-00

Unavailable

22

. WASHER, PLATE

90202-05088-00

Unavailable

23

RIVET

90269-06008-00

Unavailable

24

SCOOP, AIR 2

BME-2137X-00-P1

Unavailable

25

CLIP

90468-040A0-00

Unavailable

26

SCREW, TAPPING

90167-05079-00

Unavailable

27

. WASHER, PLATE

90202-05088-00

Unavailable

28

RIVET

90269-06008-00

Unavailable

29

PANEL, INNER 1

BMM-2836K-00-00

Unavailable

30

RIVET

90269-06008-00

Unavailable

31

RIVET

90269-06018-00

Unavailable

32

PANEL, INNER 2

BME-2836L-00-00

Unavailable

33

RIVET

90269-06008-00

Unavailable

34

RIVET

90269-06018-00

Unavailable

35

EMBLEM

BMM-21737-00-00

Unavailable

36

EMBLEM

BMM-21737-00-00

Unavailable
