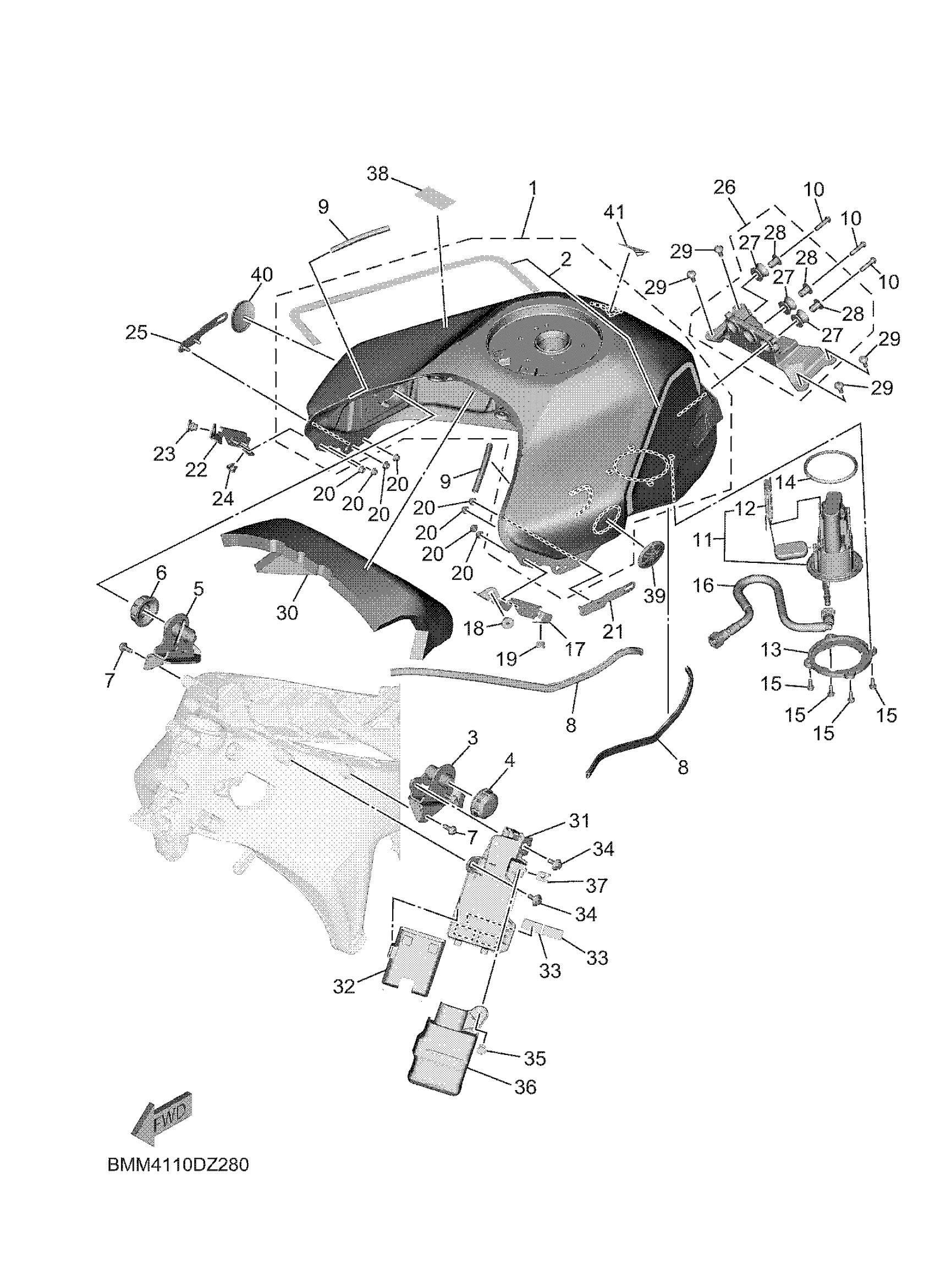

Yamaha MT09SPSS (MT09 SP) BMMG 2025 FUEL TANK Diagram
#
4
DAMPER, LOCATING 1
BME-24181-00-00
Unavailable
5
BRACKET, FUEL TANK
BME-24192-00-00
Unavailable
6
DAMPER, LOCATING 1
BME-24181-00-00
Unavailable
12
SENDER
1RC-85752-10-00
Unavailable
13
BRACKET, FUEL PUMP
1RC-24491-00-00
Unavailable
16
PIPE, FUEL 1
B7N-13971-00-00
Unavailable
17
PLATE, FITTING
BME-2411F-00-00
Unavailable
18
NUT(1UX)
90179-05525-00
Unavailable
19
GROMMET
2RP-21719-00-00
Unavailable
20
NUT, FLANGE
95702-05500-00
Unavailable
21
STAY, RR. LH.
BME-2412J-00-00
Unavailable
22
HOOK TANK FITTING
BME-2411L-00-00
Unavailable
23
NUT(1UX)
90179-05525-00
Unavailable
24
GROMMET
2RP-21719-00-00
Unavailable
25
STAY, RR. RH.
BME-2412K-00-00
Unavailable
26
TANK BRACKET ASSY
BME-24105-00-00
Unavailable
27
GROMMET
BME-24339-00-00
Unavailable
28
COLLAR
90387-06136-00
Unavailable
29
BOLT
90111-06029-00
Unavailable
30
DAMPER, PLATE 1
BME-2414H-00-00
Unavailable
31
BRACKET 2
BMM-2172L-01-00
Unavailable
32
BAND
BMM-85546-00-00
Unavailable
33
DAMPER, PLATE
90520-04015-00
Unavailable
34
BOLT(3KJ)
90109-063F1-00
Unavailable
35
BOLT, WITH WASHER
90119-06156-00
Unavailable
36
COVER 1
BMM-8A8C1-00-00
Unavailable
37
NUT, SPRING(4ES)
90183-06069-00
Unavailable
38
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
39
EMBLEM
BME-2413B-01-00
Unavailable
40
EMBLEM
BME-2414B-01-00
Unavailable
41
EMBLEM 1
B67-24161-20-00
Unavailable
