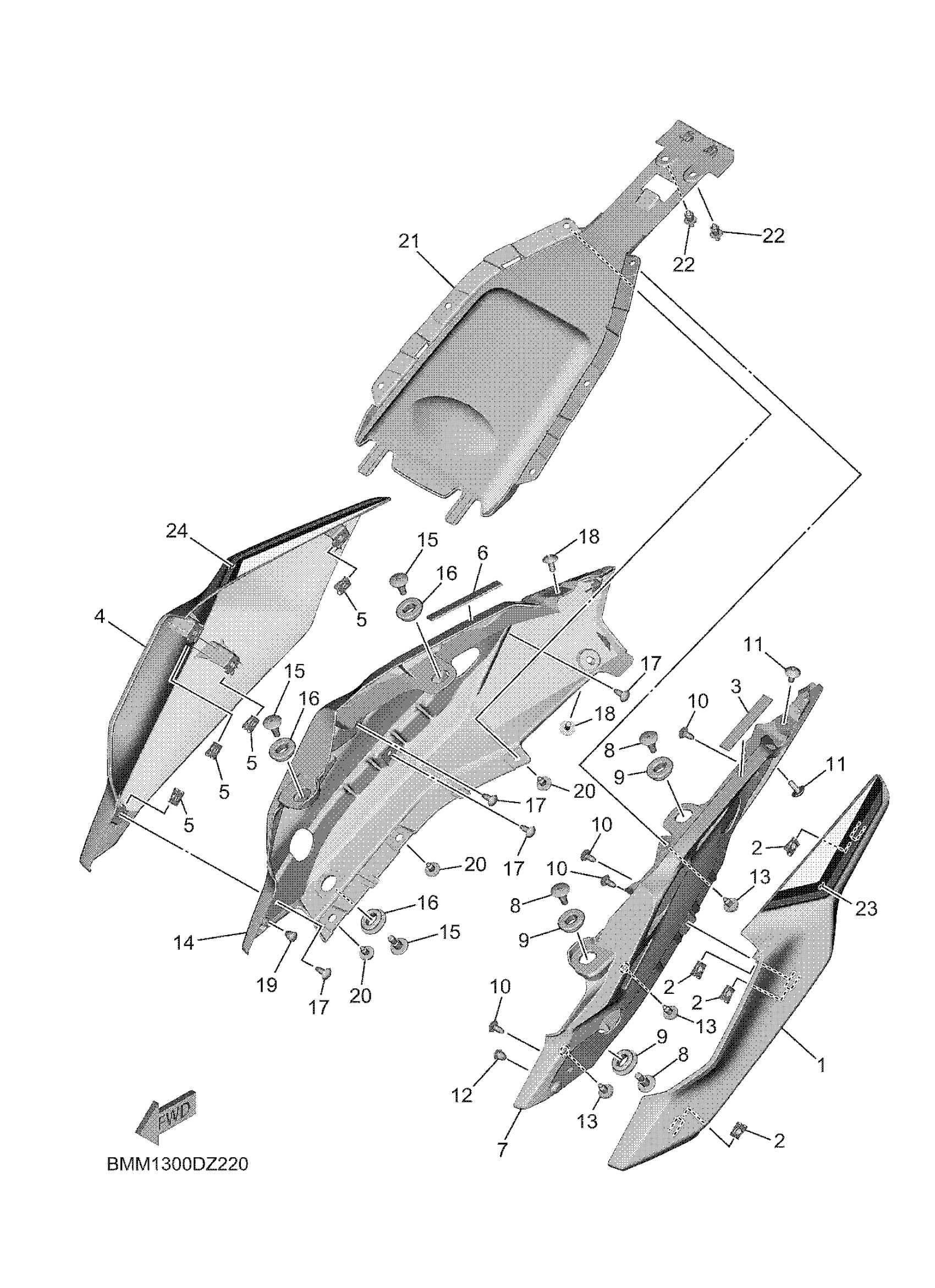

Yamaha MT09SPRS (MT09 SP) BMM4 2024 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BME-21711-00-P3

Unavailable

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

DAMPER, PLATE

90520-02011-00

Unavailable

4

COVER, SIDE 2

BME-21721-00-P3

Unavailable

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

DAMPER, PLATE

90520-02011-00

Unavailable

7

COVER, SIDE 3

BME-21731-00-00

Unavailable

8

BOLT

90109-06336-00

$2.07

9

GROMMET(4BH)

90480-01559-00

$5.60

10

SCREW, TRUSS TAP.

97707-50012-00

$4.63

11

BOLT

90111-05002-00

$7.49

12

PLUG(1NL)

90338-07180-00

$7.49

13

RIVET

90269-06081-00

$7.49

14

COVER, SIDE 4

BME-21741-00-00

Unavailable

15

BOLT

90109-06336-00

$2.07

16

GROMMET(4BH)

90480-01559-00

$5.60

17

SCREW, TRUSS TAP.

97707-50012-00

$4.63

18

BOLT

90111-05002-00

$7.49

19

PLUG(1NL)

90338-07180-00

$7.49

20

RIVET

90269-06081-00

$7.49

21

COVER, REAR FENDER

BME-21651-00-00

Unavailable

22

RIVET

90269-06008-00

Unavailable

23

GRAPHIC 1

BMM-2173E-00-00

Unavailable

24

GRAPHIC 2

BMM-2173F-00-00

Unavailable
