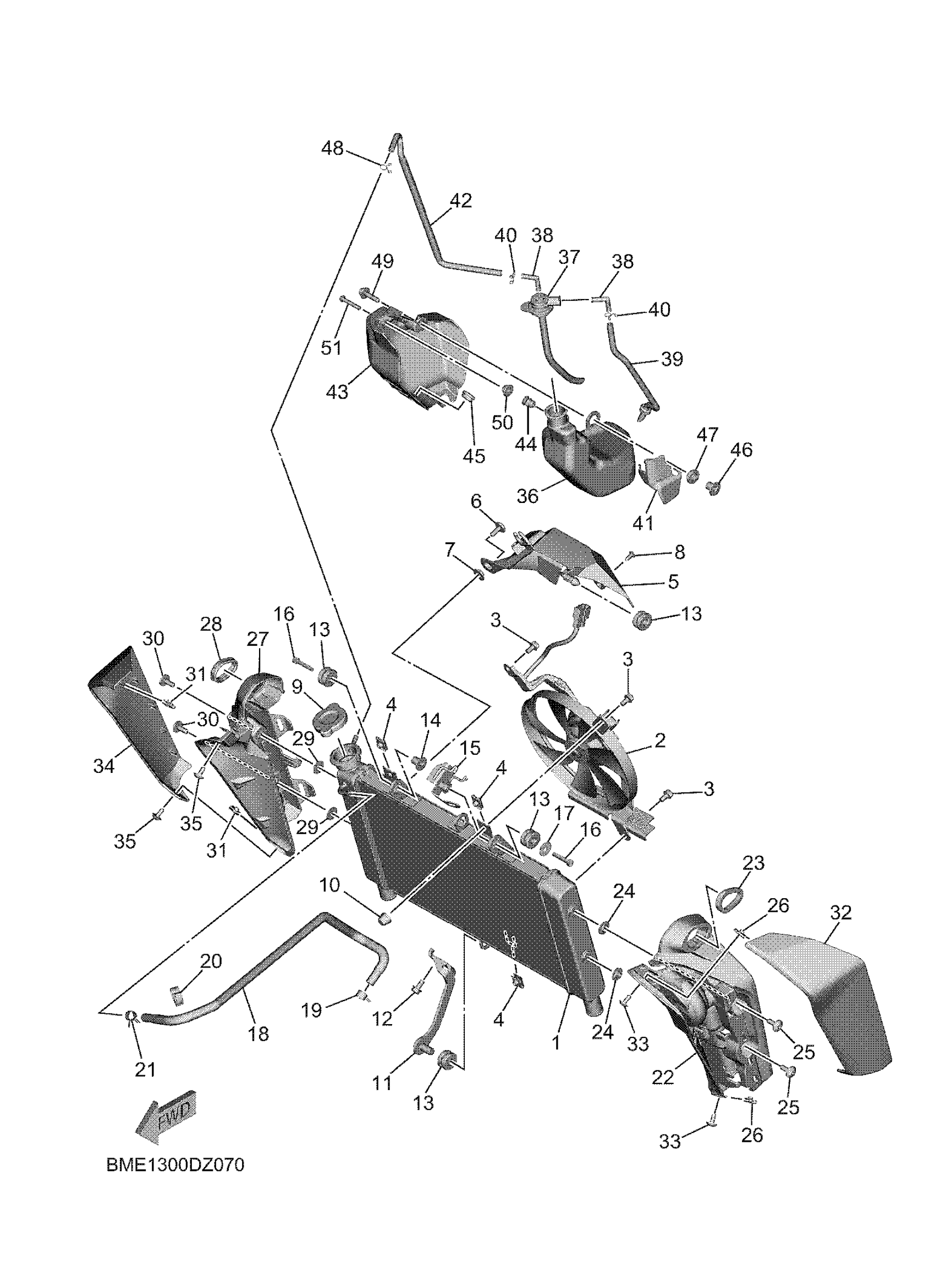

Yamaha MT09SPRS (MT09 SP) BMM4 2024 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

BME-12461-00-00

$301.99

2

BLOWER ASSY

BME-12405-01-00

$344.99

3

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

4

NUT 1

5YP-E2671-00-00

$4.21

5

COVER RADIATOR

B7N-12467-00-00

Unavailable

6

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

7

COLLAR (3L1)

90387-07717-00

$8.49

8

RIVET

90269-05005-00

Unavailable

9

CAP, RADIATOR

5SL-12462-01-00

$29.99

10

CAP, GREASE NIPPLE

663-45119-01-00

$2.24

11

STAY 2

B7N-12638-01-00

$21.99

12

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$8.49

13

GROMMET (29L)

90480-15363-00

$8.49

14

COLLAR

90387-06158-00

$8.49

15

GUIDE, CABLE 2

BME-26132-00-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

17

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

18

HOSE 1

B7N-1243A-00-00

Unavailable

19

CLIP (3G0)

90467-10039-00

Unavailable

20

CLAMP

90464-16003-00

Unavailable

21

CLIP (3G0)

90467-10039-00

Unavailable

22

BRACKET 1

BME-2175T-00-00

Unavailable

23

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

24

COLLAR

90387-06382-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

26

NUT, SPRING

90183-050A6-00

Unavailable

27

BRACKET 2

BME-2175U-00-00

Unavailable

28

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

29

COLLAR

90387-06382-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

31

NUT, SPRING

90183-050A6-00

Unavailable

32

COVER, SIDE 5

BME-2171E-00-00

Unavailable

33

BOLT

90111-05002-00

Unavailable

34

COVER, SIDE 6

BME-2171X-00-00

Unavailable

35

BOLT

90111-05002-00

Unavailable

36

TANK, RECOVERY

1RC-21871-00-00

Unavailable

37

CAP

B7N-21875-00-00

Unavailable

38

ELBOW

1RC-21828-00-00

Unavailable

39

PIPE, BREATHER

B7N-21826-00-00

Unavailable

40

CLIP (16G)

90467-08021-00

Unavailable

41

PROTECTOR 1

B7N-22825-00-00

Unavailable

42

PIPE 1

B7N-21816-00-00

Unavailable

43

COVER

1RC-2172W-00-00

Unavailable

44

NUT(1KT)

90179-05523-00

Unavailable

45

GROMMET (420)

90480-14153-00

Unavailable

46

COLLAR

90387-06285-00

Unavailable

47

COLLAR

1RC-21749-00-00

Unavailable

48

CLIP (16G)

90467-08021-00

Unavailable

49

BOLT, HEXAGON SOCK

90110-06434-00

Unavailable

50

COLLAR

1RC-21748-00-00

Unavailable

51

BOLT, BUTTON HEAD

92012-05030-00

Unavailable
