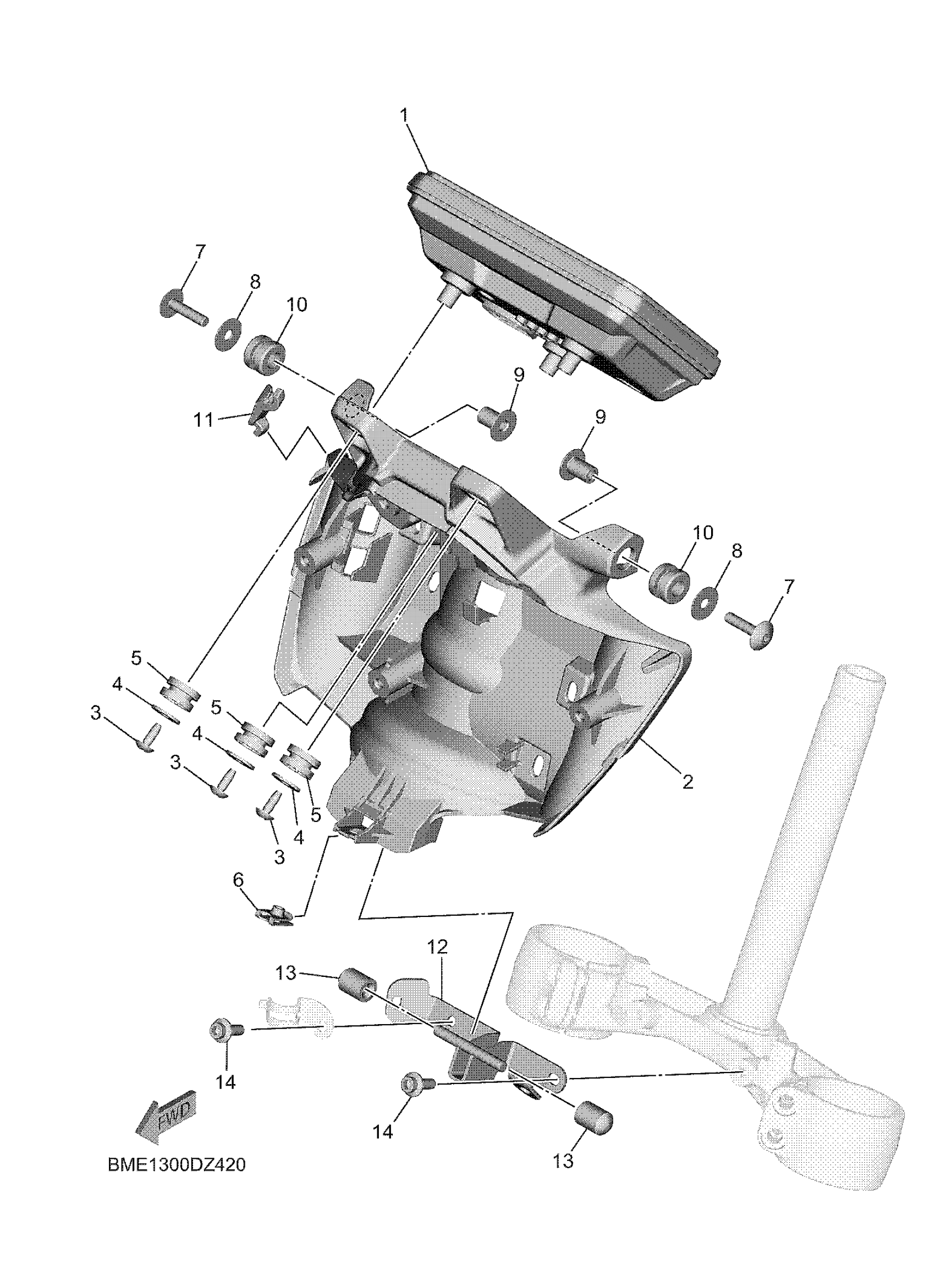

Yamaha MT09SPRS (MT09 SP) BMM4 2024 METER Diagram

#

Description
Price

1

CONNECTED METER ASSY.

BMM-83220-21-00

Unavailable

2

BRACKET, METER

BME-83519-00-00

$84.99

3

SCREW, ROUND TAPPING

90160-05017-00

$2.17

4

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

5

DAMPER

4XV-83513-00-00

$7.99

6

NUT, SPRING(4ES)

90183-06069-00

Unavailable

7

BOLTHEX. SOCKET BUTTON

90111-06189-00

$2.34

8

WASHER, PLATE

90201-06095-00

$8.49

9

COLLAR

90387-06136-00

$7.49

10

GROMMET 839774310000

90480-14023-00

$7.49

11

CAP

BME-83365-00-00

$7.49

12

STAY, SETTING

BME-8431R-00-00

Unavailable

13

DAMPER

1WS-84527-00-00

$2.29

14

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable
