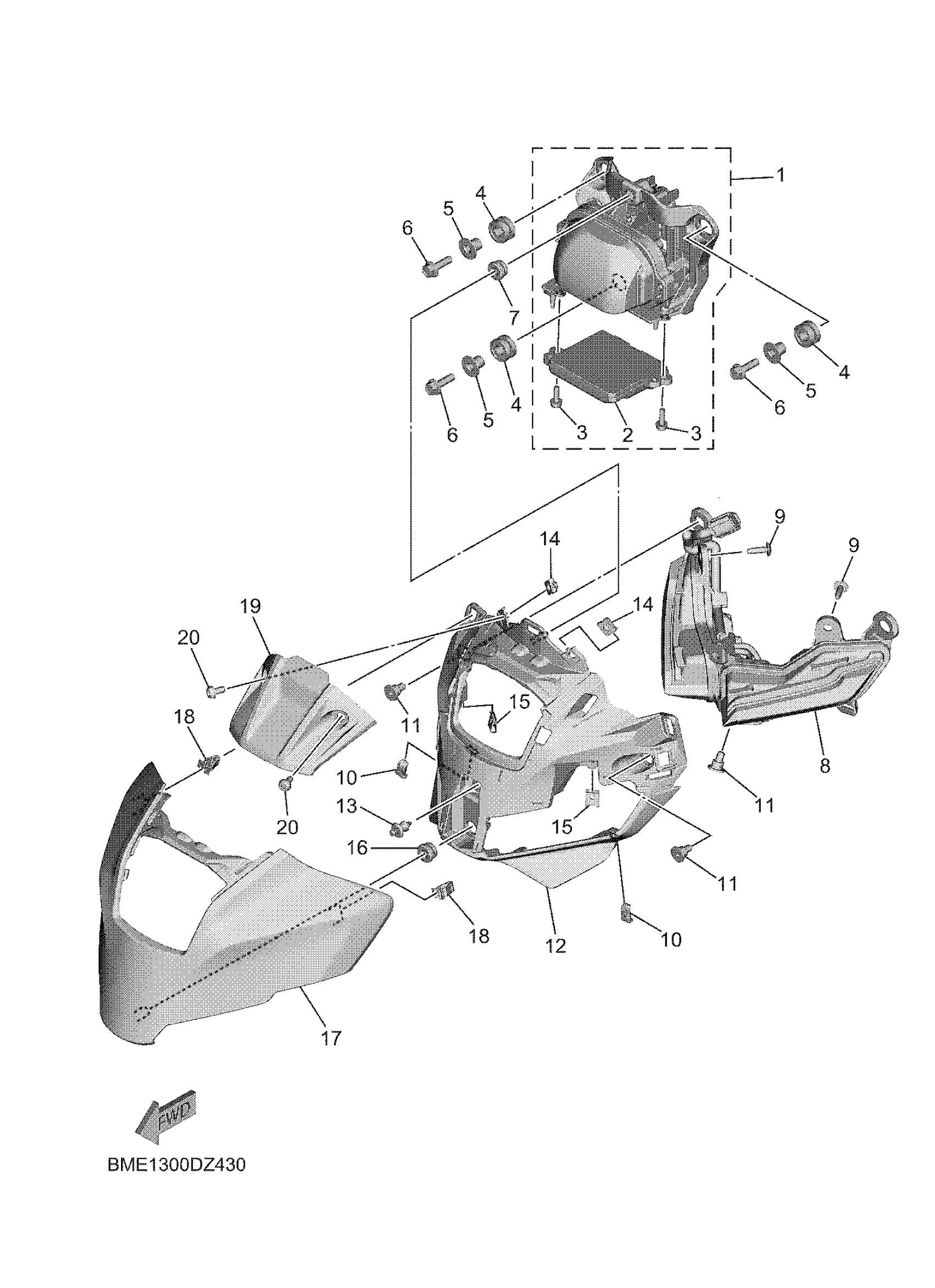

Yamaha MT09SPRS (MT09 SP) BMM4 2024 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

BME-84300-00-00

$362.99

2

LIGHT CONTROL UNIT

BME-85490-00-00

$320.99

3

SCREW, SPECIAL

2PW-84192-00-00

$1.98

4

DAMPER

4XV-83513-00-00

$7.99

5

COLLAR

90387-06161-00

$8.49

6

BOLT, FLANGE

95817-06020-00

$3.81

7

GROMMET

90480-10003-00

$8.49

8

PILOT LIGHT ASSY 1

BME-84301-00-00

$403.99

9

SCREW, TAPPING

97702-50016-00

$2.39

10

CLAMP

90464-04005-00

$4.41

11

BOLT

90109-06232-00

$5.60

12

COVER 1

BME-84369-00-00

$31.99

13

RIVET

90269-06008-00

$9.49

14

NUT, SPRING(3GM)

90183-05061-00

$5.60

15

NUT, SPRING(1YT)

90183-05042-00

$5.60

16

GROMMET

90480-10003-00

$8.49

17

COVER, OUTER 1

BME-23122-00-P3

Unavailable

18

CLAMP

90464-07018-00

Unavailable

19

COVER, METER

BME-83559-00-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable
