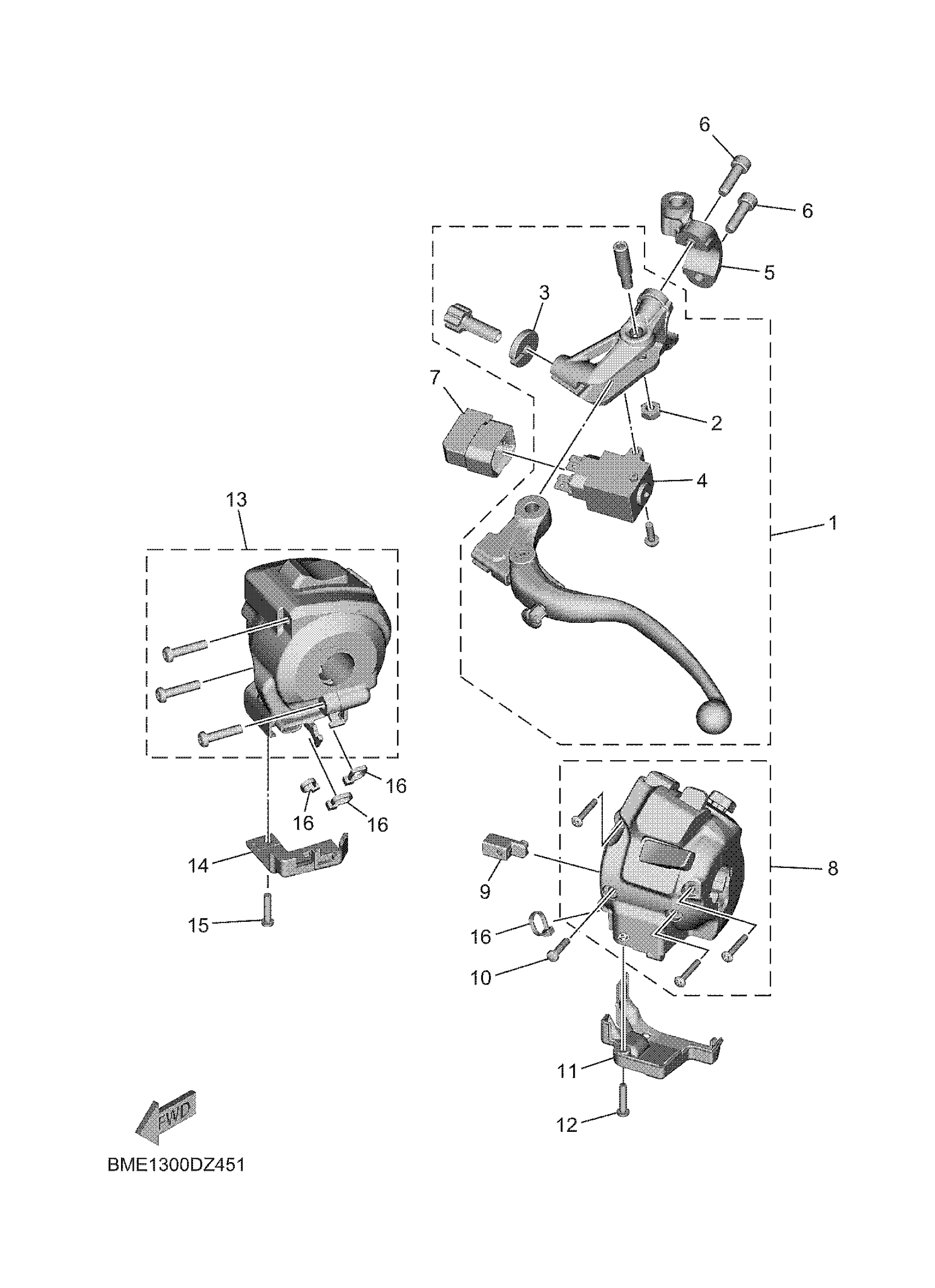

Yamaha MT09SPRS (MT09 SP) BMM4 2024 HANDLE SWITCH & LEVER Diagram

Description

Price

LEVER HOLDER ASSY (LEFT)

BME-82910-10-00

$158.99

NUT, SELF-LOCKING

95617-06100-00

$8.49

NUT

90179-08030-00

$5.49

SWITCH

BME-82917-00-00

Unavailable

BRACKET, MIRROR 1

BME-2629N-10-00

$25.99

BOLT,SOCKET HEAD

91314-06020-00

$1.49

COVER, SWITCH

BME-8291G-00-00

$11.49

SW., HANDLE LH

BME-8291L-00-00

$378.99

CLIP

BME-83525-00-00

$9.49

SCREW, PAN HEAD

98517-04016-00

$8.49

COVER 1

BME-8246B-00-00

$12.49

SCREW, PAN HEAD

98507-04018-00

$2.19

SW., HANDLE RH

BME-8291R-00-00

Unavailable

COVER 2

BME-8249A-00-00

$9.49

SCREW, PAN HEAD

98507-04018-00

$2.19

CLAMP

90465-10098-00

Unavailable
