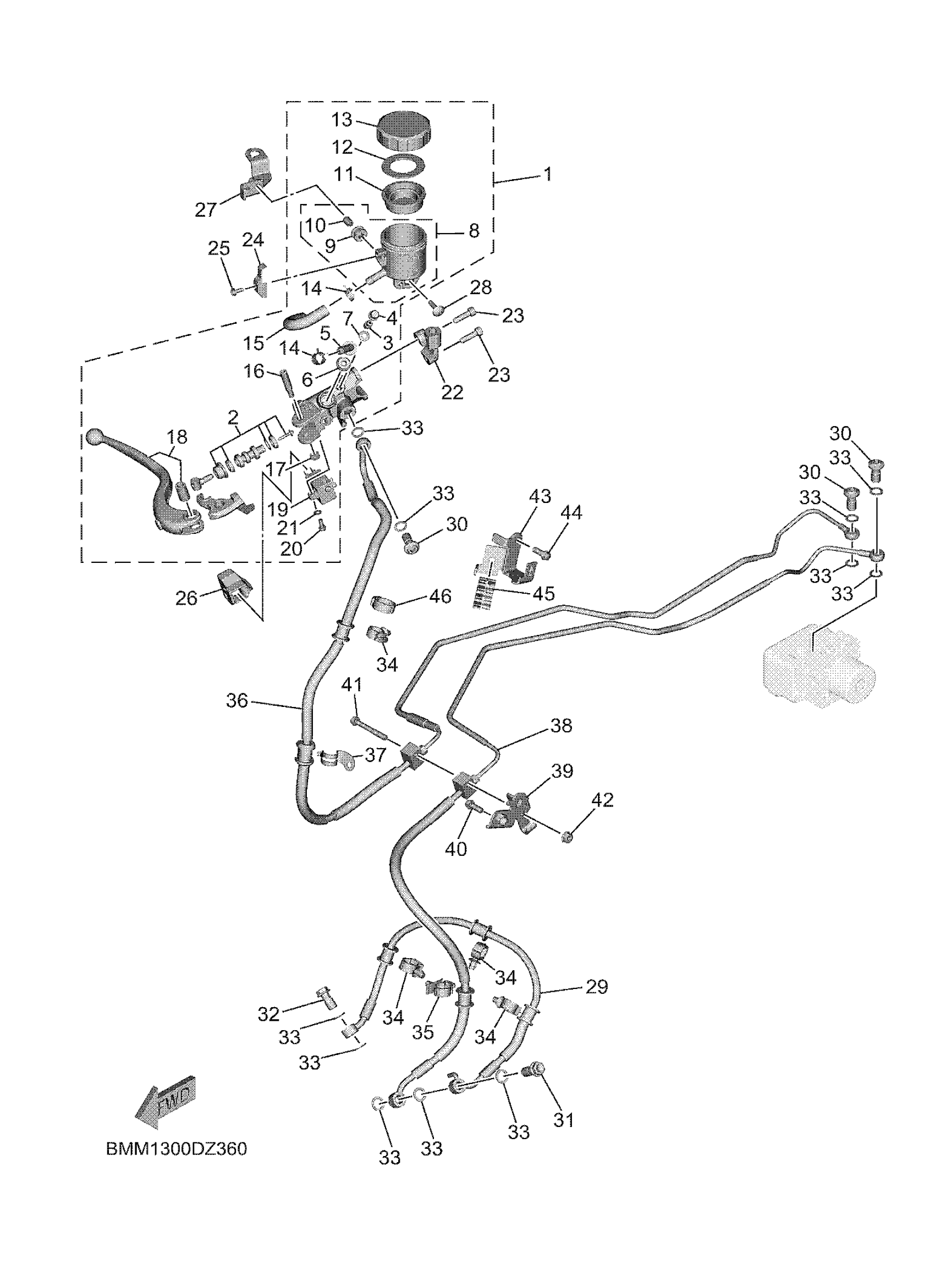

Yamaha MT09SPRS (MT09 SP) BMM4 2024 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER AS

BME-2583T-00-00

$333.99

2

MASTER CYLINDER SEAL KIT, FR.

B5Y-2580B-00-00

$49.99

3

SCREW, BLEED

3YK-25824-00-00

$8.99

4

CAP

3YK-25825-00-00

Unavailable

5

JOINT

B5Y-2582A-00-00

$4.72

6

O-RING

4BP-2585F-01-00

Unavailable

7

SEAL 1

5VY-25975-00-00

$2.29

8

TANK, RESERVOIR

BAM-25894-00-00

$63.99

9

GROMMET

5SL-26326-00-00

Unavailable

10

COLLAR

5SL-26277-00-00

Unavailable

11

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$32.99

12

BUSH,DIAPHRAGM

5VY-25855-00-00

$5.49

13

CAP, RESERVOIR

5VY-25852-00-00

$18.49

14

CLIP

90467-120A3-00

$7.49

15

HOSE, RESERVOIR

BEA-25895-00-00

Unavailable

16

BOLT, LEVER

B5Y-2589F-00-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

LEVER SET

BEB-W2616-00-00

Unavailable

19

FRONT STOP SWITCH

BME-83980-00-00

Unavailable

20

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

21

WASHER, PLAIN (646)

92990-04600-00

Unavailable

22

BRACKET, MASTER CYLINDER

B5Y-25867-10-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

24

HOLDER

5VY-2589G-00-00

Unavailable

25

SCREW

5VY-2589H-00-00

Unavailable

26

COVER, STOP SWITCH

BME-82549-00-00

Unavailable

27

STAY

BME-2629K-00-00

Unavailable

28

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

29

HOSE, BRAKE 1

BMM-25872-00-00

Unavailable

30

BOLT, UNION

90401-10172-00

Unavailable

31

BOLT, OIL 1

BMM-25877-10-00

Unavailable

32

BOLT, OIL 1

BMM-25877-00-00

Unavailable

33

GASKET

90430-10005-00

Unavailable

34

CLAMP

90464-18002-00

Unavailable

35

CLAMP

90464-14013-00

Unavailable

36

BRAKE HOSE ASSY

BME-2584A-00-00

Unavailable

37

HOLDER, BRAKE HOSE

BME-25875-00-00

Unavailable

38

HOSE, BRAKE

BMM-2584B-00-00

Unavailable

39

BRACKET, REFLECTOR

BME-85132-00-00

Unavailable

40

BOLT, FLANGE

95022-06016-00

Unavailable

41

BOLT, FLANGE

95022-06045-00

Unavailable

42

NUT, FLANGE

95702-06500-00

Unavailable

43

BRACKET

BME-2612E-00-00

Unavailable

44

BOLT, FLANGE

95022-06016-00

Unavailable

45

CLAMP

90464-07262-00

Unavailable

46

CLAMP

90464-16001-00

Unavailable
