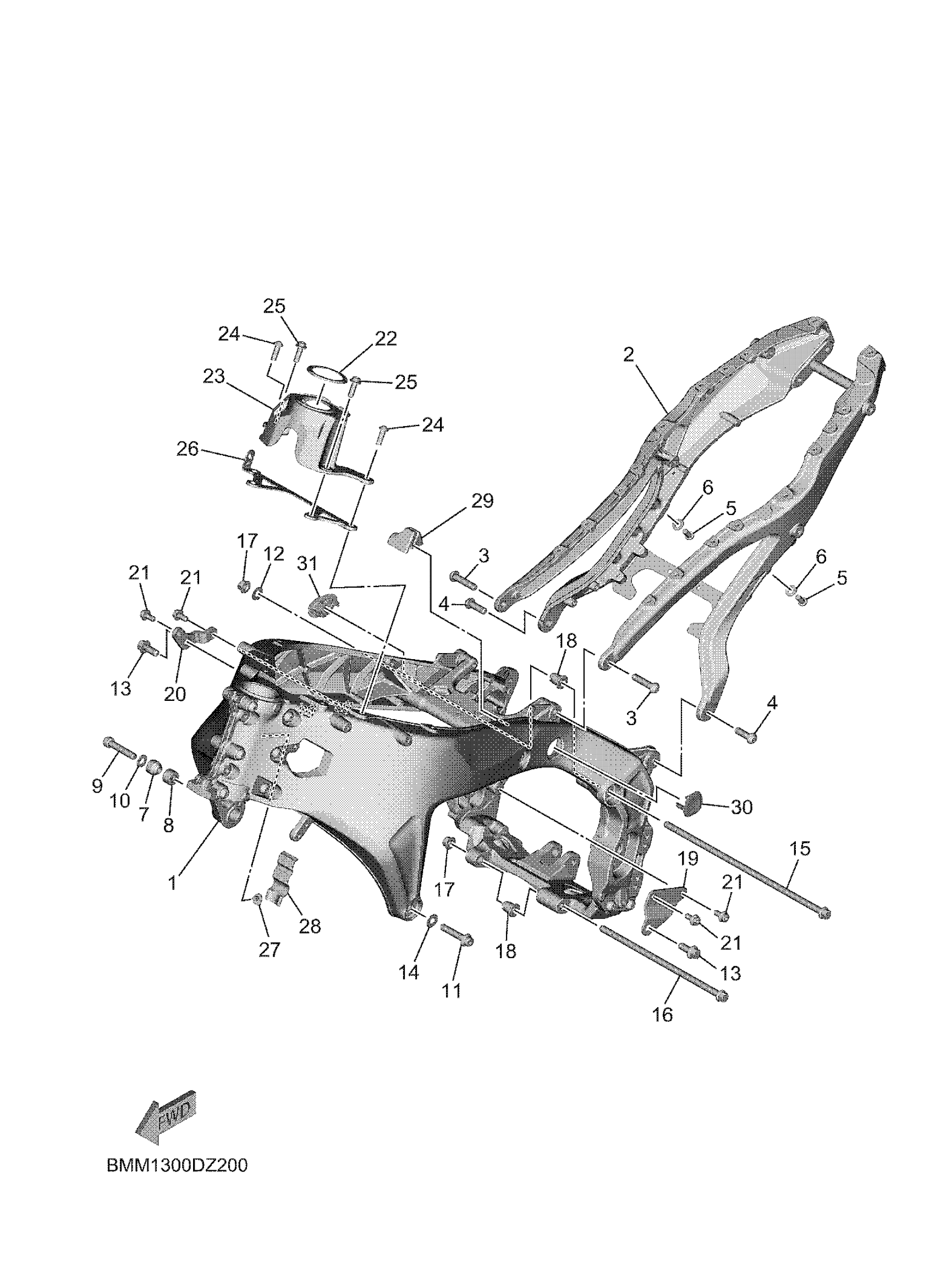

Yamaha MT09SPRS (MT09 SP) BMM4 2024 FRAME Diagram

#

Description
Price

1

FRAME SUB COMP.

BME-2111B-09-00

Unavailable

2

REAR FRAME COMP.

BME-21190-09-00

$893.99

3

SCREW

90149-10083-00

Unavailable

4

SCREW

90149-10082-00

Unavailable

5

BOLT, BUTTON

92017-08016-00

$5.60

6

WASHER(6TC)

92907-08200-00

$8.49

7

BOSS, ENGINE MOUNT

2C0-21414-00-00

$28.99

8

BOSS, ENGINE MOUNT

5VY-21424-00-00

$30.99

9

BOLT,SOCKET

91314-10050-00

$5.60

10

WASHER, PLATE

90201-10033-00

$8.49

11

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$4.41

12

WASHER PLATE

90201-10084-00

Unavailable

13

BOLT, FLANGE DEEP RECESS

95D37-10025-00

$1.96

14

WASHER, PLATE

90201-10075-00

$3.28

15

BOLT FLANGE

90105-10487-00

Unavailable

16

BOLT FLANGE

90105-10488-00

Unavailable

17

NUT(4KG)

90179-10658-00

Unavailable

18

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

19

STAY, ENGINE 1

B5U-21315-00-00

Unavailable

20

STAY, ENGINE 2

B5U-21316-00-00

Unavailable

21

BOLT(2KF)

90109-085E2-00

Unavailable

22

RING

BMM-8251J-00-00

Unavailable

23

STAY 1

BME-2137F-00-00

Unavailable

24

BOLT

90109-08247-00

Unavailable

25

91312-08030

91312-08030-00

Unavailable

26

STAY 2

BME-2137G-00-00

Unavailable

27

PLUG, BLIND

5VX-21289-00-00

Unavailable

28

DAMPER

1HP-H2176-01-00

Unavailable

29

COVER

B7N-2117F-00-00

Unavailable

30

COVER 9

BEA-2117X-00-00

Unavailable

31

COVER 10

BEA-2117Y-00-00

Unavailable
