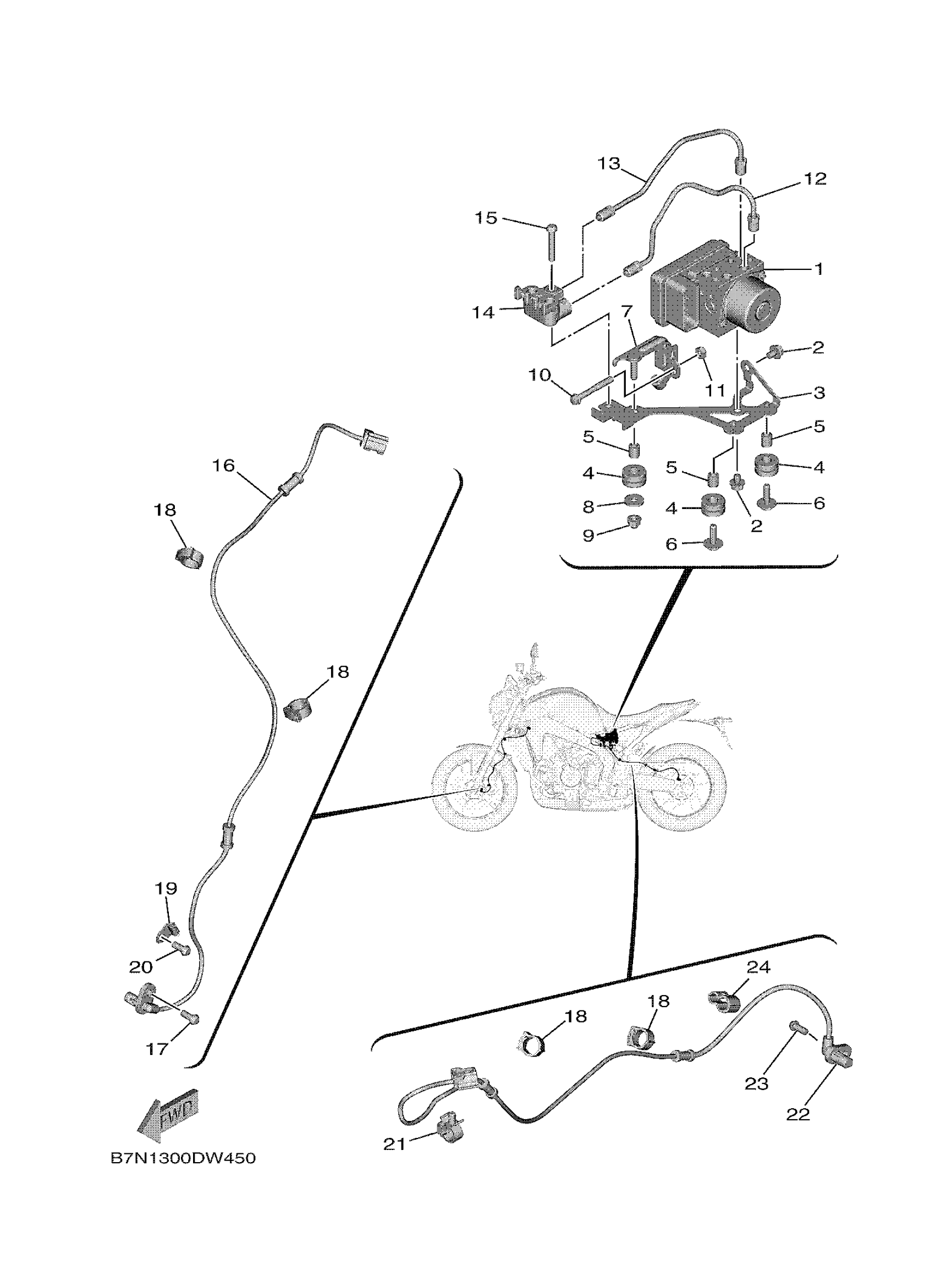

Yamaha MT09SPPS (MT09 SP) BAMK 2023 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASS

B7N-85930-09-00

$669.99

2

BOLT, FLANGE

95817-06008-00

$8.49

3

BRACKET, UNIT

B7N-85991-00-00

Unavailable

4

GROMET (3X3)

90480-14229-00

$8.49

5

COLLAR (J10)

90387-06026-00

$8.49

6

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

7

BRACKET

B7N-85542-00-00

Unavailable

8

WASHER, PLATE (8K2)

90201-06778-00

$4.46

9

NUT, CROWN(2GM)

90176-06065-00

$9.49

10

BOLT, SMALL FLANGE

95027-06045-00

$3.28

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

PIPE, BRAKE

B7N-25871-00-00

Unavailable

13

PIPE, BRAKE 2

B7N-25882-00-00

Unavailable

14

JOINT

B7N-25885-00-00

Unavailable

15

BOLT, BUTTON HEAD

92012-06035-00

$2.34

16

WHEEL SENSOR ASSY,

B7N-85970-00-00

Unavailable

17

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

18

CLAMP

90464-16003-00

Unavailable

19

HOLDER, CABLE

2CR-23317-00-00

Unavailable

20

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

21

CLAMP

90464-14013-00

Unavailable

22

WHEEL SENSOR ASSY,

B7N-85980-00-00

Unavailable

23

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

24

CLAMP(4GL)

90464-10233-00

Unavailable
