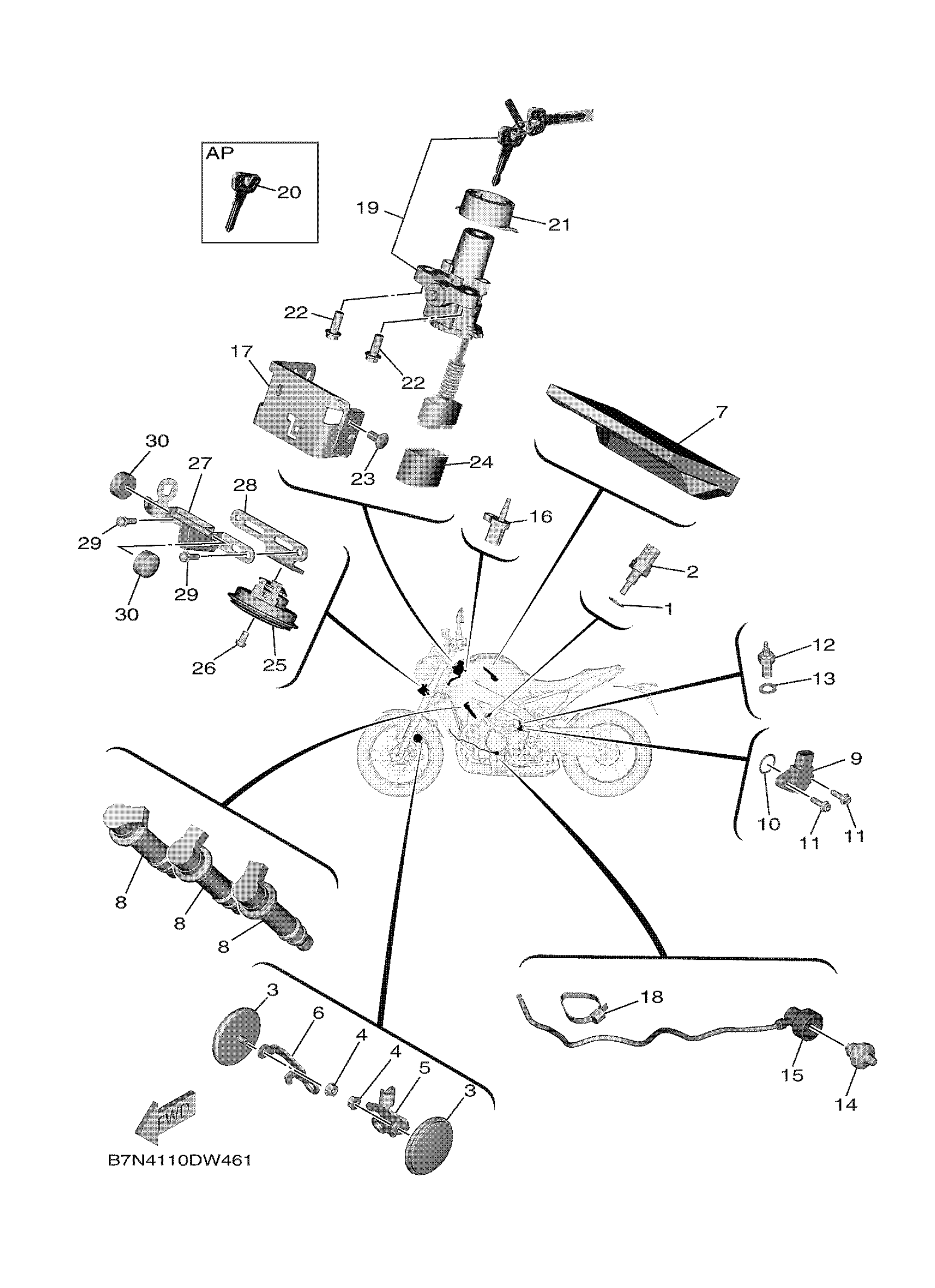

Yamaha MT09SPPS (MT09 SP) BAMK 2023 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

REFLECTOR, FRONT 1

4AG-85111-00-00

$15.49

4

NUT, FLANGE

95702-06500-00

$2.39

5

BRACKET, REFLECTOR

B7N-85112-00-00

Unavailable

6

BRACKET, REFLECTOR

B7N-85122-00-00

$9.49

7

ENGINE CONTROL UNIT ASSY

BAM-8591A-63-00

$774.99

8

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

9

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

10

O-RING

93210-17008-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

15

WIRE, SUB LEAD

B3L-82509-11-00

Unavailable

16

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

17

COVER, CONNECTOR

B7N-82599-01-00

Unavailable

18

CLAMP(4FM)

90464-15195-00

Unavailable

19

MAIN SWITCH STEERING LOCK

B7N-82501-11-00

Unavailable

20

BLANK KEY

4BH-82511-09-00

Unavailable

21

COVER, MAIN SWITCH

3P6-82568-00-00

Unavailable

22

BOLT, WASHER BASED(3JP)

90105-081A1-00

Unavailable

23

RIVET

90269-07015-00

Unavailable

24

PROTECTER, WIRE HARNESS

B7N-82589-01-00

Unavailable

25

HORN

B7N-83371-00-00

Unavailable

26

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

27

STAY, SETTING

B7N-8431R-00-00

Unavailable

28

BRACKET, HORN

B7N-23377-00-00

Unavailable

29

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

30

DAMPER

B7N-84527-00-00

Unavailable
