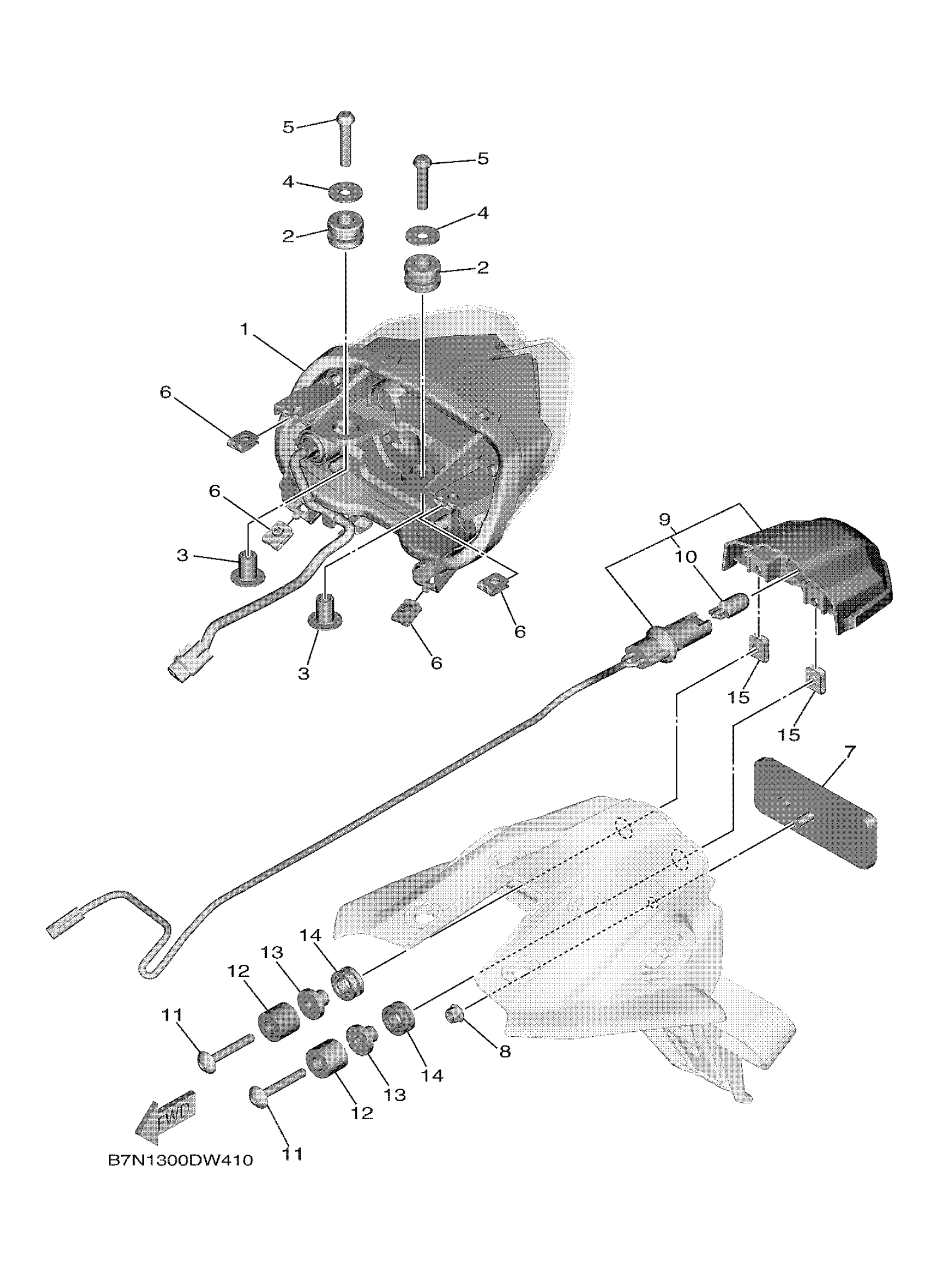

Yamaha MT09SPNS (MT09 SP) BAMB 2022 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

B7N-84700-00-00

$238.99

2

GROMMET 839774310000

90480-14023-00

$7.49

3

COLLAR

90387-06136-00

$7.49

4

WASHER PLATE 256216150000

90201-06062-00

$10.49

5

BOLT, BUTTON HEAD

92012-06030-00

$3.08

6

NUT, SPRING

90183-050A6-00

$8.49

7

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

8

NUT, S/L FLANGE

95607-05200-00

$9.49

9

LICENCE LIGHT UNIT ASSY

2PN-84745-02-00

Unavailable

10

BULB

4SV-84347-00-00

$8.99

11

BOLT

90111-05006-00

$7.49

12

COLLAR

90387-08125-00

Unavailable

13

COLLAR

90387-05044-00

$13.99

14

GROMMET

90480-14017-00

$4.72

15

NUT, SPRING

90183-050A6-00

$8.49
