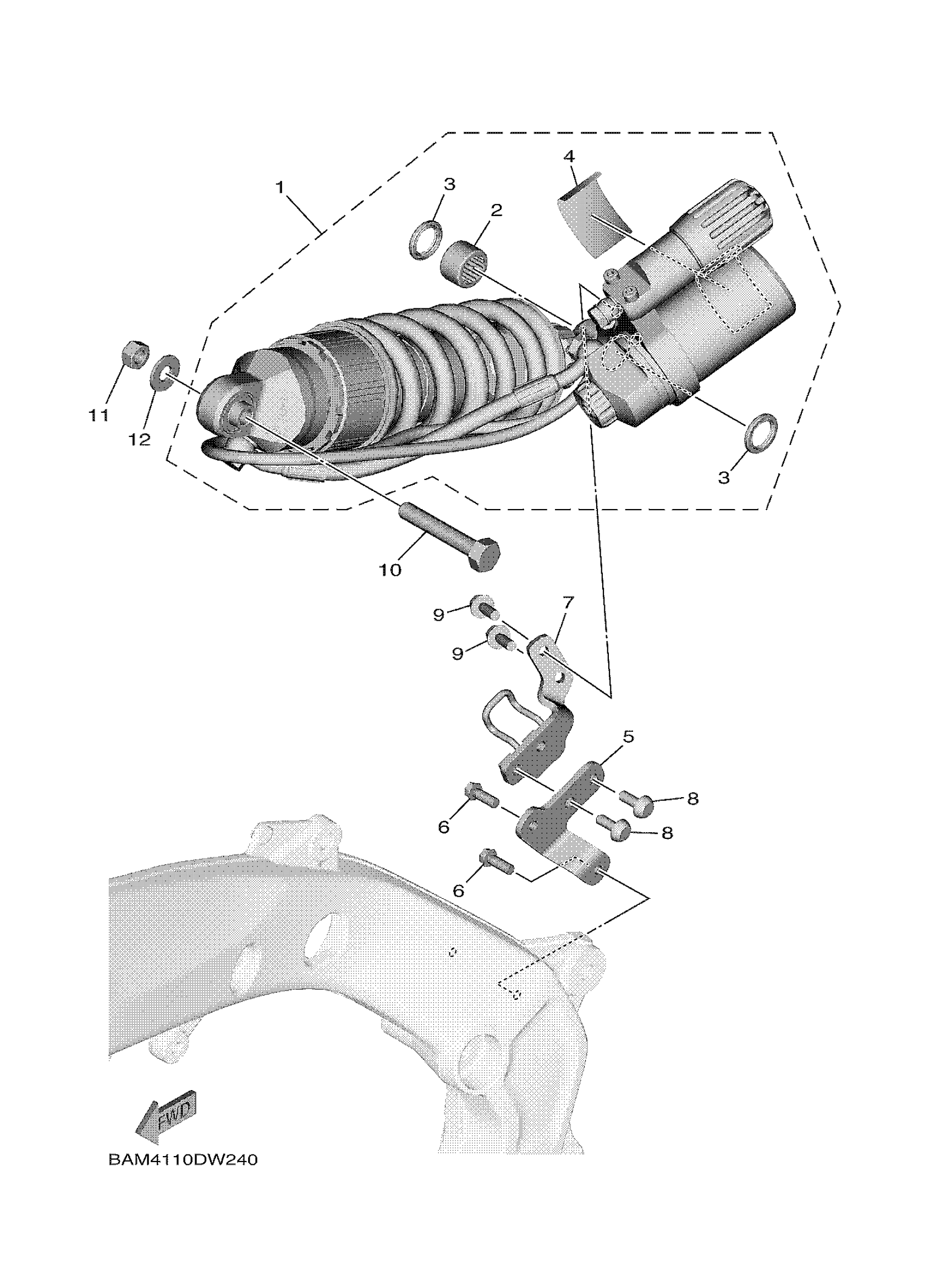

Yamaha MT09SPNS (MT09 SP) BAMB 2022 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

BAM-22210-29-00

Unavailable

2

BEARING

93315-31758-00

$32.40

3

OIL SEAL

93109-17071-00

$6.29

4

LABEL, WARNING

4AA-22259-80-00

$11.85

5

BRACKET 2

BAM-2216C-00-00

Unavailable

6

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

7

BRKT., 1

BAM-2216B-00-00

Unavailable

8

BOLT

90111-06029-00

$4.40

9

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

10

BOLT

90101-10042-00

$3.68

11

NUT, U FLANGE

95602-10100-00

$5.65

12

WASHER, PLATE(47X)

90201-101J1-00

$5.75
