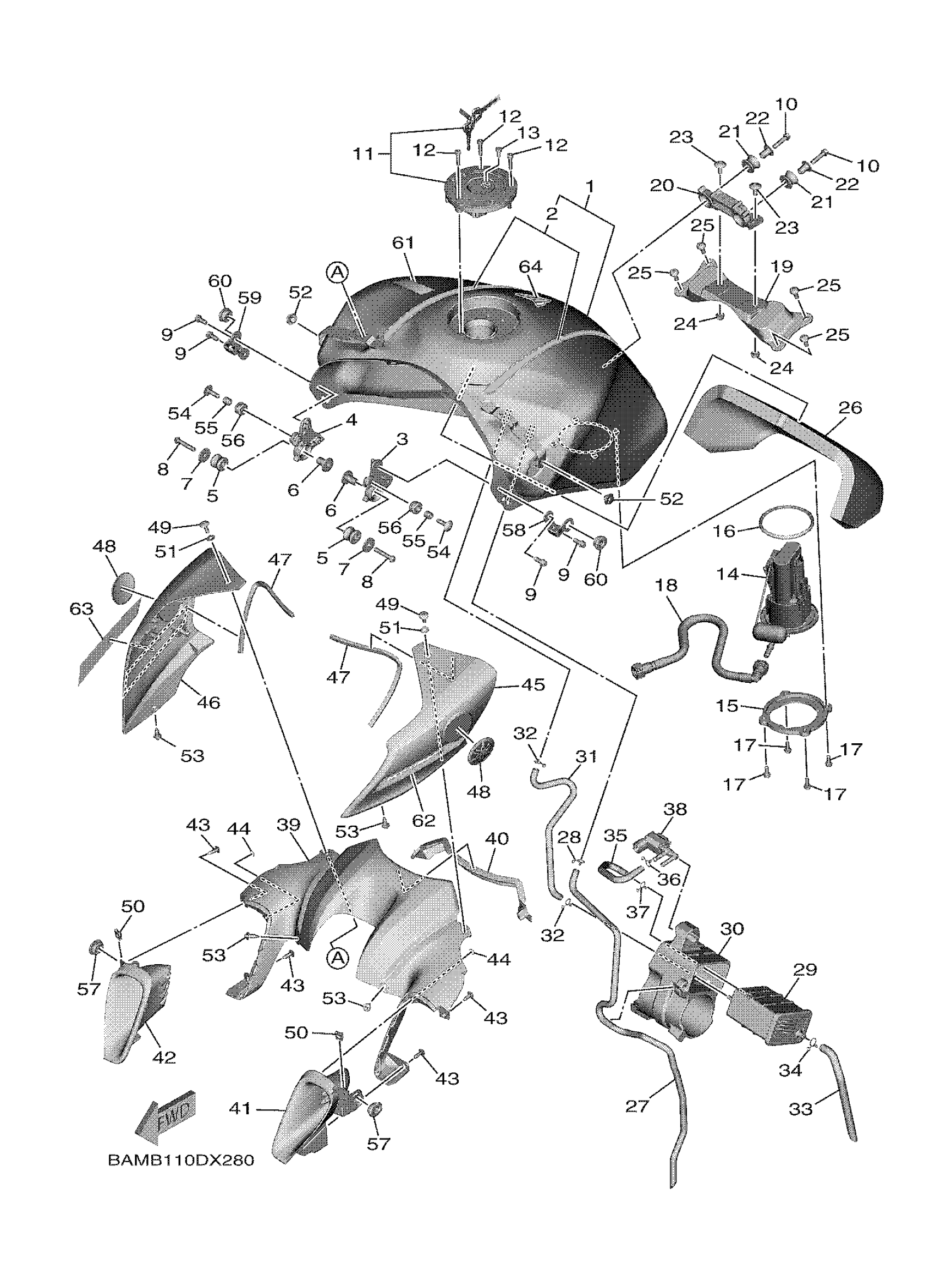

Yamaha MT09SPNS (MT09 SP) BAMB 2022 FUEL TANK 2 (FOR CAL) Diagram

#

Description
Price

1

FUEL TANK COMP.

B7N-Y2410-00-04

$750.99

2

GRAPHIC SET

BAM-24240-00-00

Unavailable

3

BRACKET, FUEL TANK

B7N-24191-00-00

Unavailable

4

BRACKET, FUEL TANK

B7N-24192-00-00

$33.99

5

GROMMET

90480-18008-00

$3.71

6

COLLAR

90387-06266-00

$4.61

7

WASHER PLATE 137241870000

90201-06072-00

$9.49

8

BOLT, BUTTON HEAD

92012-06035-00

$2.34

9

BOLT, FLANGE DEEP

95E37-06014-00

$1.13

10

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

11

CAP ASSY

39P-24602-00-00

$257.99

12

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

13

BOLT

91312-05010-00

$5.60

14

FUEL PUMP COMP

1RC-13907-10-00

$452.99

15

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

16

O-RING

1RC-24486-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

18

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

19

BRACKET, TANK FITT

B7N-2413Y-00-00

Unavailable

20

BRACKET, CANISTOR

B7N-2419F-00-00

Unavailable

21

GROMMET

3D7-24339-00-00

Unavailable

22

COLLAR

90387-06136-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06136-00

Unavailable

24

NUT, FLANGE

95702-06500-00

Unavailable

25

BOLT

90111-06029-00

Unavailable

26

DAMPER, PLATE 1

B7N-2414H-00-00

Unavailable

27

PIPE 5

B7N-24315-00-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

CANISTER ASSY

B7N-24170-00-00

Unavailable

30

DAMPER, LOCATING 3

B7N-24183-00-00

Unavailable

31

PIPE 3

B7N-24313-10-00

Unavailable

32

CLIP

90467-090A2-00

Unavailable

33

PIPE 6

B7N-24316-00-00

Unavailable

34

CLIP

90467-100A1-00

Unavailable

35

PIPE 7

B7N-24317-10-00

Unavailable

36

CLIP

90467-090A2-00

Unavailable

37

CLIP

90467-090A2-00

Unavailable

38

SOLENOID VALVE ASS

B7N-86120-00-00

Unavailable

39

COVER, TANK

B7N-241B1-01-00

Unavailable

40

MOLE, FUEL TANK 1

B7N-2418B-00-00

Unavailable

41

GRILL, AIR INTAKE

B7N-2837N-00-00

Unavailable

42

GRILL, AIR INTAKE

B7N-2837R-00-00

Unavailable

43

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

44

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

45

SCOOP, AIR 1

B7N-2137W-00-P2

Unavailable

46

SCOOP, AIR 2

B7N-2137X-00-P2

Unavailable

47

DAMPER PLATE

90520-07002-00

Unavailable

48

EMBLEM

1RC-2413B-02-00

Unavailable

49

BOLT

90111-05007-00

Unavailable

50

NUT, SPRING(1YT)

90183-05042-00

Unavailable

51

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

52

RIVET

90269-09006-00

Unavailable

53

RIVET

90269-06001-00

Unavailable

54

BOLT,HEX. SOCKET BUTTON

90111-06137-00

Unavailable

55

COLLAR

90387-06057-00

Unavailable

56

GROMMET

90480-14003-00

Unavailable

57

GROMMET(4DN)

90480-01558-00

Unavailable

58

PLATE, FITTING

B7N-2411F-00-00

Unavailable

59

HOOK TANK FITTING

B7N-2411L-00-00

Unavailable

60

GROMMET(4FU)

90480-13567-00

Unavailable

61

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable

62

GRAPHIC 1

BAM-2173E-10-00

Unavailable

63

GRAPHIC 2

BAM-2173F-10-00

Unavailable

64

EMBLEM 1

B67-24161-30-00

Unavailable
