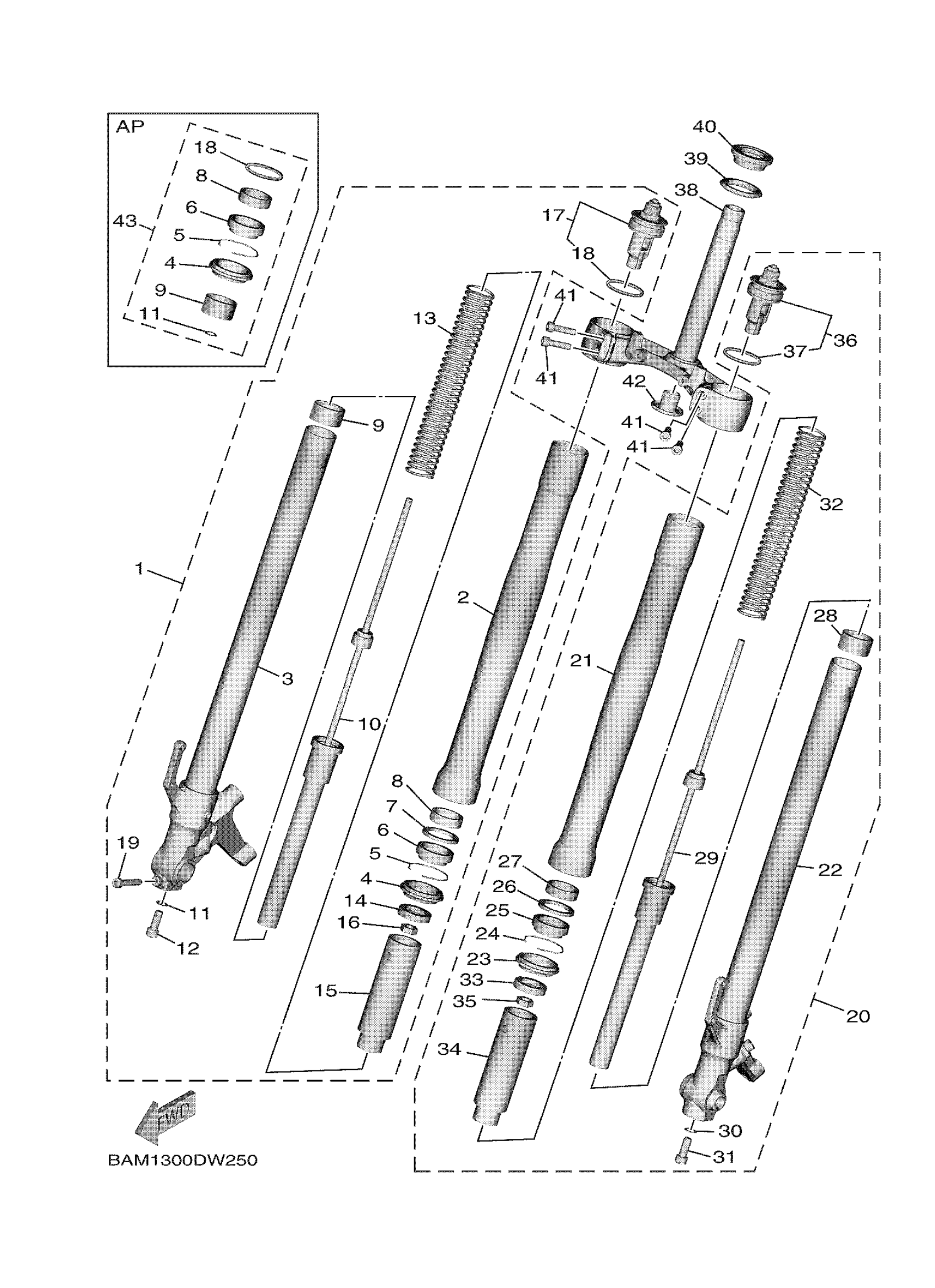

Yamaha MT09SPNS (MT09 SP) BAMB 2022 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (R
BAM-23103-00-00
Unavailable
2
TUBE, OUTER (L.H)
B7N-23126-10-00
Unavailable
3
INNER TUBE COMP.2
BAM-23120-00-00
Unavailable
10
CYLINDER COMP., FR
BAM-23170-00-00
Unavailable
13
SPRING, FRONT FORK
B7N-23141-00-00
Unavailable
15
SPACER
5VY-23118-00-00
Unavailable
16
NUT
3LC-23357-00-00
Unavailable
17
BOLT, CAP
B6C-23111-11-00
Unavailable
18
O-RING
3XJ-23147-L1-00
Unavailable
19
BOLT, SOCKET
91314-08035-00
Unavailable
20
FRONT FORK ASSY (L
BAM-23102-00-00
Unavailable
21
TUBE, OUTER (L.H)
B7N-23126-10-00
Unavailable
22
INNER TUBE COMP.1
BAM-23110-00-00
Unavailable
29
CYLINDER COMP., FR
B7N-23170-00-00
Unavailable
32
SPRING, FRONT FORK
B7N-23141-00-00
Unavailable
34
SPACER
5VY-23118-00-00
Unavailable
35
NUT
3LC-23357-00-00
Unavailable
36
BOLT, CAP
B6C-23111-11-00
Unavailable
37
O-RING
3XJ-23147-L1-00
Unavailable
38
UNDER BRACKET COMP
B7N-23340-00-00
Unavailable
39
SEAL, STEERING
3FV-23462-00-00
Unavailable
40
BEARING
93399-99957-00
Unavailable
41
BOLT,SOCKET
91314-08030-00
Unavailable
42
COVER, LOWER 1
4KM-23123-01-00
Unavailable
43
FORK SEAL KIT (ONE FORK)
B7N-W003B-00-00
Unavailable
