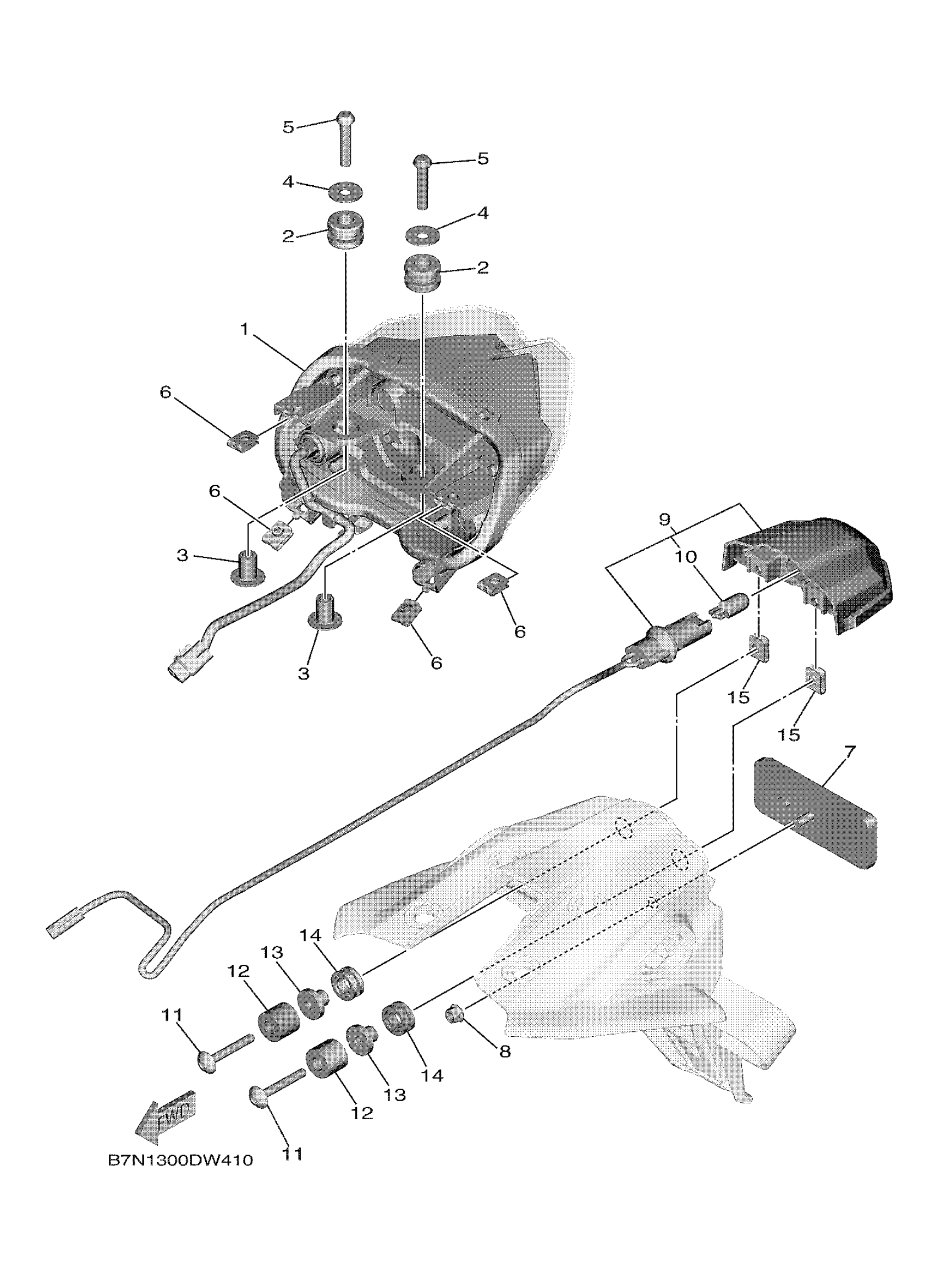

Yamaha MT09SPMCB (MT09 SP CA) BAM5 2021 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

B7N-84700-00-00

$231.42

2

GROMMET 839774310000

90480-14023-00

$4.34

3

COLLAR

90387-06136-00

$5.30

4

WASHER PLATE 256216150000

90201-06062-00

$6.62

5

BOLT, BUTTON HEAD

92012-06030-00

$2.63

6

NUT, SPRING

90183-050A6-00

$2.21

7

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

8

NUT, S/L FLANGE

95607-05200-00

$6.39

9

LICENCE LIGHT UNIT ASSY

2PN-84745-02-00

Unavailable

10

BULB

4SV-84347-00-00

$5.99

11

BOLT

90111-05006-00

$5.39

12

COLLAR

90387-08125-00

Unavailable

13

COLLAR

90387-05044-00

$11.71

14

GROMMET

90480-14017-00

$4.14

15

NUT, SPRING

90183-050A6-00

$2.21
