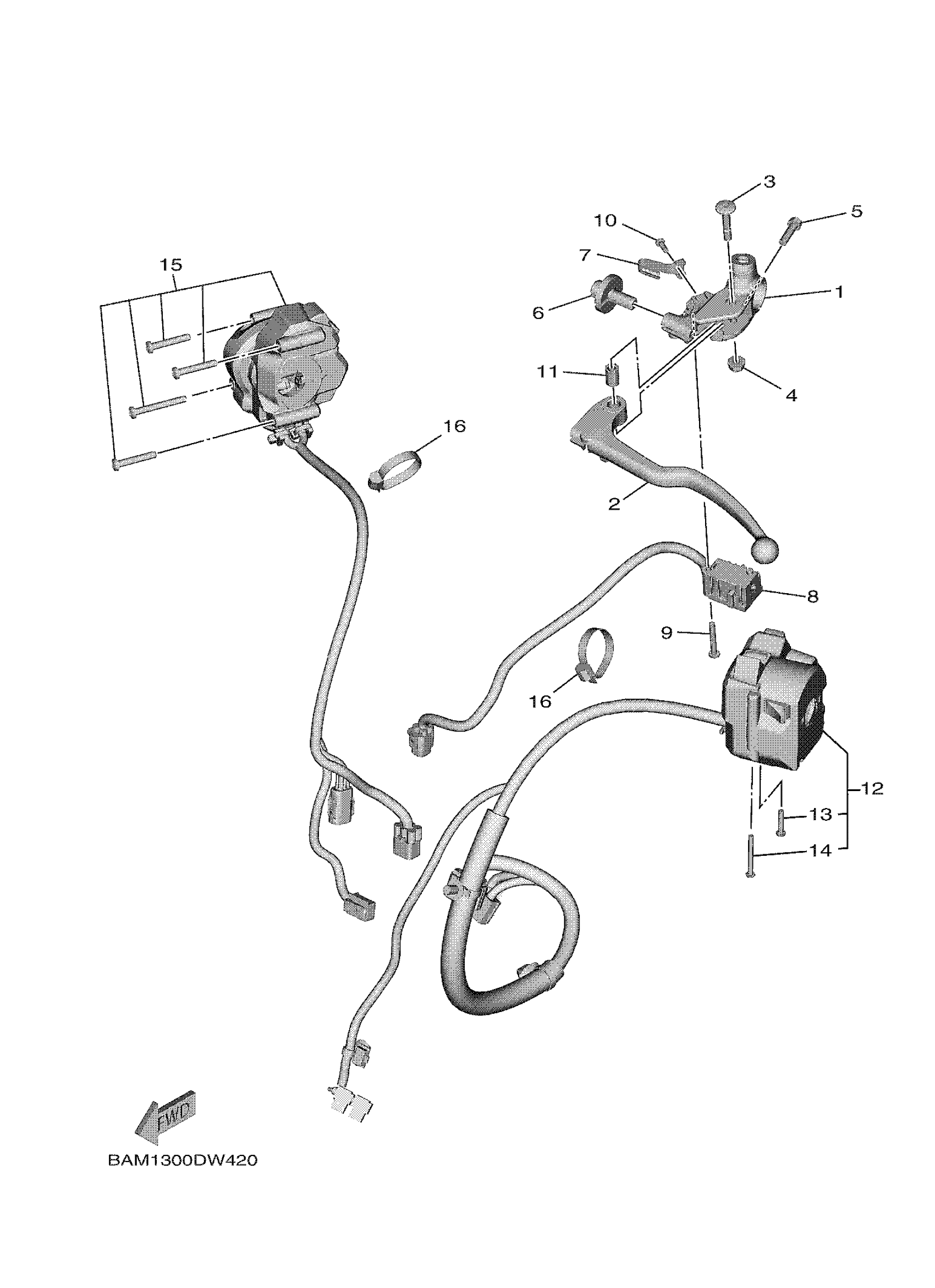

Yamaha MT09SPMCB (MT09 SP CA) BAM5 2021 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

B67-82911-00-00

$48.30

2

LEVER 1

BAM-83912-00-00

$34.82

3

BOLT, LEVER

2C0-83945-00-00

Unavailable

4

NUT,SELF-LOCKING

95607-06200-00

$10.09

5

. BOLT, FLANGE

95027-06020-00

$0.93

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$47.04

7

PLATE, SPRING

4XV-83929-00-00

$8.72

8

SWITCH

BAM-82917-00-00

Unavailable

9

SCREW, PAN HEAD WITH WASHER

97602-04230-00

$3.07

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.06

11

COLLAR, LEVER 1

5JJ-83913-00-00

$7.01

12

SWITCH, HANDLE 7

BAM-83954-01-00

Unavailable

13

SCREW, PAN HEAD

98517-04020-00

$5.76

14

SCREW, PAN HEAD(MK5)

98507-04035-00

$6.59

15

SW., HANDLE RH

BAM-8291R-03-00

Unavailable

16

CLAMP(4FM)

90464-15195-00

Unavailable
