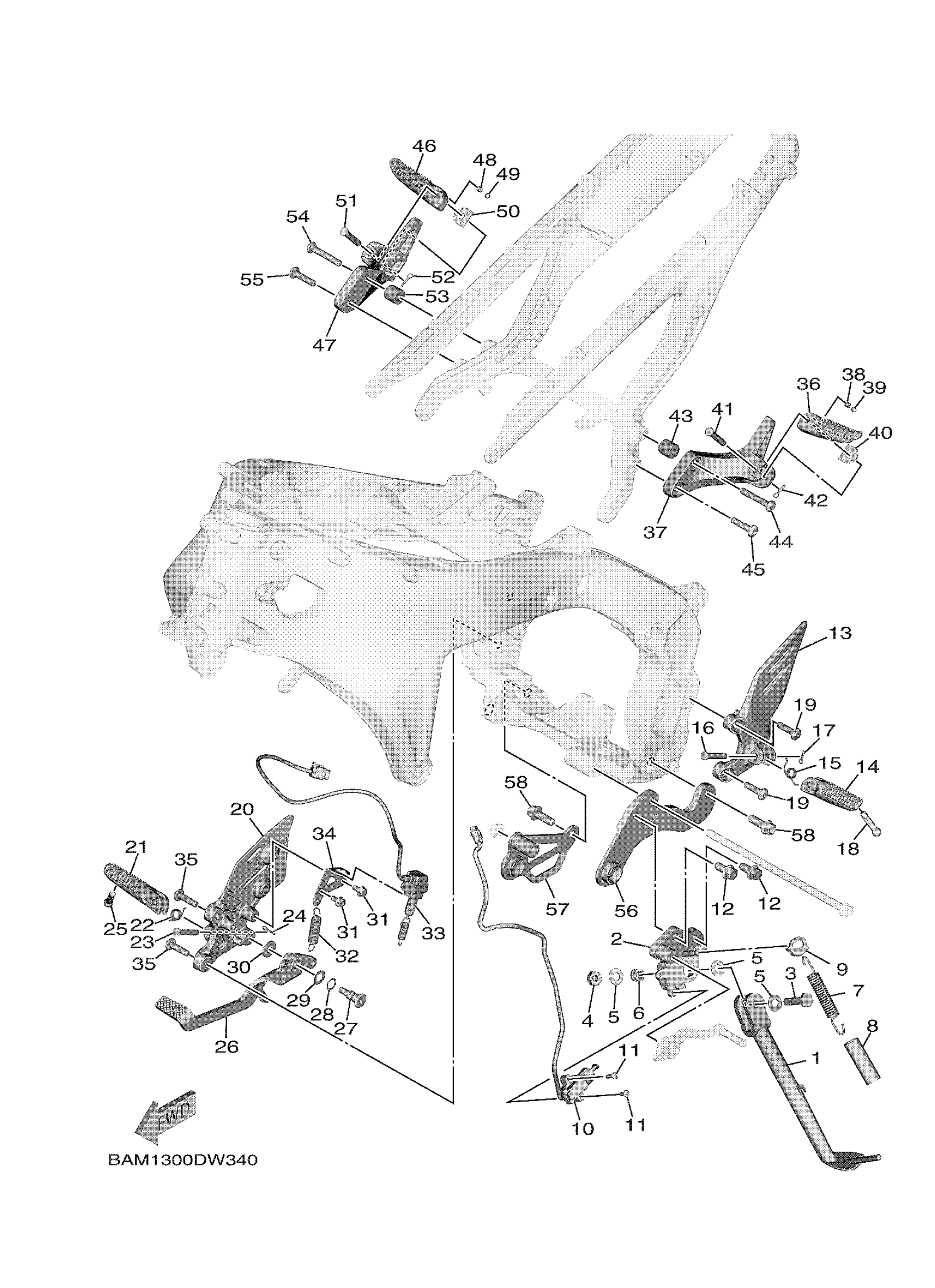

Yamaha MT09SPMCB (MT09 SP CA) BAM5 2021 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

B7N-27311-00-00

$45.19

2

BRACKET, SIDE STAN

B7N-27321-00-00

$103.41

3

BOLT

90101-10034-00

$7.15

4

NUT, SELF-LOCKING

90185-10012-00

$2.78

5

WASHER, PLATE

90201-10075-00

$2.33

6

COLLAR

90387-10020-00

$15.62

7

SPRING TENSION

90506-26014-00

$6.17

8

HOSE (L60)

90445-197J2-00

$3.67

9

LINK, SIDE STAND

B7N-27315-00-00

$1.85

10

SWITCH, SIDE STAND

B7N-82566-01-00

$38.36

11

SCREW

90149-05038-00

$1.40

12

BOLT, FLANGE

95817-10020-00

$4.89

13

BRACKET 2

B7N-27442-00-00

$73.35

14

FOOTREST 3

B7N-27451-00-00

Unavailable

15

SPRING, TORSION

90508-18134-00

$5.76

16

PIN, CLEVIS

91702-08040-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

18

BOLT

90109-08202-00

Unavailable

19

BOLT (3XF1)

90110-08220-00

Unavailable

20

BRACKET 3

B7N-27443-00-00

Unavailable

21

FOOTREST 4

B7N-27461-00-00

Unavailable

22

SPRING, TORSION

90508-18135-00

Unavailable

23

PIN, CLEVIS

91702-08040-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BOLT

90109-08202-00

Unavailable

26

PEDAL, BRAKE

B7N-27211-00-00

Unavailable

27

BOLT

4BP-27434-11-00

Unavailable

28

WASHER, WAVE (17W)

90206-12074-00

Unavailable

29

WASHER, PLATE

90201-12051-00

Unavailable

30

WASHER, PLATE

90201-08053-00

Unavailable

31

BOLT, FLANGE DEEP

95D02-06012-00

Unavailable

32

SPRING, TENSION

90506-18022-00

Unavailable

33

STOP SWITCH ASSY

BAM-82530-01-00

Unavailable

34

STAY STOP SWITCH

B7N-2144G-00-00

Unavailable

35

BOLT (3XF1)

90110-08220-00

Unavailable

36

FOOTREST, REAR 1

B7N-27431-00-00

Unavailable

37

BRACKET 4

B7N-2741L-00-00

Unavailable

38

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

39

BALL

93501-04011-00

Unavailable

40

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

41

PIN, CLEVIS

91702-08040-00

Unavailable

42

PIN, COTTER

91490-25020-00

Unavailable

43

COLLAR

90387-08124-00

Unavailable

44

BOLT

90111-08005-00

Unavailable

45

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

46

FOOTREST, REAR 2

B7N-27441-00-00

Unavailable

47

BRACKET 5

B7N-2742L-00-00

Unavailable

48

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

49

BALL

93501-04011-00

Unavailable

50

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

51

PIN, CLEVIS

91702-08040-00

Unavailable

52

PIN, COTTER

91490-25020-00

Unavailable

53

COLLAR

90387-08124-00

Unavailable

54

BOLT

90111-08005-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

56

STAY, MUFFLER 1

B7N-21445-10-00

Unavailable

57

STAY, MUFFLER 2

B7N-21446-10-00

Unavailable

58

BOLT, FLANGE

90105-10189-00

Unavailable
