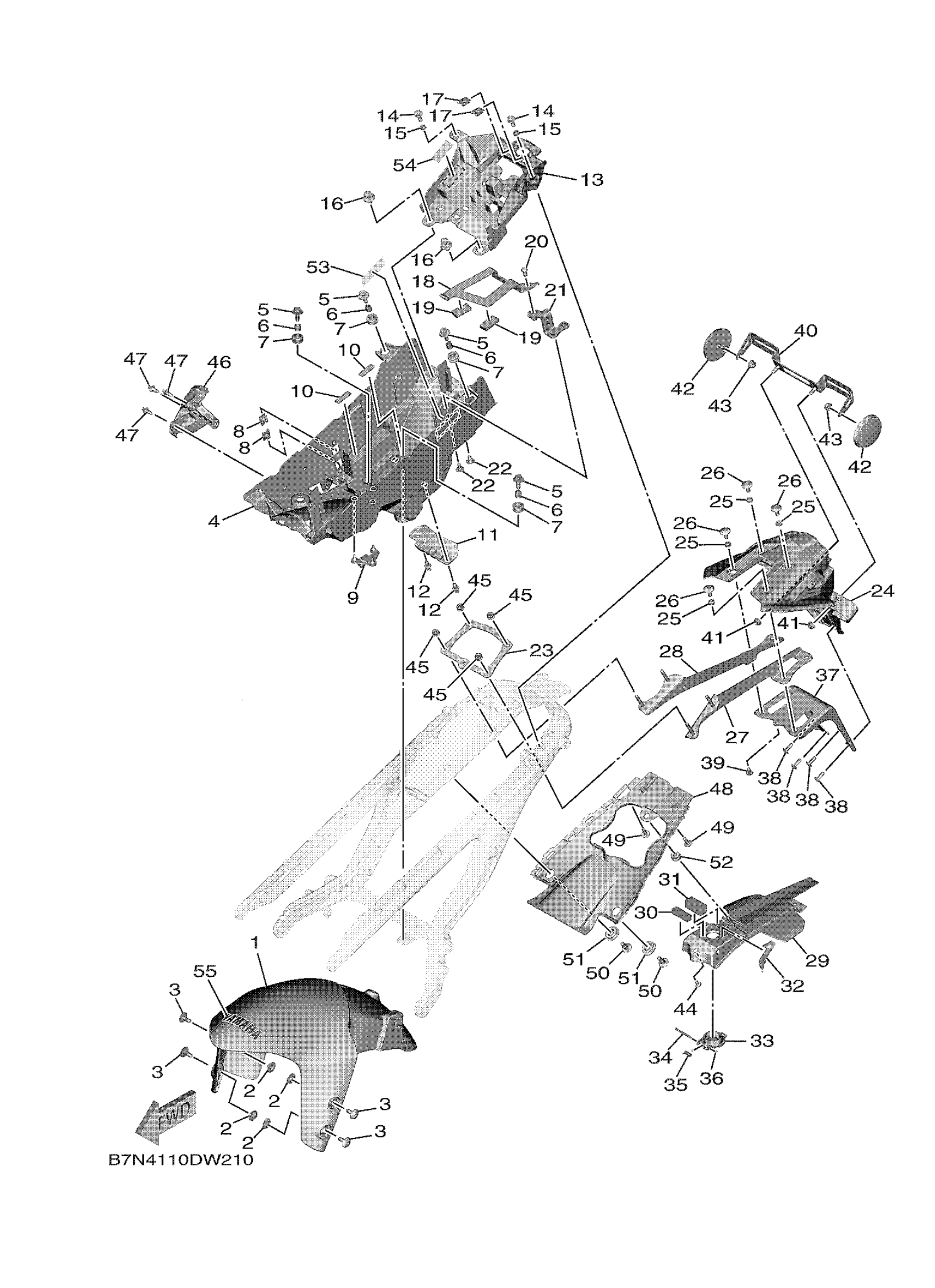

Yamaha MT09SPMCB (MT09 SP CA) BAM5 2021 FENDER Diagram
#
4
BOX, BATTERY 1
B7N-8212B-01-00
Unavailable
5
BOLT WITH WASHER
90119-06313-00
Unavailable
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
11
LID
B7N-2160F-00-00
Unavailable
16
RIVET(4JH)
90269-07076-00
Unavailable
17
NUT, SPRING(4ES)
90183-06069-00
Unavailable
18
BAND, BATTERY
B7N-82137-00-00
Unavailable
19
DAMPER PLATE
90520-06009-00
Unavailable
20
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
21
BRACKET, REAR STAY
B7N-21688-00-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-05049-00
Unavailable
23
BRACKET, REAR FEND
B7N-21261-00-00
Unavailable
24
GUARD, MUD
B7N-21629-00-00
Unavailable
25
COLLAR
90387-06106-00
Unavailable
26
BOLT,HEX. SOCKET BUTTON
90111-06190-00
Unavailable
27
STAY 1
B7N-2164F-00-00
Unavailable
28
STAY 2
B7N-2164G-00-00
Unavailable
29
COVER, REAR FENDER 2
B7N-2163E-01-00
Unavailable
30
DAMPER
2D1-21649-00-00
Unavailable
31
DAMPER
3P6-21649-00-00
Unavailable
32
BAND
B7N-21646-00-00
Unavailable
33
CAP, ROTOR
B7N-2465B-01-00
Unavailable
34
PIN
90249-03002-00
Unavailable
35
SPRING, TORSION
90508-09007-00
Unavailable
36
CIRCLIP (604)
93430-02001-00
Unavailable
37
STAY, PLATE
B7N-21682-00-00
Unavailable
38
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
39
RIVET(81E)
90269-05055-00
Unavailable
40
BRACKET, LICENSE
1RC-84751-00-00
Unavailable
41
NUT, SELF-LOCKING
95617-06100-00
Unavailable
42
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
43
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
44
RIVET(81E)
90269-05055-00
Unavailable
45
NUT, U FLANGE
95604-06200-00
Unavailable
46
COVER, REAR FENDER
B7N-2163A-00-00
Unavailable
47
RIVET
90269-06001-00
Unavailable
48
COVER, REAR FENDER
B7N-21651-01-00
Unavailable
49
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
50
BOLT
90109-06336-00
Unavailable
51
GROMMET(4BH)
90480-01559-00
Unavailable
52
GROMMET
90480-10003-00
Unavailable
53
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
54
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
55
EMBLEM, YAMAHA
99246-00080-00
Unavailable
