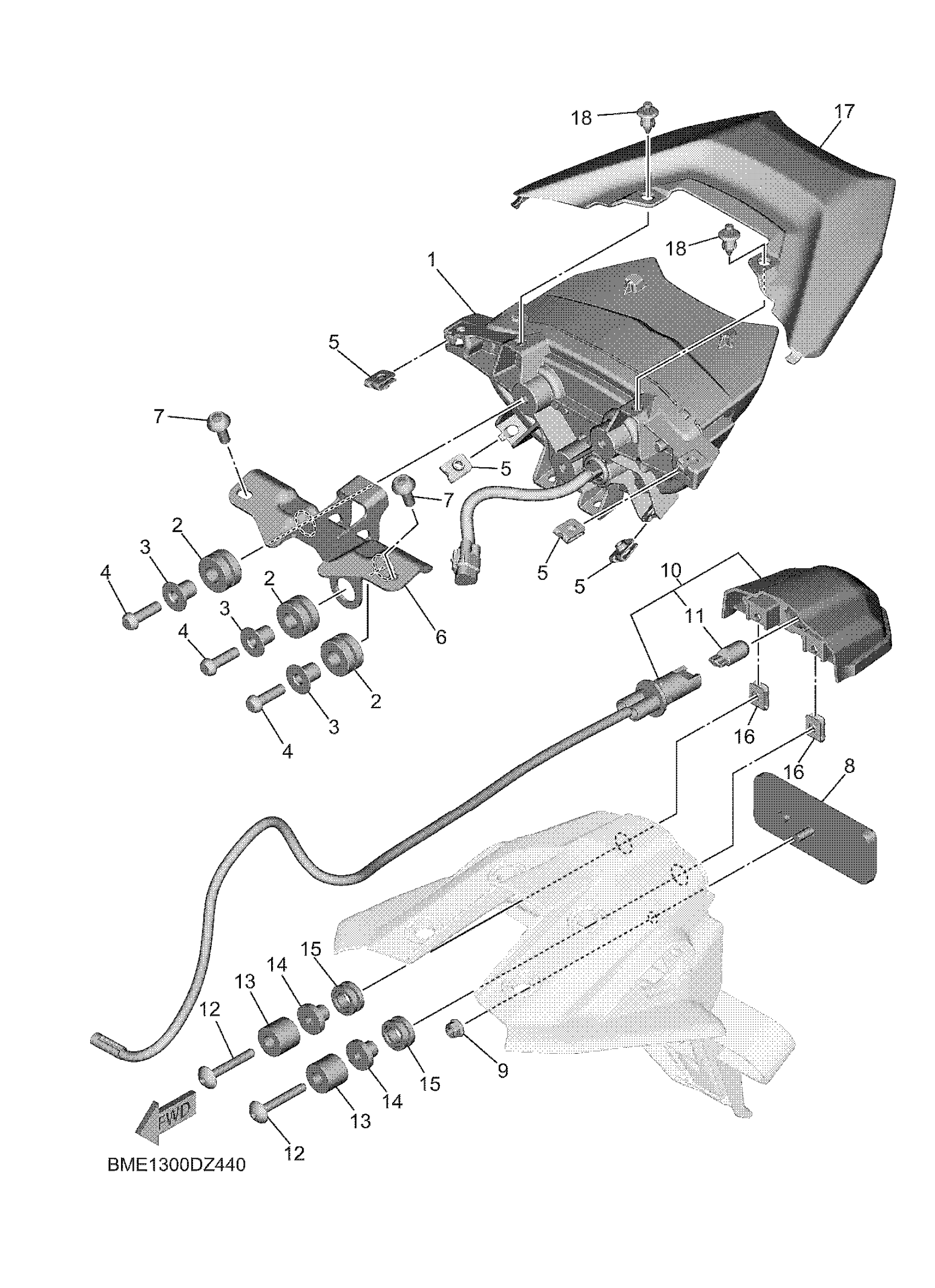

Yamaha MT09SL (MT09) BMEK 2025 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

BME-84700-00-00

Unavailable

2

GROMET (3X3)

90480-14229-00

$8.49

3

COLLAR

90387-06289-00

$3.18

4

BOLT, BUTTON HEAD

92012-06020-00

$8.49

5

NUT, SPRING

90183-050A6-00

$8.49

6

BRACKET, TAILLIGHT

BME-2117E-00-00

$46.99

7

BOLT

90111-06029-00

$5.60

8

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

9

NUT, S/L FLANGE

95607-05200-00

$9.49

10

LICENCE LIGHT UNIT ASSY

2PN-84745-02-00

Unavailable

11

BULB (12V-5W)

2DP-H4347-00-00

$7.49

12

BOLT

90111-05006-00

$7.49

13

COLLAR

90387-08125-00

Unavailable

14

COLLAR

90387-05044-00

$13.99

15

GROMMET

90480-14017-00

$4.72

16

NUT, SPRING

90183-050A6-00

$8.49

17

COVER, TAILLIGHT

BME-2172X-00-00

Unavailable

18

RIVET

90269-06008-00

Unavailable
