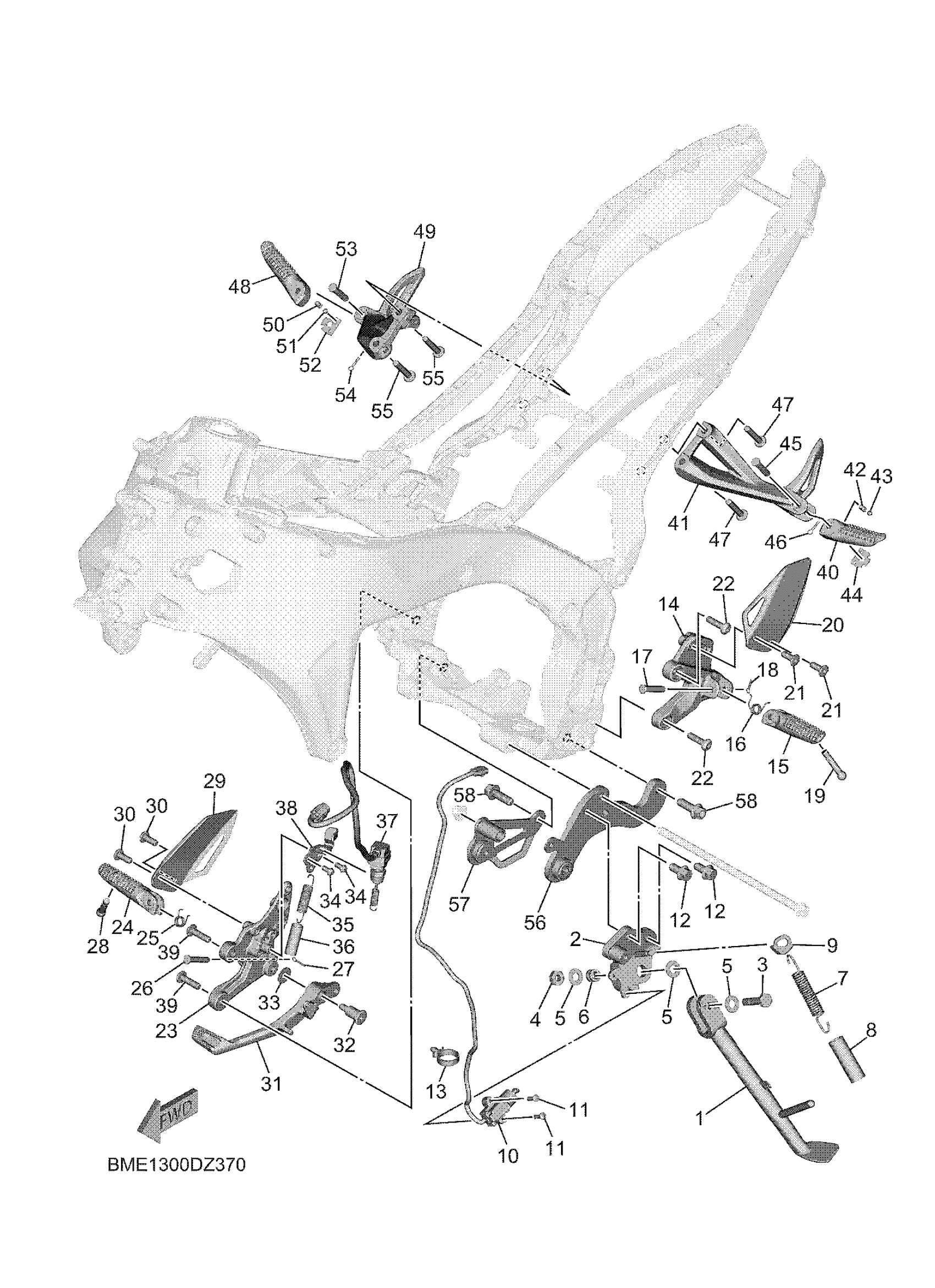

Yamaha MT09SL (MT09) BMEK 2025 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

BME-27311-00-00

$55.99

2

BRACKET, SIDE STAN

B7N-27321-00-00

$111.99

3

BOLT

90101-10034-00

$8.49

4

NUT, SELF-LOCKING

90185-10012-00

$9.49

5

WASHER, PLATE

90201-10075-00

$3.28

6

COLLAR

90387-10020-00

$17.99

7

SPRING TENSION

90506-26014-00

$8.49

8

HOSE (L60)

90445-197J2-00

$4.61

9

LINK, SIDE STAND

B7N-27315-00-00

$2.22

10

SWITCH, SIDE STAND

BME-82566-00-00

$48.99

11

SCREW

90149-05038-00

$2.17

12

BOLT, FLANGE

95817-10020-00

$8.49

13

CLAMP(4NK)

90464-24230-00

$7.49

14

BRACKET 2

BME-27442-00-00

$100.99

15

FOOTREST 3

B7N-27451-00-00

Unavailable

16

SPRING, TORSION

90508-18134-00

Unavailable

17

PIN, CLEVIS

91702-08040-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

BOLT

90109-08225-00

Unavailable

20

PLATE 1

BME-27445-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-08093-00

Unavailable

22

BOLT (3XF1)

90110-08220-00

Unavailable

23

BRACKET 3

BME-27443-00-00

Unavailable

24

FOOTREST 4

B7N-27461-00-00

Unavailable

25

SPRING, TORSION

90508-18135-00

Unavailable

26

PIN, CLEVIS

91702-08040-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

BOLT

90109-08225-00

Unavailable

29

PLATE 2

BME-27446-00-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-08093-00

Unavailable

31

PEDAL, BRAKE

BME-27211-00-00

Unavailable

32

BOLT

4C8-27434-10-00

Unavailable

33

WASHER 6154275100

90201-08103-00

Unavailable

34

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

35

SPRING, TENSION

90506-18022-00

Unavailable

36

HOSE

90446-15386-00

Unavailable

37

STOP SWITCH ASSY

BME-82530-00-00

Unavailable

38

STAY, STOP SWITCH

BME-2144G-00-00

Unavailable

39

BOLT (3XF1)

90110-08220-00

Unavailable

40

FOOTREST, REAR 1

B7N-27431-00-00

Unavailable

41

BRACKET 4

BME-2741L-00-00

Unavailable

42

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

43

BALL

93501-04011-00

Unavailable

44

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

45

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

46

PIN, COTTER

91490-25020-00

Unavailable

47

SCREW(1KH)

90149-08220-00

Unavailable

48

FOOTREST, REAR 2

B7N-27441-00-00

Unavailable

49

BRACKET 5

BME-2742L-00-00

Unavailable

50

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

51

BALL

93501-04011-00

Unavailable

52

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

53

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

54

PIN, COTTER

91490-25020-00

Unavailable

55

SCREW(1KH)

90149-08220-00

Unavailable

56

STAY, MUFFLER 1

BME-21445-00-00

Unavailable

57

STAY, MUFFLER 2

B7N-21446-10-00

Unavailable

58

BOLT, FLANGE

90105-10189-00

Unavailable
