Description

Price

1

SINGLE SEAT ASSY

BME-24710-00-00

$219.99

2

PAD, SEAT

5JW-24741-00-00

$5.49

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

STOPPER, UPPER MOU

682-44532-01-00

$2.39

5

TANDEM SEAT ASSY

BME-24750-00-00

Unavailable

6

PAD, SEAT

5JW-24741-00-00

$5.49

7

STOPPER, MAIN STAN

B7N-27114-00-00

$3.35

8

KEY SET

BME-82021-00-00

$38.99

9

SPRING, LOCK 2

59C-2176V-00-00

Unavailable

10

BRACKET, SEAT LOCK

BME-2478X-00-00

$45.99

11

BOLT

90111-06029-00

$5.60

12

SPANNER 12-14

33M-28125-00-00

$8.99

13

DRIVER

2GV-28152-00-00

$5.49

14

GRIP, DRIVER

2H7-28151-00-00

$6.99

15

SPANNER, SPECIAL

BME-28135-00-00

$14.99

16

HANDLE, SPANNER

BME-28138-00-00

Unavailable

17

POUCH

B7N-28186-00-00

Unavailable

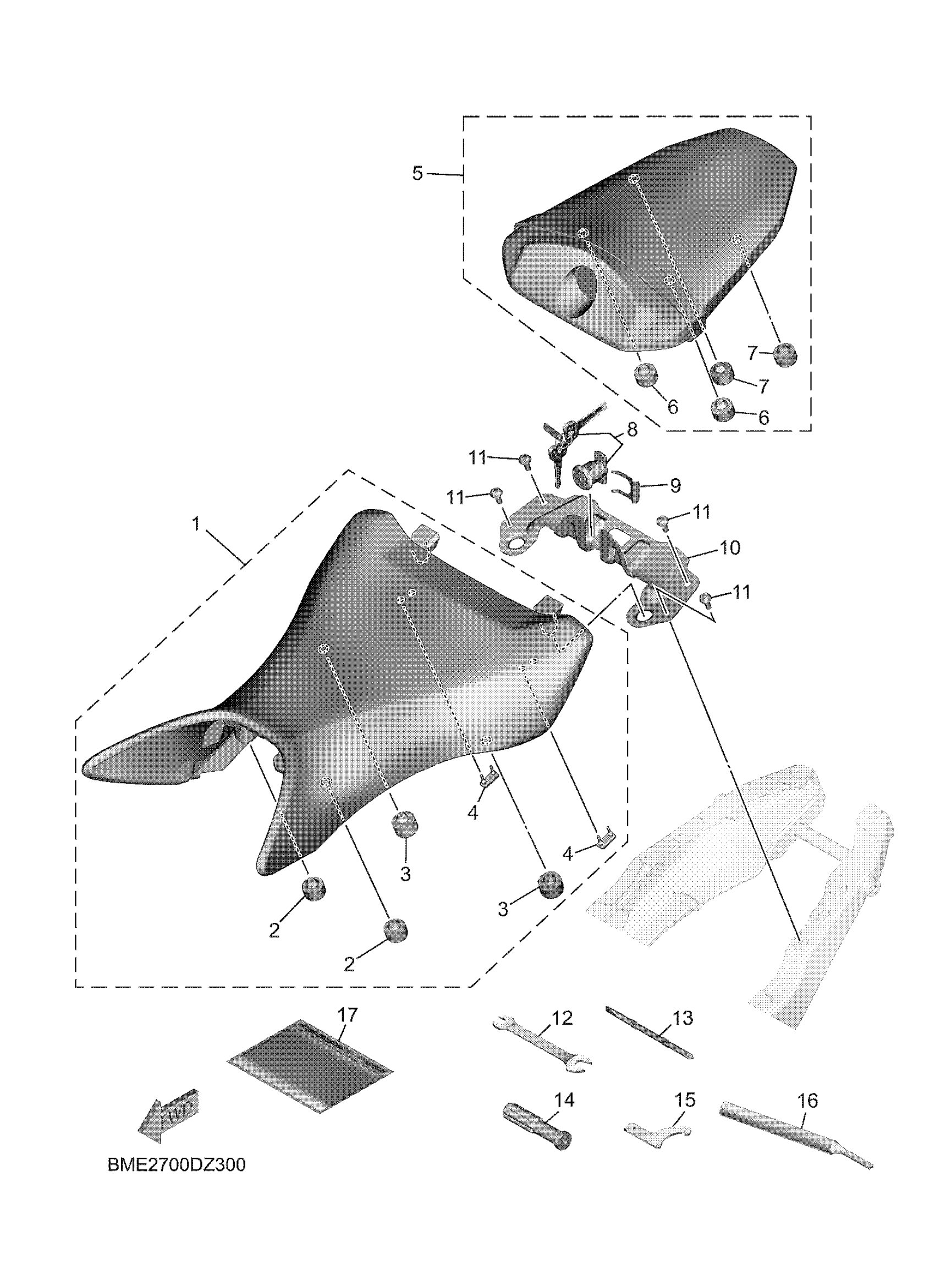

Yamaha MT09SL (MT09) BMEK 2025 SEAT Diagram

SINGLE SEAT ASSY

PAD, SEAT

STOPPER, MAIN STAND

STOPPER, UPPER MOU

TANDEM SEAT ASSY

PAD, SEAT

STOPPER, MAIN STAN

KEY SET

SPRING, LOCK 2

BRACKET, SEAT LOCK

BOLT

SPANNER 12-14

DRIVER

GRIP, DRIVER

SPANNER, SPECIAL

HANDLE, SPANNER

POUCH
