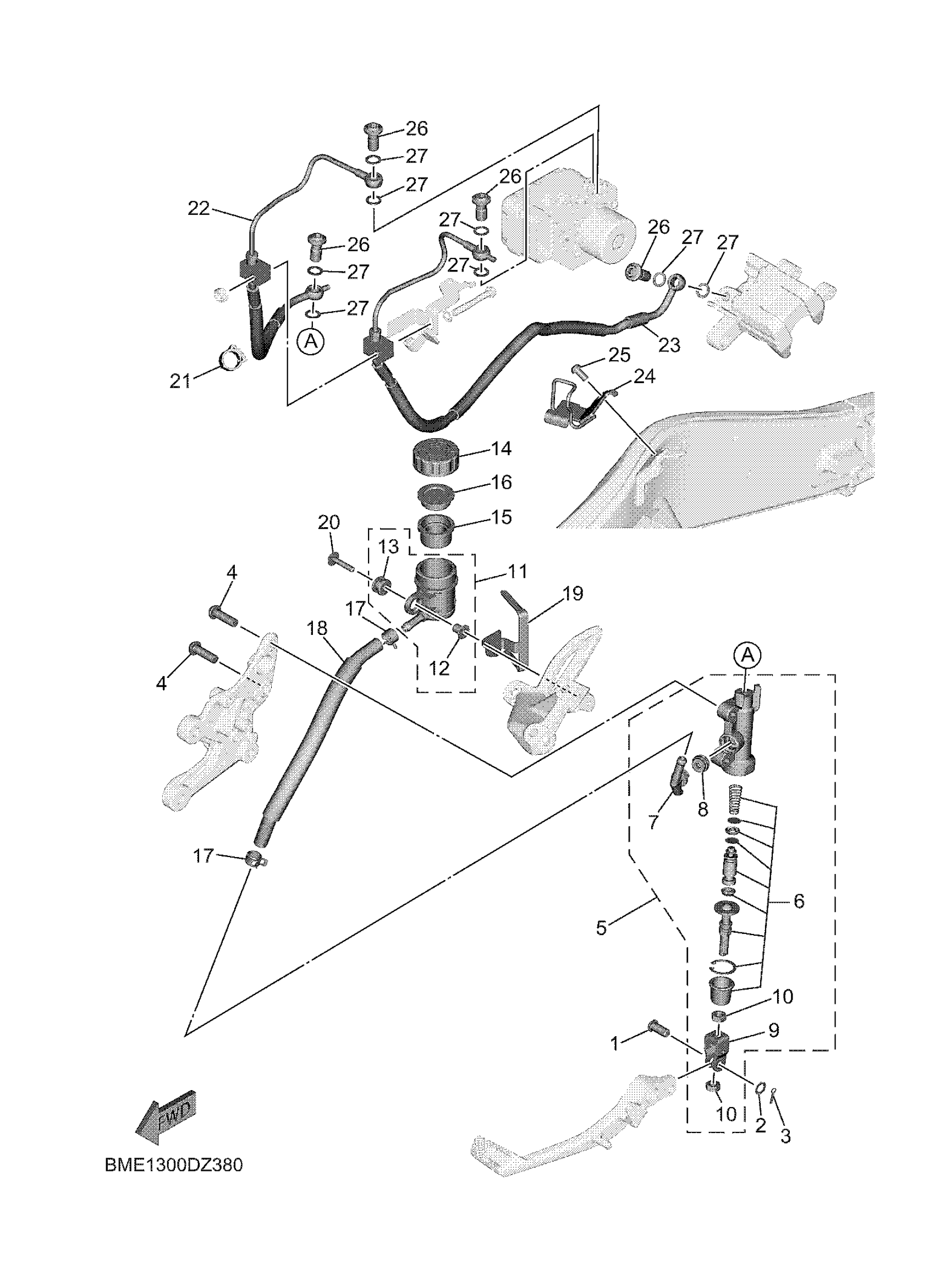

Yamaha MT09SL (MT09) BMEK 2025 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PIN, CLEVIS

90240-08005-00

$8.49

2

WASHER, PLATE

90201-08066-00

$8.49

3

PIN, COTTER (648)

91490-20015-00

$2.20

4

BOLT,HEX. SOCKET BUTTON

90111-08093-00

$2.34

5

RR. MASTER CYLINDE

56P-2583V-01-00

Unavailable

6

CYLINDER KIT, MASTER

56P-25808-50-00

$103.99

7

JOINT

2D1-2582A-01-00

$5.49

8

O-RING

4BP-2585F-01-00

Unavailable

9

JOINT

4BP-27222-02-00

$29.99

10

NUT

90170-08010-00

$8.49

11

TANK, RESERVOIR

BAM-25894-50-00

$63.99

12

COLLAR

90387-05028-00

$5.60

13

GROMMET

2C0-26326-00-00

$6.99

14

CAP, RESERVOIR

2C0-25852-00-00

$7.99

15

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

16

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

17

CLIP(3FV)

90467-12085-00

Unavailable

18

HOSE, RESERVOIR

BME-25895-50-00

Unavailable

19

HOLDER, RESERVE TA

BME-2582E-00-00

Unavailable

20

BOLT

90111-05014-00

Unavailable

21

CLAMP

90464-16003-00

Unavailable

22

HOSE, BRAKE 4

BME-2581J-00-00

Unavailable

23

HOSE, BRAKE 5

BME-2581K-00-00

Unavailable

24

GUIDE, WIRE

BME-27267-00-00

Unavailable

25

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

26

BOLT, UNION

90401-10172-00

Unavailable

27

GASKET

90430-10005-00

Unavailable
