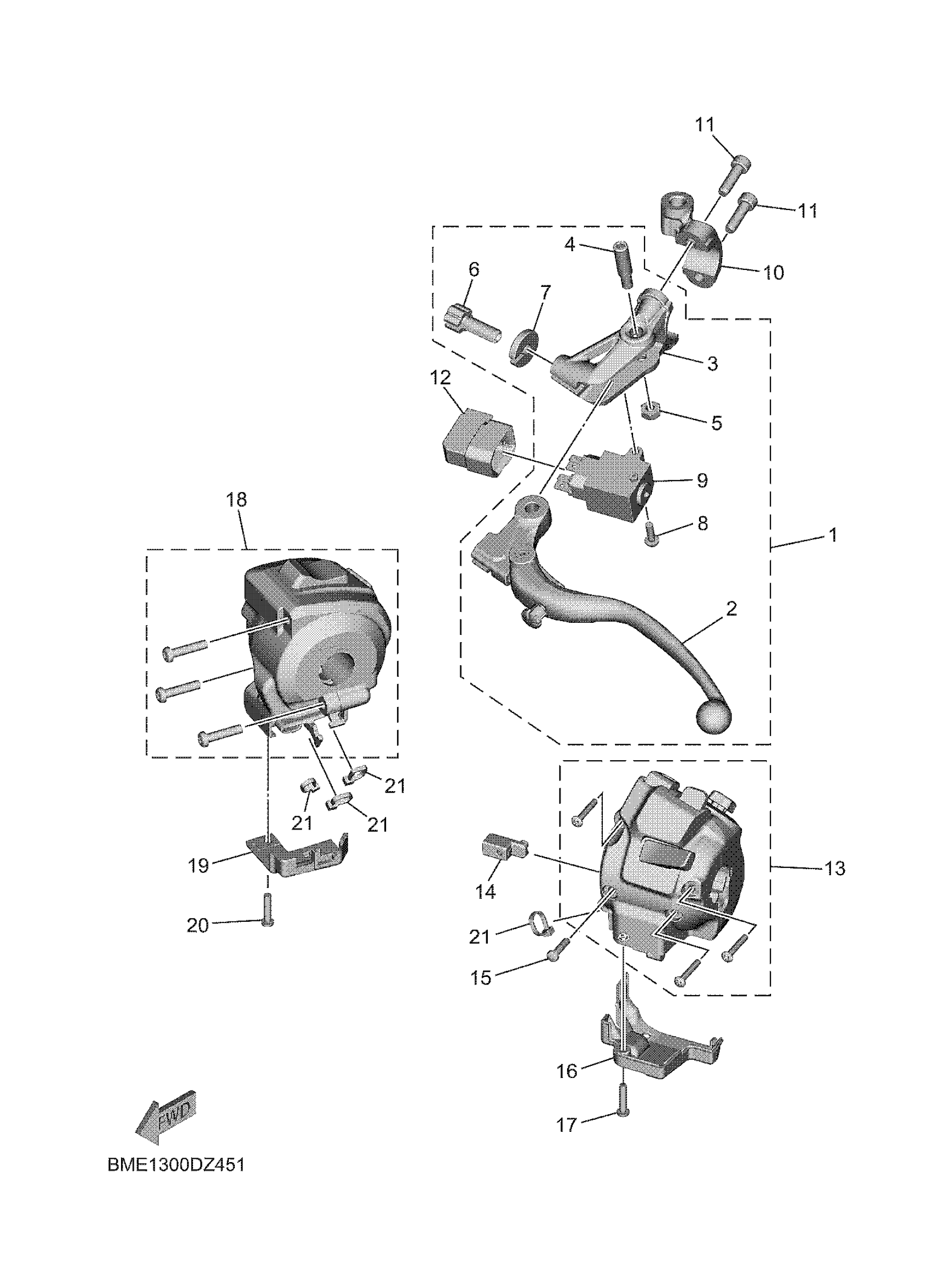

Yamaha MT09SL (MT09) BMEK 2025 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

BME-82910-10-00

$158.99

2

LEVER 2

BME-83922-00-00

$49.99

3

HOLDER, LEVER 1

BME-82911-10-00

$28.99

4

BOLT, LEVER

BME-2589F-00-00

$5.60

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

BOLT, AJUSTING

BME-26382-00-00

$21.99

7

NUT

90179-08030-00

$5.49

8

SCREW

BME-2632G-00-00

$5.60

9

SWITCH

BME-82917-00-00

Unavailable

10

BRACKET, MIRROR 1

BME-2629N-10-00

$25.99

11

BOLT,SOCKET HEAD

91314-06020-00

$1.49

12

COVER, SWITCH

BME-8291G-00-00

$11.49

13

SW., HANDLE LH

BME-8291L-00-00

$378.99

14

CLIP

BME-83525-00-00

$9.49

15

SCREW, PAN HEAD

98517-04016-00

$8.49

16

COVER 1

BME-8246B-00-00

Unavailable

17

SCREW, PAN HEAD

98507-04018-00

Unavailable

18

SW., HANDLE RH

BME-8291R-00-00

Unavailable

19

COVER 2

BME-8249A-00-00

Unavailable

20

SCREW, PAN HEAD

98507-04018-00

Unavailable

21

CLAMP

90465-10098-00

Unavailable
