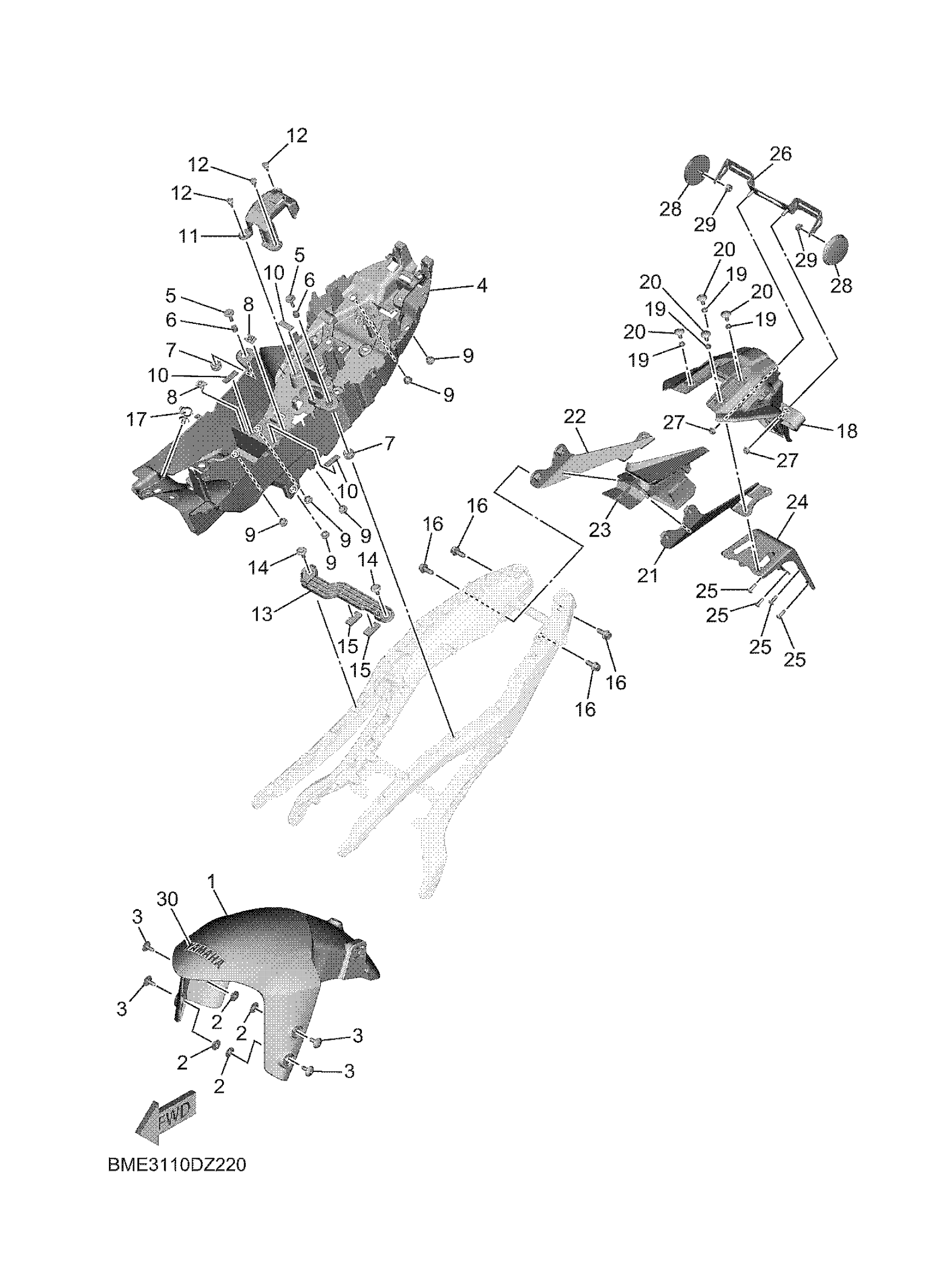

Yamaha MT09SL (MT09) BMEK 2025 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

B7N-21511-00-P1

$138.99

2

COLLAR (3L1)

90387-07717-00

$8.49

3

BOLTHEX. SOCKET BUTTON

90111-06191-00

$1.07

4

BOX, BATTERY 1

BME-8212B-00-00

$60.99

5

BOLT WITH WASHER

90119-06313-00

Unavailable

6

COLLAR

90387-06113-00

$11.49

7

GROMMET

90480-14035-00

$2.17

8

NUT, SPRING(4ES)

90183-06069-00

Unavailable

9

PLUG (17J)

90338-10132-00

Unavailable

10

DAMPER

B7N-21649-00-00

$3.35

11

COVER 9

BME-2116H-00-00

$9.49

12

RIVET

90269-06008-00

$9.49

13

BRKT.

BME-2116B-00-00

Unavailable

14

BOLT(3KJ)

90109-063F1-00

$2.97

15

DAMPER, PLATE

90520-04015-00

Unavailable

16

BOLT, FLANGE

95812-08020-00

Unavailable

17

CLAMP

90464-14013-00

Unavailable

18

GUARD, MUD

B7N-21629-00-00

Unavailable

19

COLLAR

90387-06106-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-06190-00

Unavailable

21

STAY 1

BME-2164F-00-00

Unavailable

22

STAY 2

BME-2164G-00-00

Unavailable

23

COVER, REAR FENDER

BME-2163E-00-00

Unavailable

24

STAY, PLATE

B7N-21682-00-00

Unavailable

25

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

26

BRACKET, LICENSE

1RC-84751-00-00

Unavailable

27

NUT, SELF-LOCKING

95617-06100-00

Unavailable

28

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

29

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

30

EMBLEM, YAMAHA

99247-00080-00

Unavailable
