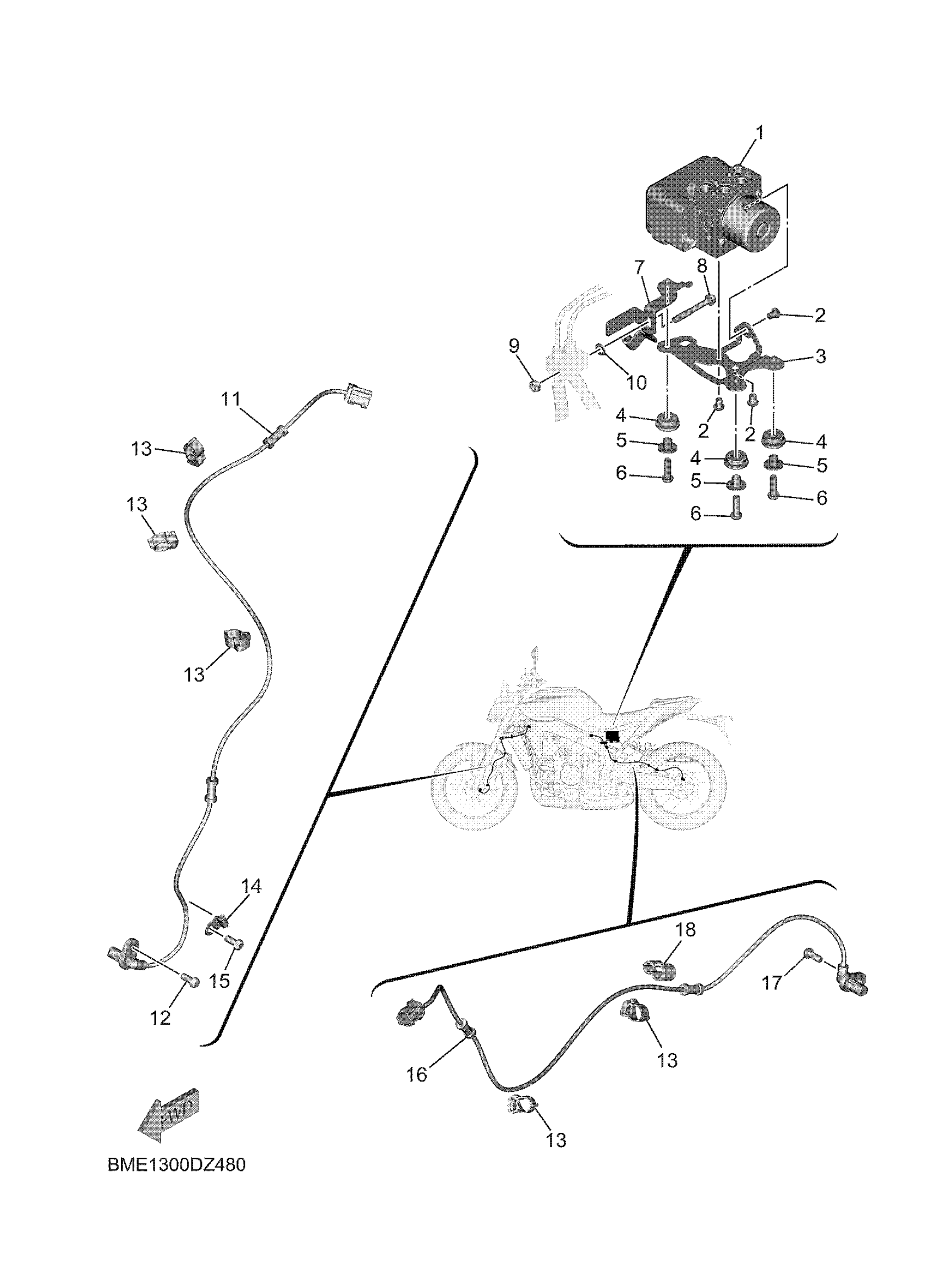

Yamaha MT09SL (MT09) BMEK 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASS

BME-85930-07-00

Unavailable

2

BOLT, HEXAGON SOCK

90111-06204-00

Unavailable

3

BRACKET, UNIT

BME-85991-00-00

$20.99

4

GROMMET(4FU)

90480-13567-00

$4.99

5

COLLAR

90387-06160-00

Unavailable

6

BOLT, BUTTON HEAD

92012-06020-00

$8.49

7

BRACKET

BME-85542-00-00

$18.99

8

BOLT, SMALL FLANGE

95027-06045-00

$3.28

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WASHER, PLATE

90201-06034-00

$8.49

11

WHEEL SENSOR ASSY,

BME-85970-00-00

$104.99

12

BOLT, BUTTON HEAD

92017-06014-00

$4.29

13

CLAMP

90464-14010-00

$3.40

14

HOLDER, CABLE

2CR-23317-00-00

Unavailable

15

BOLT, BUTTON HEAD

92017-06014-00

$4.29

16

WHEEL SENSOR ASSY,

BME-85980-00-00

Unavailable

17

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

18

CLAMP(4GL)

90464-10233-00

Unavailable
