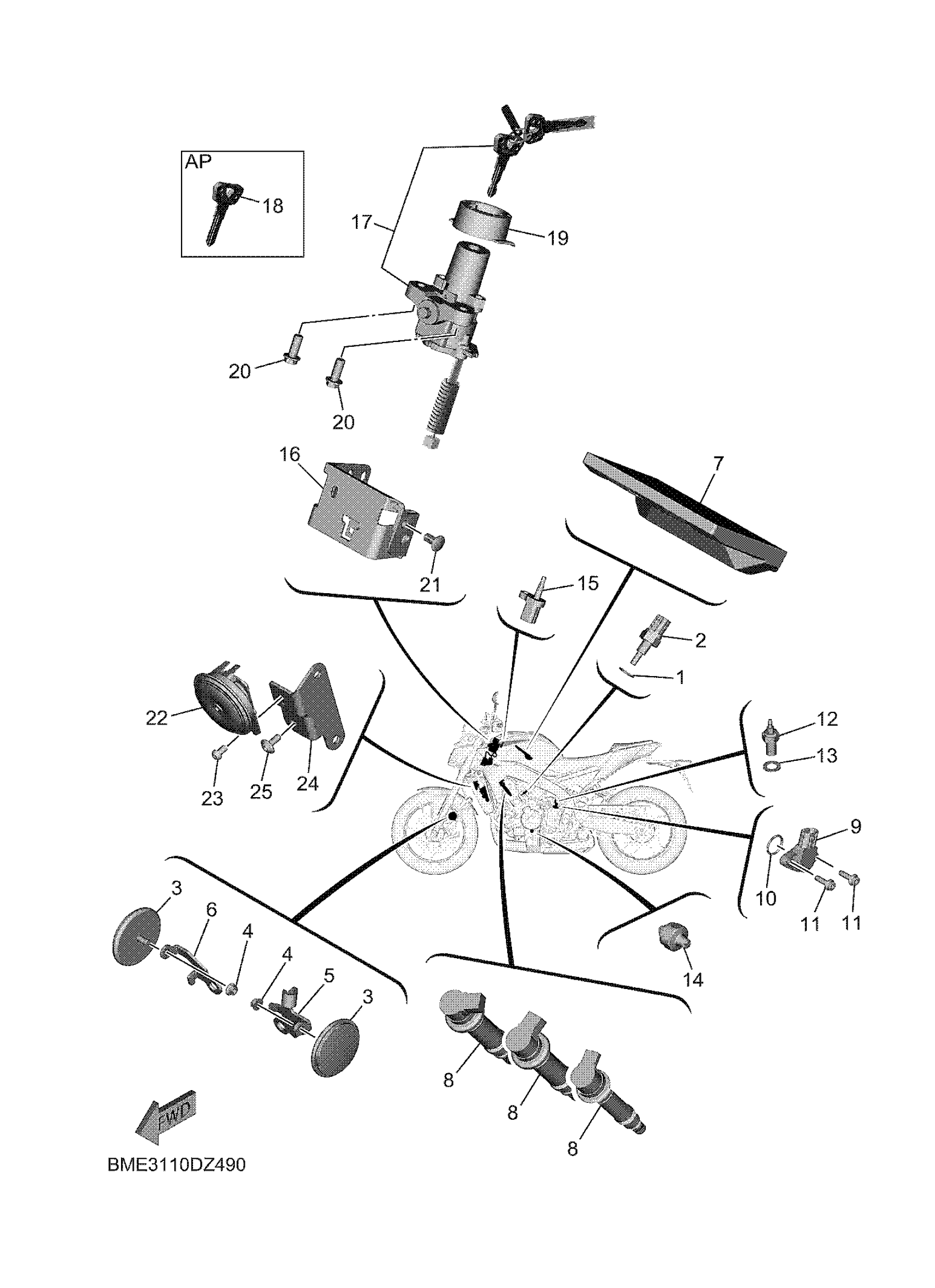

Yamaha MT09SL (MT09) BMEK 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

REFLECTOR, REAR 1

59C-85131-00-00

Unavailable

4

NUT, FLANGE

95702-05500-00

$0.38

5

BRACKET, REFLECTOR

BME-85112-00-00

$16.99

6

BRACKET, REFLECTOR

BME-85122-00-00

$9.49

7

ENGINE CONTROL UNI

BME-8591A-10-00

$1,051.99

8

IGNITION COIL ASSY

BME-82310-00-00

$90.99

9

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

10

O-RING

93210-17008-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

15

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$34.99

16

COVER, CONNECTOR

B7N-82599-01-00

Unavailable

17

MAIN SWITCH STEERING LOCK

BME-82501-10-00

Unavailable

18

BLANK KEY

4BH-82511-09-00

Unavailable

19

COVER, MAIN SWITCH

BME-82568-00-00

Unavailable

20

BOLT, WASHER BASED(3JP)

90105-081A1-00

Unavailable

21

RIVET

90269-07015-00

Unavailable

22

HORN

BME-83371-00-00

Unavailable

23

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

24

BRACKET, HORN

BME-23377-00-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable
