2024 Yamaha MT09 (MT09RL) Rear Brake Caliper Diagram

← All diagrams

Find the part on the Rear Brake Caliper diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

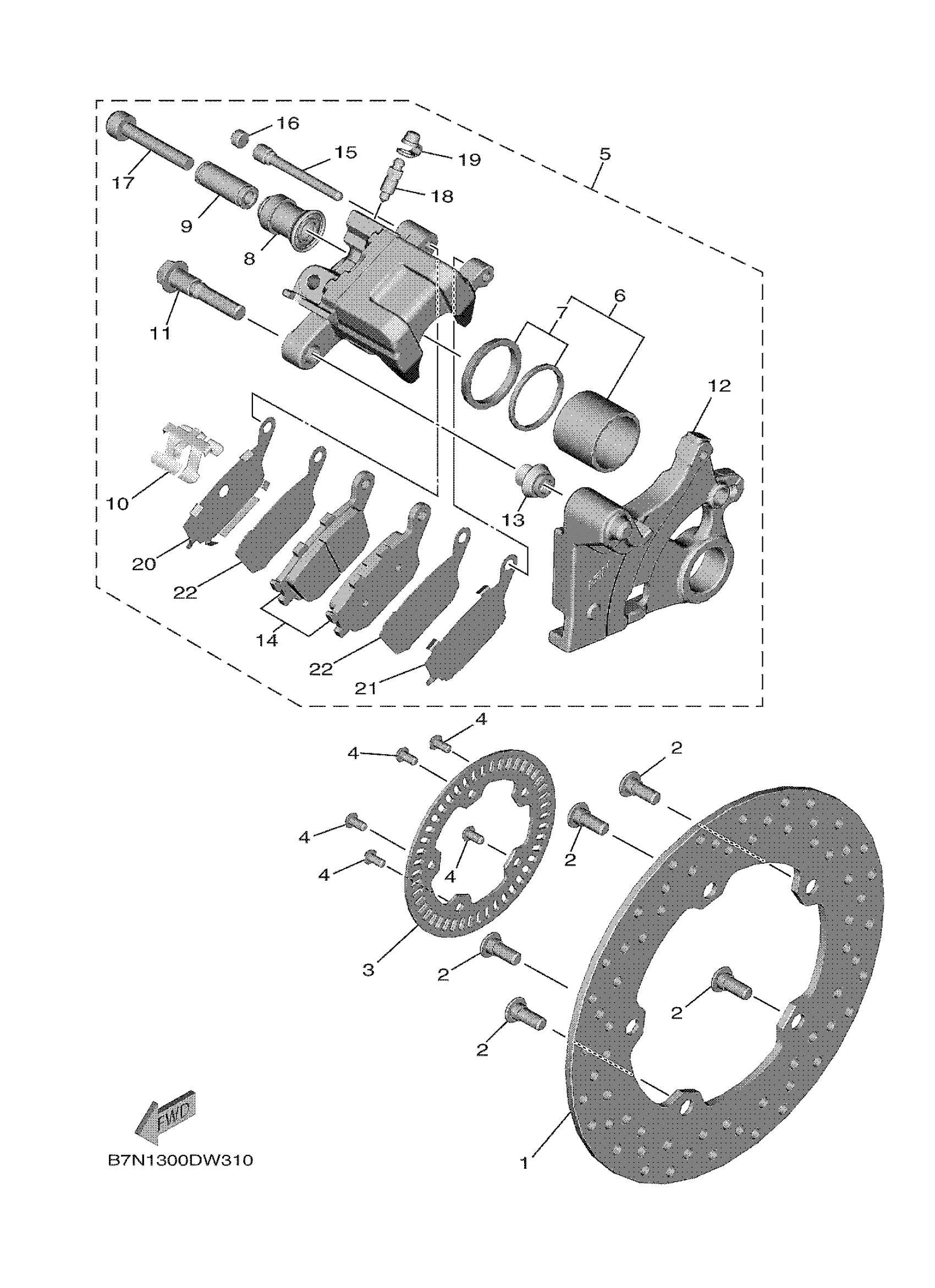

2024 Yamaha MT09 (MT09RL) Rear Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK, REAR BRAKE 2

1RC-2582W-00-00

1

$94.24

In stock

2

BOLT

90109-08046-00

1

$2.88

In stock

3

ROTOR, SENSOR

2PW-2517G-00-00

—

$69.69

In stock

4

SCREW

90149-05030-00

1

$2.14

In stock

5

CALIPER ASSY, REAR

B7N-2580W-00-00

—

$306.62

In stock

6

PISTON ASSY, CALIPER

5SL-25802-00-00

1

$67.51

In stock

7

CALIPER SEAL KIT

5SL-25803-00-00

1

$16.28

In stock

8

BOOT, CALIPER

5SL-25917-00-00

1

$13.06

In stock

9

SLEEVE, CALIPER

5SL-25838-00-00

1

$11.47

In stock

10

SUPPORT, PAD

5SL-25919-00-00

1

$5.93

In stock

11

PIN, SLIDE

5SL-25914-00-00

1

$15.82

In stock

12

BRACKET, SUPPORT

B7N-25921-50-00

—

$122.75

In stock

13

BOOT, CALIPER

3JD-25917-00-00

1

$7.51

In stock

14

BRAKE PAD KIT 2

5VX-25806-00-00

1

$50.22

In stock

15

PIN, PAD

8CR-25924-00-00

1

$11.26

In stock

16

PLUG

5DH-25916-50-00

—
Out of stock

17

BOLT

1RC-25926-00-00

—

$17.41

In stock

18

SCREW, BLEED

8CR-25824-00-00

—

$11.29

In stock

19

BLEED SCREW KIT

36Y-W0048-00-00

—

$8.51

In stock

20

SHIM, CALIPER

5SL-25827-00-00

—

$5.11

In stock

21

SHIM, CALIPER

5SL-25827-10-00

—

$7.51

In stock

22

SHIM, CALIPER

5SL-25828-01-00

—

$7.03

In stock
