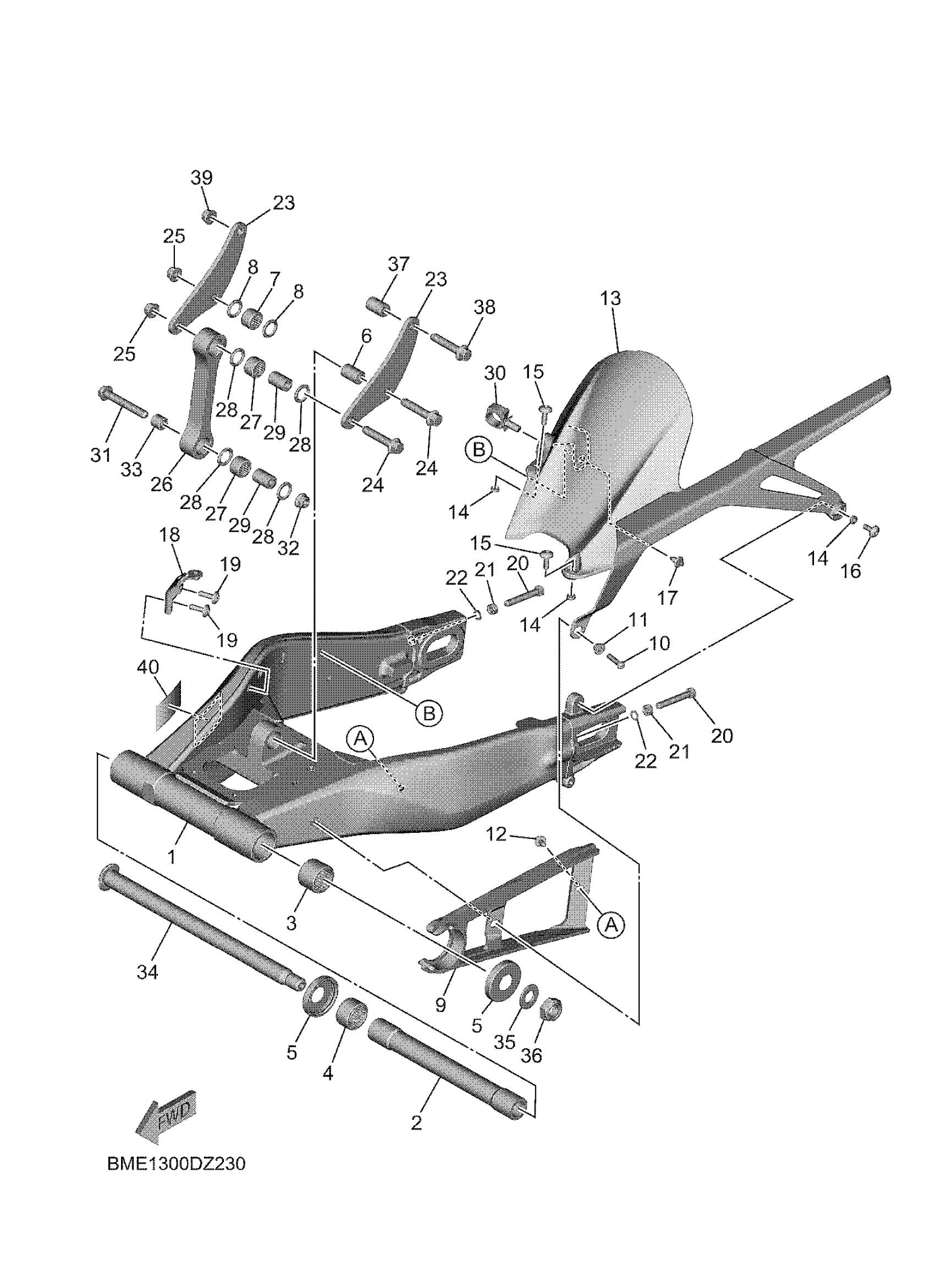

Yamaha MT09RL (MT09) BME3 2024 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

B7N-22110-10-00

$1,281.99

2

COLLAR

90387-22037-00

Unavailable

3

BEARING

93317-330A0-00

$35.99

4

BEARING

93317-330A1-00

$32.99

5

COVER, THRUST 1

5VY-22128-00-00

$14.49

6

COLLAR

90387-1012A-00

$21.99

7

BEARING

93315-31758-00

$40.99

8

OIL SEAL

93109-17071-00

$7.49

9

SEAL, GUARD

B7N-22151-00-00

$23.99

10

BOLT, BUTTON HEAD

92012-06025-00

$3.13

11

C0LLAR (3JB1)

90387-062X0-00

$20.99

12

RIVET

90269-07007-00

$4.08

13

REAR FENDER COMP.

B7N-21650-01-00

Unavailable

14

COLLAR

90387-06106-00

$7.49

15

SCREW

90149-06104-00

$4.61

16

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

17

RIVET

90269-07007-00

$4.08

18

STAY

BME-22538-00-00

Unavailable

19

SCREW

90149-06104-00

$4.61

20

BOLT

90101-08013-00

Unavailable

21

NUT

95302-08600-00

Unavailable

22

WASHER, PLATE

90201-08052-00

Unavailable

23

ARM, RELAY

BME-2217A-00-00

Unavailable

24

BOLT, FLANGE

90105-10030-00

Unavailable

25

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

26

ARM 1

BME-2217M-00-00

Unavailable

27

BEARING

93315-31758-00

$40.99

28

OIL SEAL

93109-17071-00

$7.49

29

COLLAR

90387-1012A-00

$21.99

30

CLAMP

90464-20009-00

Unavailable

31

BOLT, FLANGE

90105-10211-00

Unavailable

32

NUT, S/L FLANGE

95602-10200-00

Unavailable

33

COLLAR

90387-10043-00

Unavailable

34

SHAFT, PIVOT

B7N-22141-00-00

Unavailable

35

WASHER, PLATE

90201-18013-00

Unavailable

36

NUT, SELF-LOCKING

90185-18009-00

Unavailable

37

COLLAR

90387-10125-00

Unavailable

38

BOLT, FLANGE

90105-10030-00

Unavailable

39

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

40

LABEL, TIRE

14B-21668-01-00

Unavailable
