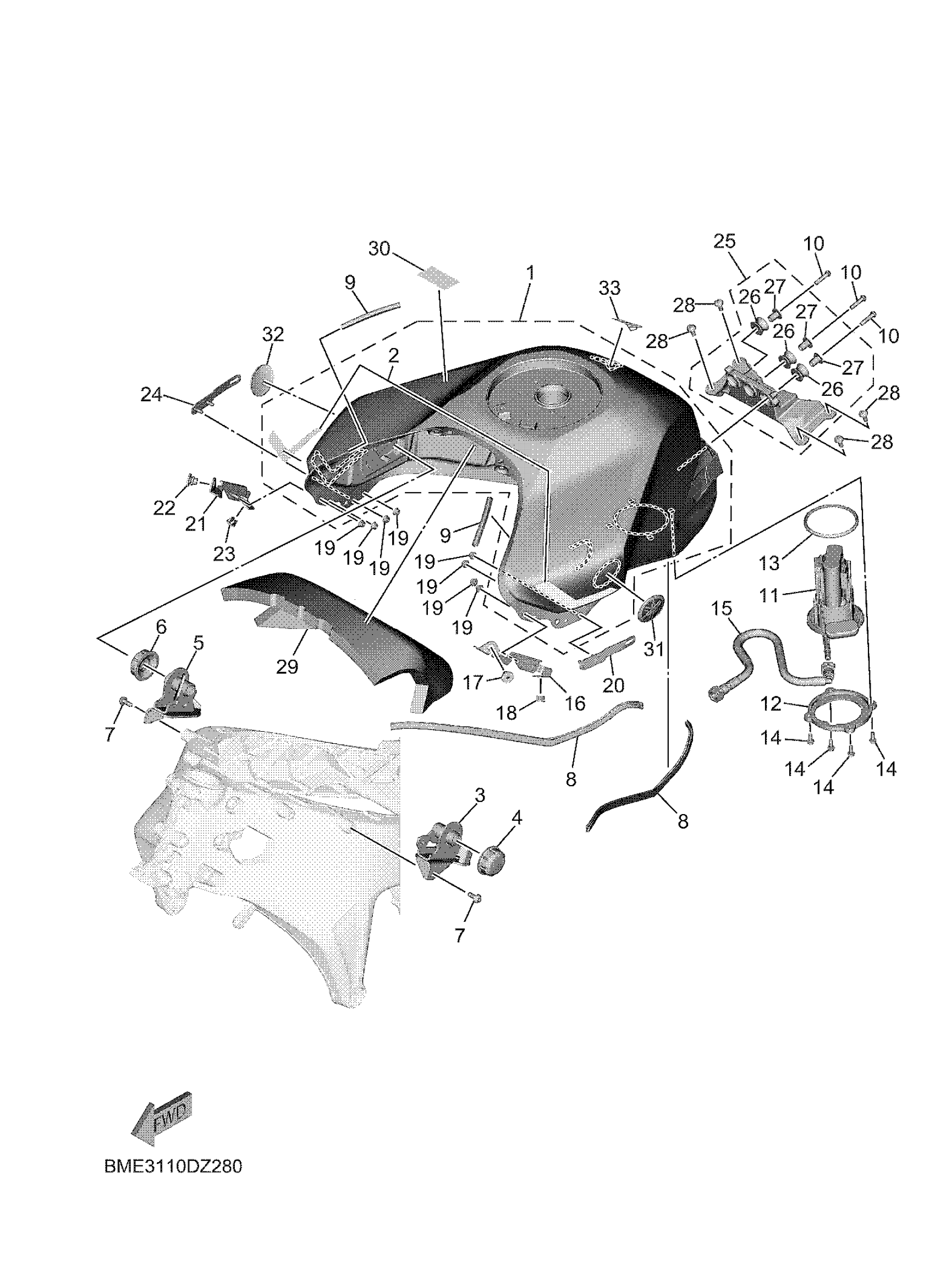

Yamaha MT09RL (MT09) BME3 2024 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BME-YG241-00-01

Unavailable

2

GRAPHIC SET

BME-24240-20-00

$44.99

3

BRACKET, FUEL TANK

BME-24191-00-00

$71.99

4

DAMPER, LOCATING 1

BME-24181-00-00

Unavailable

5

BRACKET, FUEL TANK

BME-24192-00-00

Unavailable

6

DAMPER, LOCATING 1

BME-24181-00-00

Unavailable

7

BOLT

90111-06059-00

$4.72

8

MOLD, FUEL TANK

BME-24188-00-00

$14.99

9

MOLD, FUEL TANK

BAG-24188-00-00

$10.49

10

BOLT, BUTTON HEAD

92012-06025-00

$3.13

11

FUEL PUMP COMP.

1RC-13907-20-00

$422.99

12

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

13

O-RING

1RC-24486-00-00

$30.99

14

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

15

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

16

PLATE, FITTING

BME-2411F-00-00

Unavailable

17

NUT(1UX)

90179-05525-00

Unavailable

18

GROMMET

2RP-21719-00-00

Unavailable

19

NUT, FLANGE

95702-05500-00

Unavailable

20

STAY, RR. LH.

BME-2412J-00-00

Unavailable

21

HOOK TANK FITTING

BME-2411L-00-00

Unavailable

22

NUT(1UX)

90179-05525-00

Unavailable

23

GROMMET

2RP-21719-00-00

Unavailable

24

STAY, RR. RH.

BME-2412K-00-00

Unavailable

25

TANK BRACKET ASSY

BME-24105-00-00

Unavailable

26

GROMMET

BME-24339-00-00

Unavailable

27

COLLAR

90387-06136-00

Unavailable

28

BOLT

90111-06029-00

Unavailable

29

DAMPER, PLATE 1

BME-2414H-00-00

Unavailable

30

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable

31

EMBLEM

BME-2413B-01-00

Unavailable

32

EMBLEM

BME-2414B-01-00

Unavailable

33

EMBLEM 1

B67-24161-01-00

Unavailable
