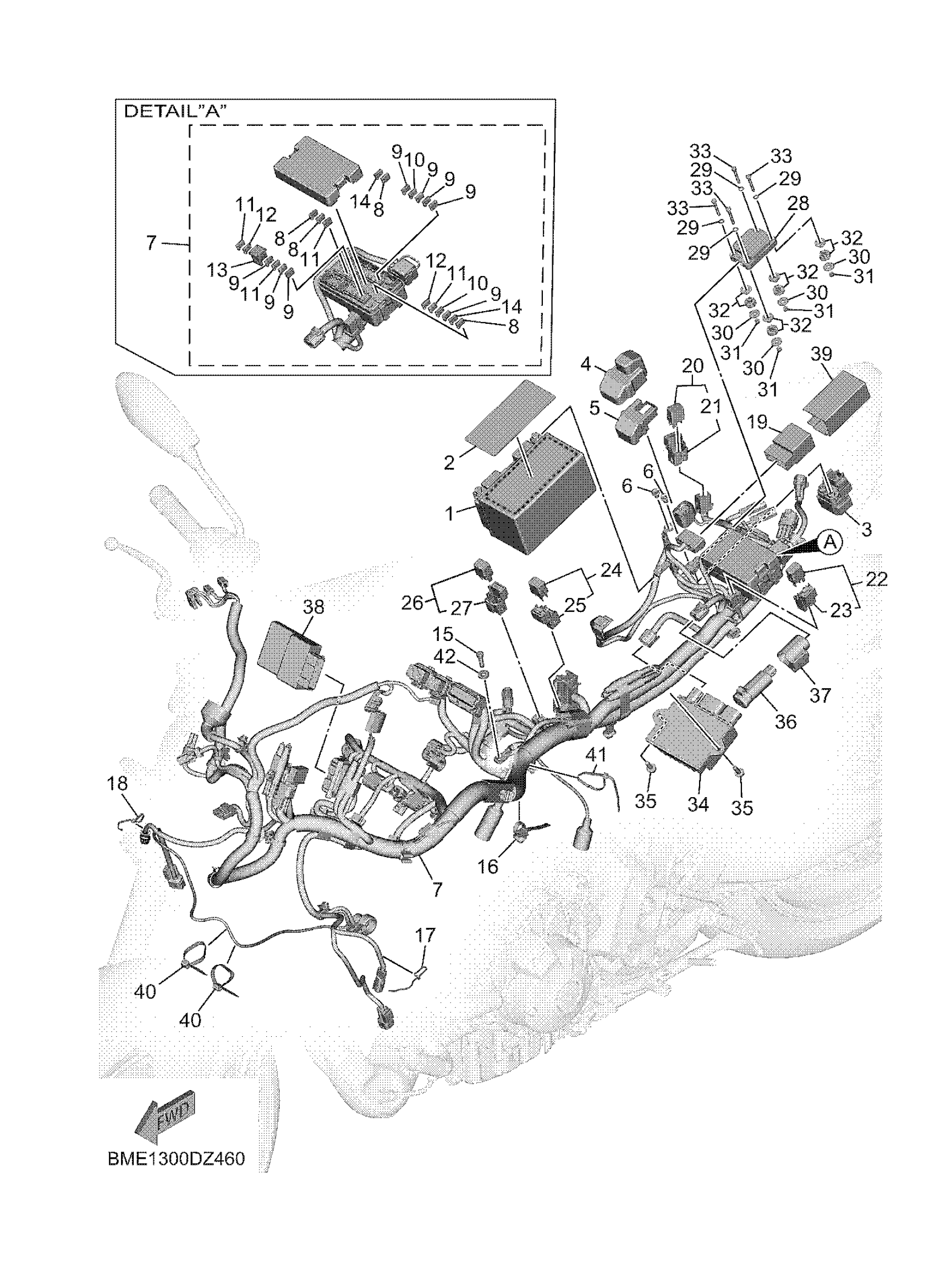

Yamaha MT09RL (MT09) BME3 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY

5VY-82100-02-00

Unavailable

2

SEAL, BATTERY

BME-82118-00-00

$5.60

3

STARTER RELAY ASSY

B7N-81940-00-00

Unavailable

4

COVER

BME-81942-00-00

$10.49

5

COVER, LEAD WIRE

5SL-82119-30-00

$3.74

6

BOLT FLANGE

90105-06230-00

Unavailable

7

WIRE HARNESS ASSY

BME-82590-10-00

$895.99

8

FUSE (2A)

B7N-82151-80-00

$12.49

9

FUSE (7.5A)

B7N-82151-00-00

$13.99

10

FUSE (10A)

B7N-82151-30-00

Unavailable

11

FUSE (15A)

B7N-82151-10-00

$12.49

12

FUSE (30A)

B7N-82151-60-00

$12.49

13

FUSE

B7N-82151-B1-00

$15.99

14

FUSE (5A)

BLG-82151-90-00

$12.49

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

CLAMP

90464-25009-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

CLAMP

90465-10098-00

Unavailable

19

RELAY ASSY

5VK-81950-52-00

Unavailable

20

RELAY ASSY

1TP-81950-00-00

Unavailable

21

HOLDER,RELAY

5EA-81952-00-00

Unavailable

22

RELAY ASSY

1TP-81950-00-00

Unavailable

23

HOLDER,RELAY

5EA-81952-00-00

Unavailable

24

RELAY ASSY

1TP-81950-00-00

Unavailable

25

HOLDER,RELAY

5EA-81952-00-00

Unavailable

26

RELAY ASSY

1TP-81950-00-00

Unavailable

27

HOLDER,RELAY

5EA-81952-00-00

Unavailable

28

INERTIAL MEASURE,

BME-8593A-00-00

Unavailable

29

WASHER, PLAIN (646)

92990-04600-00

Unavailable

30

WASHER PLATE

90201-04034-00

Unavailable

31

NUT, U (7LY)

95617-04100-00

Unavailable

32

GROMMET AND COLLAR

B7N-W8A8D-00-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

91317-04030-00

Unavailable

34

GENERATOR CONTROL

BME-81963-01-00

Unavailable

35

BOLT, FLANGE DEEP

95D37-06016-00

Unavailable

36

USB ASSY

BME-821E0-00-00

Unavailable

37

BAND

BME-82591-00-00

Unavailable

38

BODY CONT,MODULE A

BME-85903-10-00

Unavailable

39

COVER 1

1WS-8246B-00-00

Unavailable

40

CLAMP(4FM)

90464-15195-00

Unavailable

41

BAND

1UA-82591-00-00

Unavailable

42

WASHER, PLATE (35R)

90201-060H9-00

Unavailable
