2023 Yamaha MT09 (MT09PL) Steering Handle & Cable Diagram

← All diagrams

Find the part on the Steering Handle & Cable diagram for your 2023 Yamaha MT09 (MT09PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

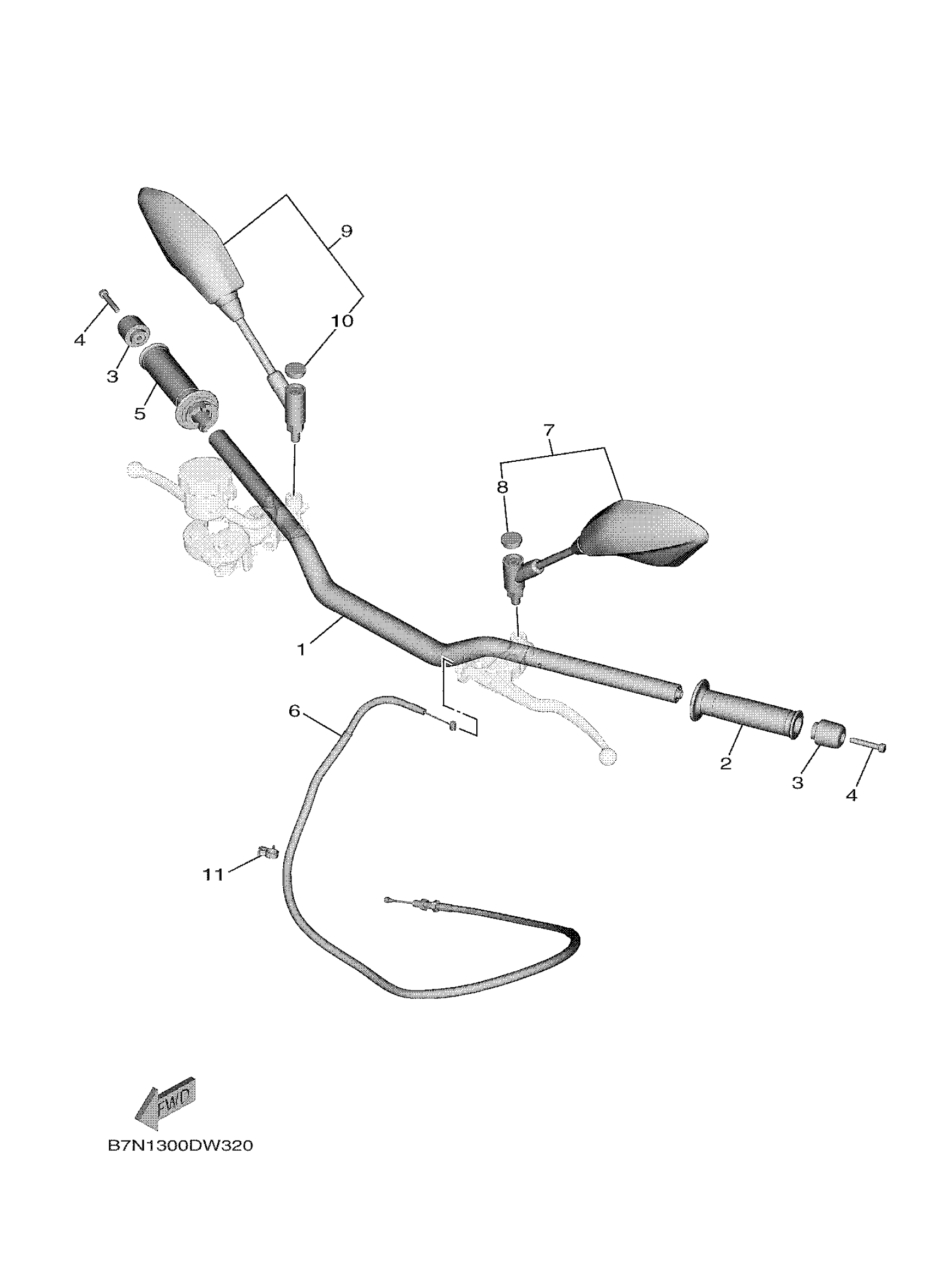

2023 Yamaha MT09 (MT09PL) Steering Handle & Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

B7N-26111-02-00

1
Out of stock

2

GRIP

2C0-26241-00-00

—

$26.30

In stock

3

END, GRIP

4YR-26246-00-00

1

$19.88

In stock

4

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

5

GRIP ASSY

B7N-26240-10-00

—

$52.28

In stock

6

WIRE, CLUTCH

B7N-26335-00-00

1

$30.89

In stock

7

REAR VIEW MIRROR A

B7N-26280-00-00

1

$78.40

In stock

8

CAP

5PS-26133-20-00

1

$5.35

In stock

9

REAR VIEW MIRROR A

B7N-26290-00-00

1

$78.40

In stock

10

CAP

5PS-26133-20-00

1

$5.35

In stock

11

CLAMP

90464-09023-00

1

$5.54

In stock
