2023 Yamaha MT09 (MT09PL) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2023 Yamaha MT09 (MT09PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

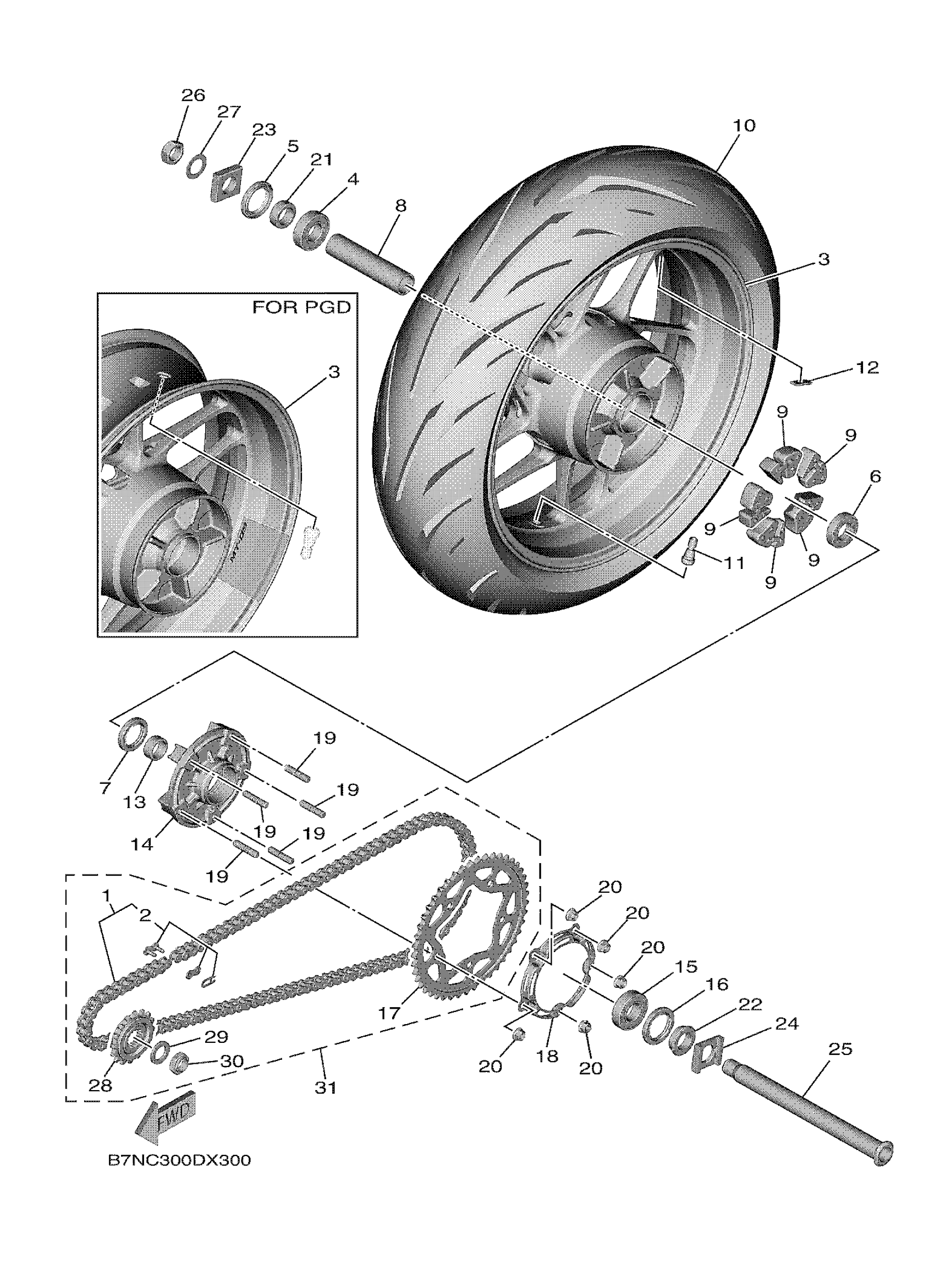

2023 Yamaha MT09 (MT09PL) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SET, CHAIN

94A40-17110-00

—
Out of stock

2

JOINT, CHAIN

94682-5502R-00

1
Out of stock

3

CAST WHEEL, REAR

B7N-25338-00-98

1
Out of stock

4

BEARING(3JN)

93306-20531-00

1
Out of stock

5

OIL SEAL

93106-40013-00

1
Out of stock

6

BEARING

93306-07806-00

1
Out of stock

7

OIL SEAL

93106-35042-00

1
Out of stock

8

COLLAR

90387-28031-00

1
Out of stock

9

DAMPER

BD5-25364-00-00

—
Out of stock

10

TIRE (180/55ZR17M/C 73W)

94118-17093-00

1
Out of stock

11

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

12

BALANCER, WHEEL

23P-25398-00-00

1
Out of stock

13

COLLAR, WHEEL

5EB-25377-00-00

1
Out of stock

14

CLUTCH, HUB

2CR-25366-00-00

1
Out of stock

15

BEARING(3JN)

93306-20531-00

1
Out of stock

16

OIL SEAL

93106-40013-00

1
Out of stock

17

SPROCKET, DRIVEN (45T)

B7N-25445-00-00

—
Out of stock

18

BRACKET 1

B7N-2537W-00-00

—
Out of stock

19

BOLT, STUD

90116-10048-00

—
Out of stock

20

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

21

COLLAR, WHEEL

13S-25376-00-00

—
Out of stock

22

COLLAR

90387-28029-00

—
Out of stock

23

PULLER, CHAIN 1

4XV-25388-00-00

—
Out of stock

24

PULLER, CHAIN 2

4XV-25389-00-00

—
Out of stock

25

AXLE, WHEEL

4XV-25381-10-00

—
Out of stock

26

NUT SELF-LOCKING

90185-24002-00

—
Out of stock

27

WASHER PLATE

90201-25027-00

—
Out of stock

28

SPROCKET, DRIVE

2CR-17460-00-00

—
Out of stock

29

WASHER, CONICAL SPRING

90208-22002-00

—
Out of stock

30

NUT

90179-22018-00

—
Out of stock

31

CHAIN & SPROCKET KIT

B7N-W001A-00-00

—
Out of stock
