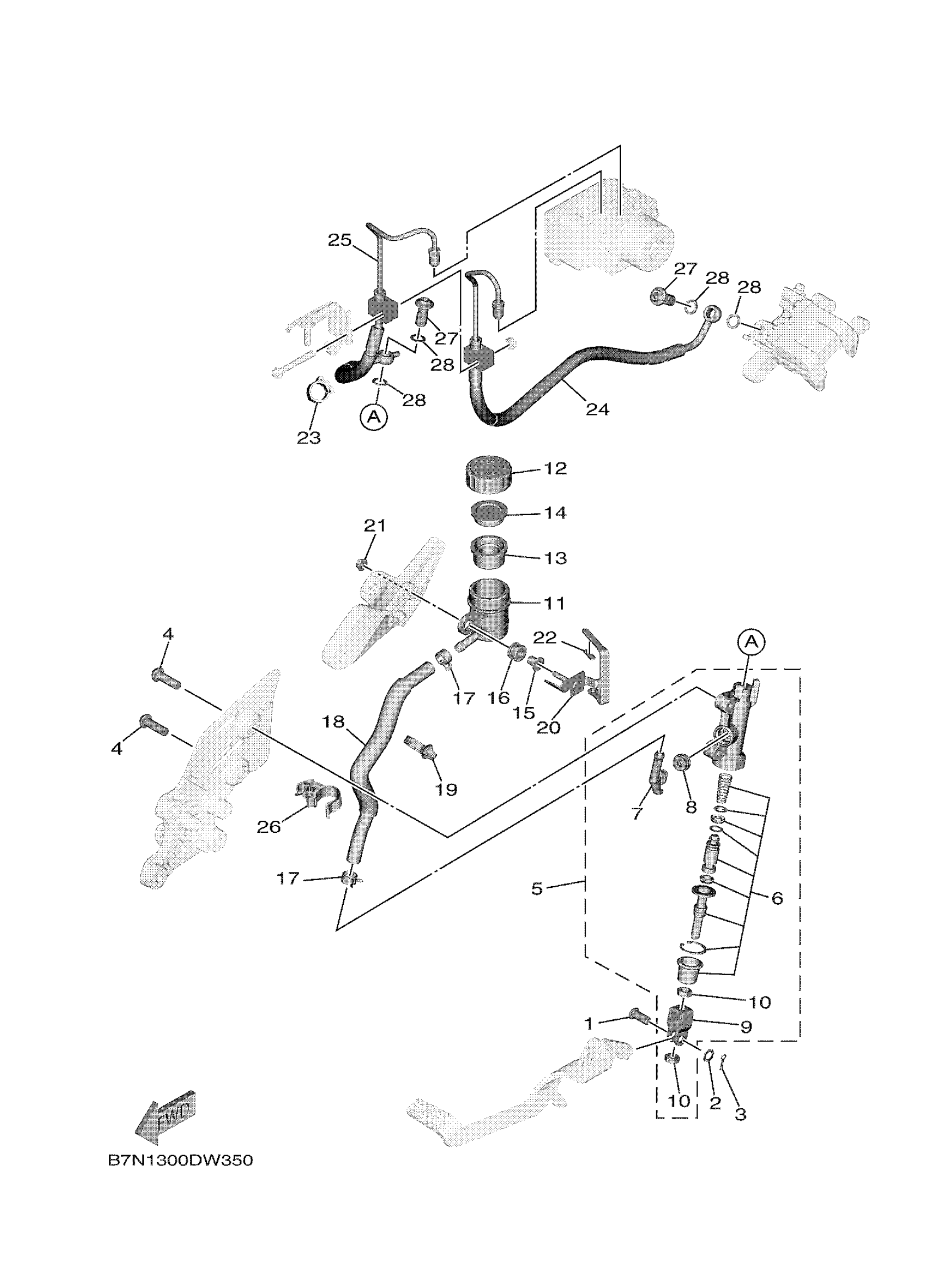

Yamaha MT09PL (MT09) B7NP 2023 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PIN, CLEVIS

90240-08005-00

$8.49

2

WASHER, PLATE

90201-08066-00

$8.49

3

PIN, COTTER (648)

91490-20015-00

$2.20

4

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

5

RR. MASTER CYLINDE

56P-2583V-01-00

$133.99

6

CYLINDER KIT, MASTER

56P-25808-50-00

$103.99

7

JOINT

2D1-2582A-01-00

$5.49

8

O-RING

4BP-2585F-01-00

Unavailable

9

JOINT

4BP-27222-02-00

$29.99

10

NUT

90170-08010-00

$8.49

11

TANK, RESERVOIR

14B-25894-00-00

$63.99

12

CAP, RESERVOIR

2C0-25852-00-00

$7.99

13

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

14

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

15

COLLAR

90387-05028-00

$5.60

16

GROMMET

2C0-26326-00-00

Unavailable

17

CLIP(3FV)

90467-12085-00

Unavailable

18

HOSE, RESERVOIR

B7N-25895-50-00

Unavailable

19

CLAMP

90464-20010-00

Unavailable

20

HOLDER, RESERVE TA

B7N-2582E-00-00

Unavailable

21

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

22

DAMPER, PLATE

90520-01002-00

Unavailable

23

CLAMP

90464-16003-00

Unavailable

24

HOSE, BRAKE 5

B7N-2581K-01-00

Unavailable

25

HOSE, BRAKE 4

B7N-2581J-00-00

Unavailable

26

CLAMP

90464-18013-00

Unavailable

27

BOLT, UNION

90401-10172-00

Unavailable

28

GASKET

90430-10005-00

Unavailable
