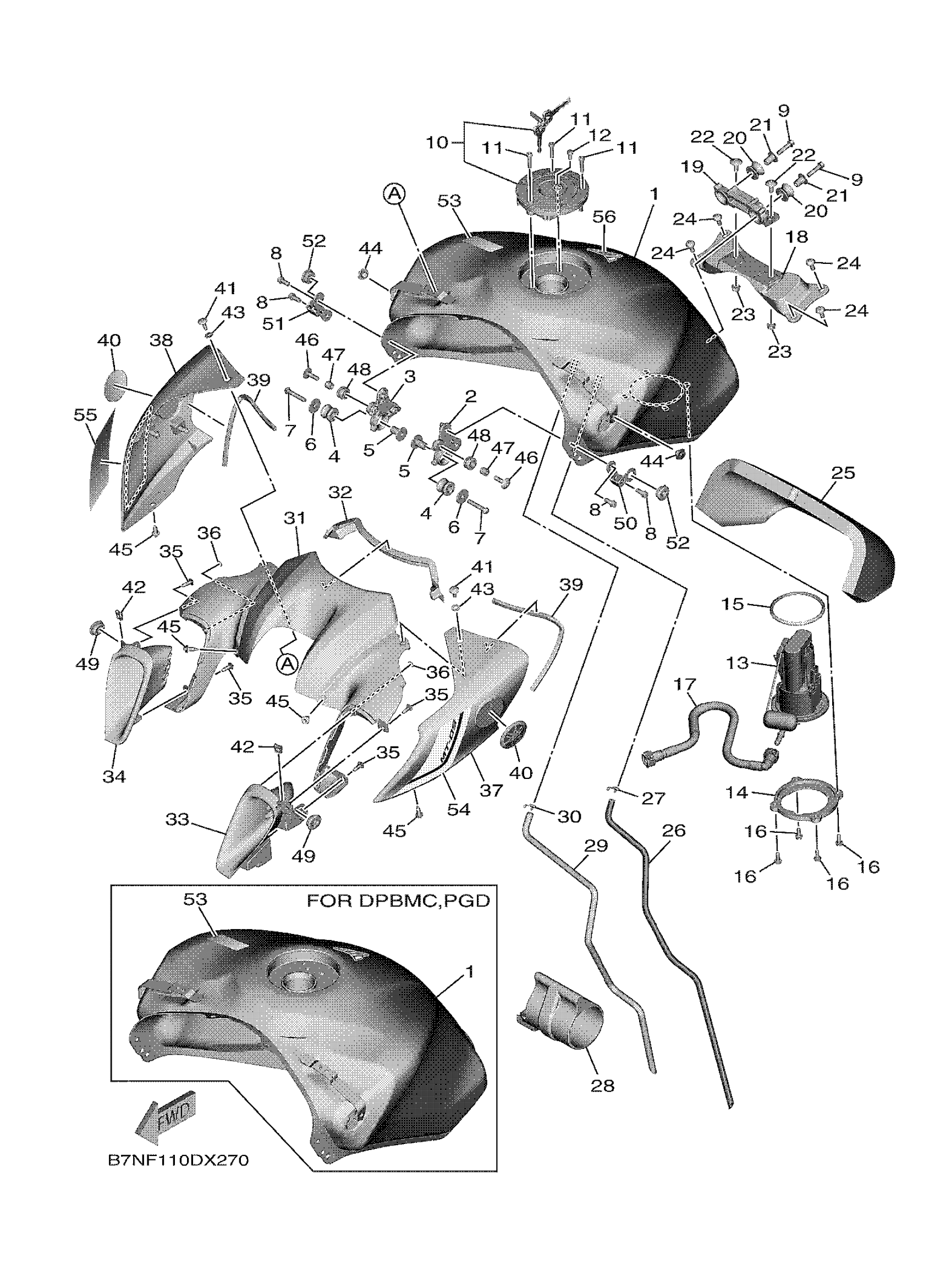

Yamaha MT09PL (MT09) B7NP 2023 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

B7N-24110-00-P1

$617.99

2

BRACKET, FUEL TANK

B7N-24191-00-00

Unavailable

3

BRACKET, FUEL TANK

B7N-24192-00-00

$33.99

4

GROMMET

90480-18008-00

$3.71

5

COLLAR

90387-06266-00

$4.61

6

WASHER PLATE 137241870000

90201-06072-00

$9.49

7

BOLT, BUTTON HEAD

92012-06035-00

$2.34

8

BOLT, FLANGE DEEP

95E37-06014-00

$1.13

9

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

10

CAP ASSY

39P-24602-00-00

$257.99

11

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

12

BOLT

91312-05010-00

$5.60

13

FUEL PUMP COMP

1RC-13907-10-00

$452.99

14

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

15

O-RING

1RC-24486-00-00

$30.99

16

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

17

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

18

BRACKET, TANK FITT

B7N-2413Y-00-00

Unavailable

19

BRACKET, CANISTOR

B7N-2419F-00-00

Unavailable

20

GROMMET

3D7-24339-00-00

Unavailable

21

COLLAR

90387-06136-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06136-00

Unavailable

23

NUT, FLANGE

95702-06500-00

Unavailable

24

BOLT

90111-06029-00

Unavailable

25

DAMPER, PLATE 1

B7N-2414H-00-00

Unavailable

26

PIPE 5

B7N-24315-10-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable

28

DAMPER, LOCATING 3

B7N-24183-10-00

Unavailable

29

PIPE 3

B7N-24313-20-00

Unavailable

30

CLIP

90467-090A2-00

Unavailable

31

COVER, TANK

B7N-241B1-01-00

Unavailable

32

MOLE, FUEL TANK 1

B7N-2418B-00-00

Unavailable

33

GRILL, AIR INTAKE

B7N-2837N-00-00

Unavailable

34

GRILL, AIR INTAKE

B7N-2837R-00-00

Unavailable

35

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

36

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

37

SCOOP, AIR 1

B7N-2137W-00-P1

Unavailable

38

SCOOP, AIR 2

B7N-2137X-00-P1

Unavailable

39

DAMPER PLATE

90520-07002-00

Unavailable

40

EMBLEM

1RC-2413B-02-00

Unavailable

41

BOLT

90111-05007-00

Unavailable

42

NUT, SPRING(1YT)

90183-05042-00

Unavailable

43

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

44

RIVET

90269-09006-00

Unavailable

45

RIVET

90269-06001-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-06137-00

Unavailable

47

COLLAR

90387-06057-00

Unavailable

48

GROMMET

90480-14003-00

Unavailable

49

GROMMET(4DN)

90480-01558-00

Unavailable

50

PLATE, FITTING

B7N-2411F-00-00

Unavailable

51

HOOK TANK FITTING

B7N-2411L-00-00

Unavailable

52

GROMMET(4FU)

90480-13567-00

Unavailable

53

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable

54

GRAPHIC 1

B7N-2173E-50-00

Unavailable

55

GRAPHIC 2

B7N-2173F-50-00

Unavailable

56

EMBLEM 1

B67-24161-01-00

Unavailable
