2022 Yamaha MT09 (MT09NL) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2022 Yamaha MT09 (MT09NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

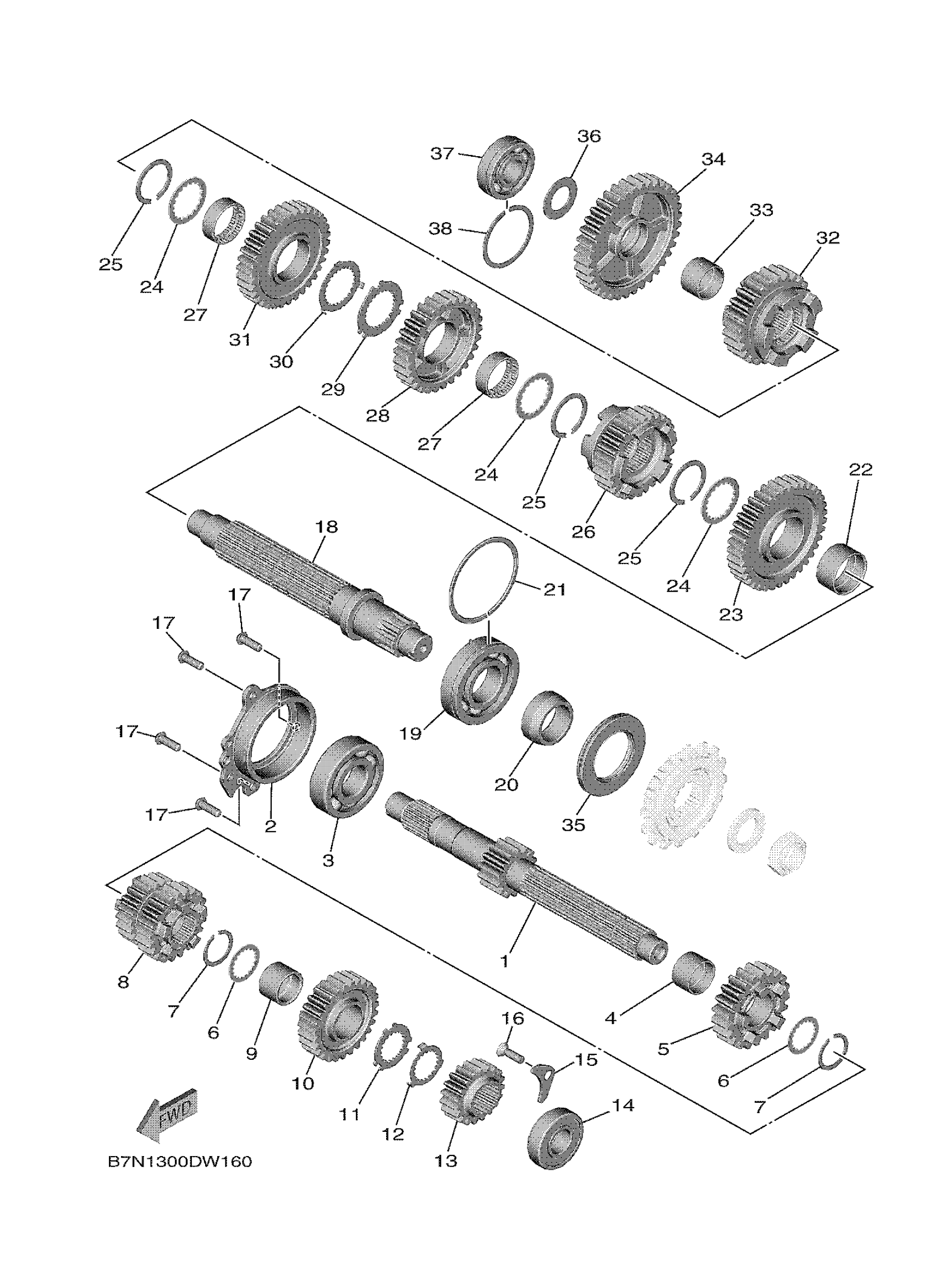

2022 Yamaha MT09 (MT09NL) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

B7N-17411-01-00

1
Out of stock

2

HOUSING, BEARING 1

B7N-15163-00-00

—
Out of stock

3

BEARING(3RR)

93306-30560-00

—
Out of stock

4

COLLAR

90387-25040-00

—
Out of stock

5

GEAR, 5TH PINION

B7N-17151-01-00

1
Out of stock

6

WASHER

90209-22008-00

1
Out of stock

7

CIRCLIP

93440-25186-00

1
Out of stock

8

GEAR, 3RD PINION

B7N-17131-01-00

—
Out of stock

9

COLLAR

90387-22006-00

1
Out of stock

10

GEAR, 6TH PINION

B7N-17161-01-00

1
Out of stock

11

WASHER, CLAW

90214-22003-00

1
Out of stock

12

WASHER, CLAW

90214-22002-00

1
Out of stock

13

GEAR, 2ND PINION

B7N-17121-01-00

—
Out of stock

14

BEARING

93306-20487-00

—
Out of stock

15

PLATE, BEARING COV

B7N-15381-00-00

1
Out of stock

16

SCREW

90149-06085-00

—
Out of stock

17

SCREW

90149-06213-00

—
Out of stock

18

AXLE, DRIVE

B7N-17421-01-00

—
Out of stock

19

BEARING

93306-20663-00

—
Out of stock

20

COLLAR

90387-30012-00

—
Out of stock

21

CIRCLIP

93440-64199-00

—
Out of stock

22

COLLAR

90387-31004-00

—
Out of stock

23

GEAR, 2ND WHEEL

B7N-17221-01-00

—
Out of stock

24

WASHER

90209-28008-00

—
Out of stock

25

CIRCLIP

93440-31187-00

—
Out of stock

26

GEAR, 6TH WHEEL

B7N-17261-01-00

—
Out of stock

27

COLLAR

90387-28030-00

—
Out of stock

28

GEAR, 4TH WHEEL

B7N-17241-01-00

—
Out of stock

29

WASHER, CLAW

90214-29002-00

—
Out of stock

30

WASHER, CLAW

90214-28002-00

—
Out of stock

31

GEAR, 3RD WHEEL

B7N-17231-01-00

—
Out of stock

32

GEAR, 5TH WHEEL

B7N-17251-01-00

—
Out of stock

33

COLLAR

90387-25040-00

—
Out of stock

34

GEAR, 1ST WHEEL

B7N-17211-01-00

—
Out of stock

35

OIL SEAL

93102-40030-00

—
Out of stock

36

WASHER, PLATE

90201-20008-00

—
Out of stock

37

BEARING

93306-20486-00

—
Out of stock

38

CLIP

B7N-17414-00-00

—
Out of stock
