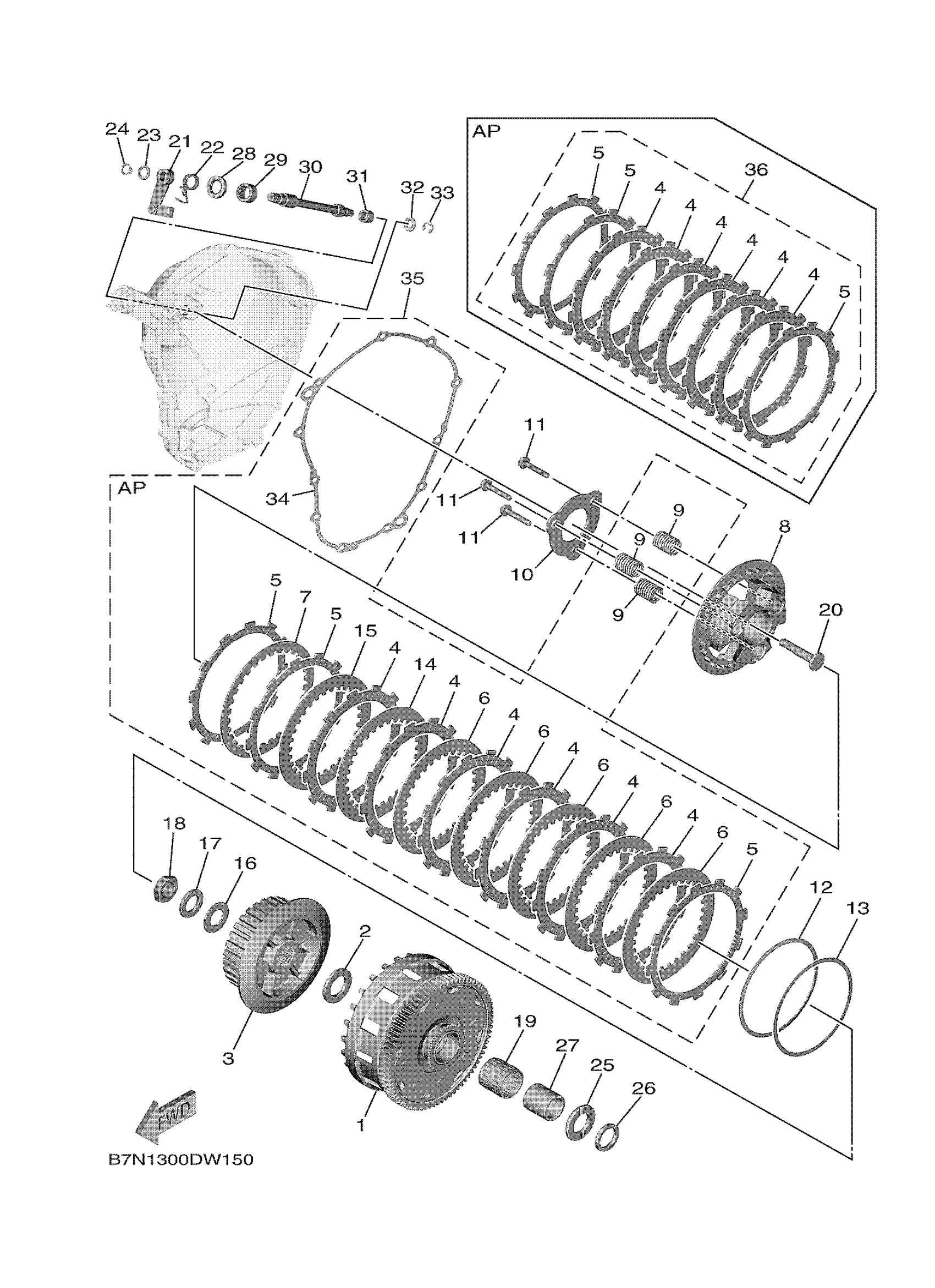

Find the part on the Clutch diagram for your 2022 Yamaha MT09 (MT09NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha MT09 (MT09NL) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVEN GEAR COMP.

B7N-16150-00-00

1
Out of stock

2

PLATE, THRUST

363-16154-00-00

1
Out of stock

3

BOSS, CLUTCH

B7N-16371-00-00

1
Out of stock

4

PLATE, FRICTION

B7N-16321-00-00

1
Out of stock

5

PLATE, FRICTION 2

B90-16331-00-00

1
Out of stock

6

PLATE, CLUTCH 2

5VY-16325-20-00

1
Out of stock

7

PLATE, CLUTCH 1

1TD-16324-00-00

1
Out of stock

8

PRESSURE PLATE ASS

B7N-16350-00-00

1
Out of stock

9

SPRING, COMPRESSIO

B7N-16173-00-00

1
Out of stock

10

PLATE, PRESSURE 2

B90-16352-00-00

1
Out of stock

11

SCREW, SPRING

2CR-16337-00-00

1
Out of stock

12

SPRING.,CUSHION

1TD-16383-01-00

1
Out of stock

13

PLATE, SEAT

1TD-16384-00-00

1
Out of stock

14

PLATE, CLUTCH 2

4B1-16325-00-00

—
Out of stock

14

PLATE, CLUTCH 2

5VY-16325-20-00

1
Out of stock

14

PLATE, CLUTCH 1

BR9-16324-10-00

—
Out of stock

15

PLATE, CLUTCH 2

4B1-16325-00-00

—
Out of stock

15

PLATE, CLUTCH 2

5VY-16325-20-00

1
Out of stock

15

PLATE, CLUTCH 1

BR9-16324-10-00

—
Out of stock

16

WASHER, PLATE

90201-20030-00

—
Out of stock

17

WASHER, CONICAL SPRING

90208-20001-00

—
Out of stock

18

NUT

90179-20020-00

—
Out of stock

19

BEARING

93310-33277-00

—
Out of stock

20

ROD, PUSH 1

B7N-16356-00-00

—
Out of stock

21

PUSH LEVER ASSY

1RC-16340-00-00

—
Out of stock

22

SPRING, TORSION

90508-18051-00

—
Out of stock

23

WASHER, PLATE

90201-10029-00

—
Out of stock

24

CIRCLIP(10W)

99009-10400-00

—
Out of stock

25

PLATE, THRUST 2

B7N-16164-00-00

—
Out of stock

26

PLATE, THRUST 2

2C0-16164-00-00

—
Out of stock

27

SPACER 1

1RC-16181-00-00

—
Out of stock

28

OIL SEAL (3X3)

93102-15212-00

—
Out of stock

29

BEARING

93315-21570-00

—
Out of stock

30

AXLE, PUSH LEVER

5VY-16382-10-00

—
Out of stock

31

BEARING

93317-11096-00

—
Out of stock

32

WASHER(6TA)

92907-08600-00

—
Out of stock

33

CIRCLIP

99080-07600-00

1
Out of stock

34

GASKET, CRANKCASE COVER 2

B7N-15461-01-00

—
Out of stock

35

CLUTCH PLATE KIT

B7N-W001G-01-00

—
Out of stock

36

FRICTION PLATE KIT

B7N-W001M-00-00

—
Out of stock
