Description

Price

1

DOUBLE SEAT ASSY

B7N-24730-01-00

$199.99

2

STOPPER, UPPER MOU

682-44532-01-00

$2.39

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

STOPPER, MAIN STAN

B7N-27114-00-00

$3.35

5

STOPPER MAIN STAND

278-27114-00-00

$8.99

6

SEAT LOCK ASSY

B90-24780-00-00

$30.99

7

NUT, FLANGE

95702-06500-00

$2.39

8

BRACKET, SEAT LOCK

B7N-2478X-00-00

$48.99

9

BOLT,HEX. SOCKET BUTTON

90111-06160-00

$4.67

10

ROTOR SET

1RC-W2470-00-00

$73.99

11

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

12

TOOL KIT

B7N-28100-00-00

Unavailable

13

GRIP, DRIVER

2H7-28151-00-00

$6.99

14

DRIVER

2GV-28152-00-00

$5.49

15

WRENCH, HEXAGON 8

23P-28164-00-00

$3.38

16

BAND, BATTERY

2T4-82131-00-00

Unavailable

17

POUCH

B7N-28186-00-00

Unavailable

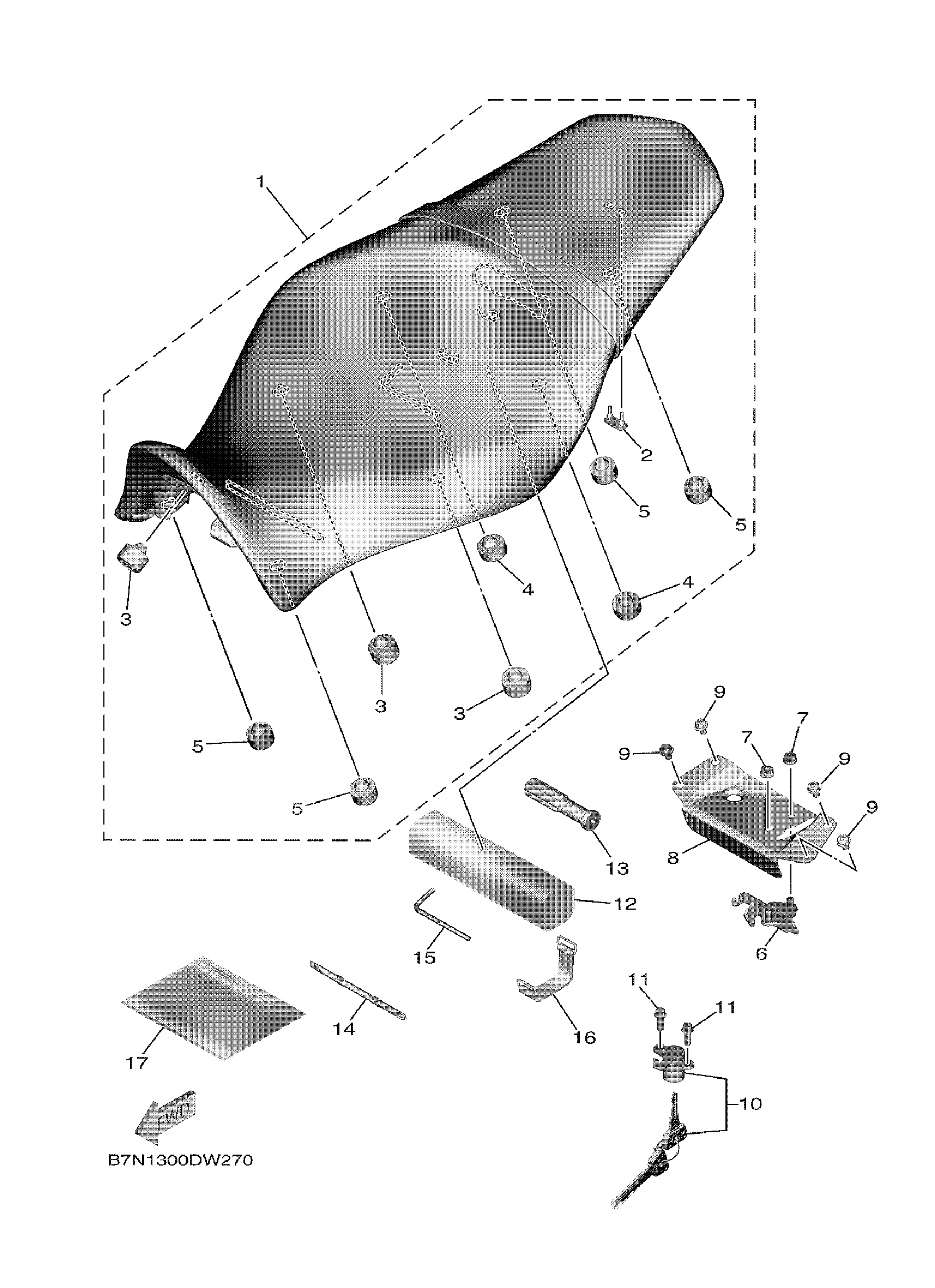

Yamaha MT09NL (MT09) B7NF 2022 SEAT Diagram

DOUBLE SEAT ASSY

STOPPER, UPPER MOU

STOPPER, MAIN STAND

STOPPER, MAIN STAN

STOPPER MAIN STAND

SEAT LOCK ASSY

NUT, FLANGE

BRACKET, SEAT LOCK

BOLT,HEX. SOCKET BUTTON

ROTOR SET

BOLT, FLANGE DEEP RECESS

TOOL KIT

GRIP, DRIVER

DRIVER

WRENCH, HEXAGON 8

BAND, BATTERY

POUCH
