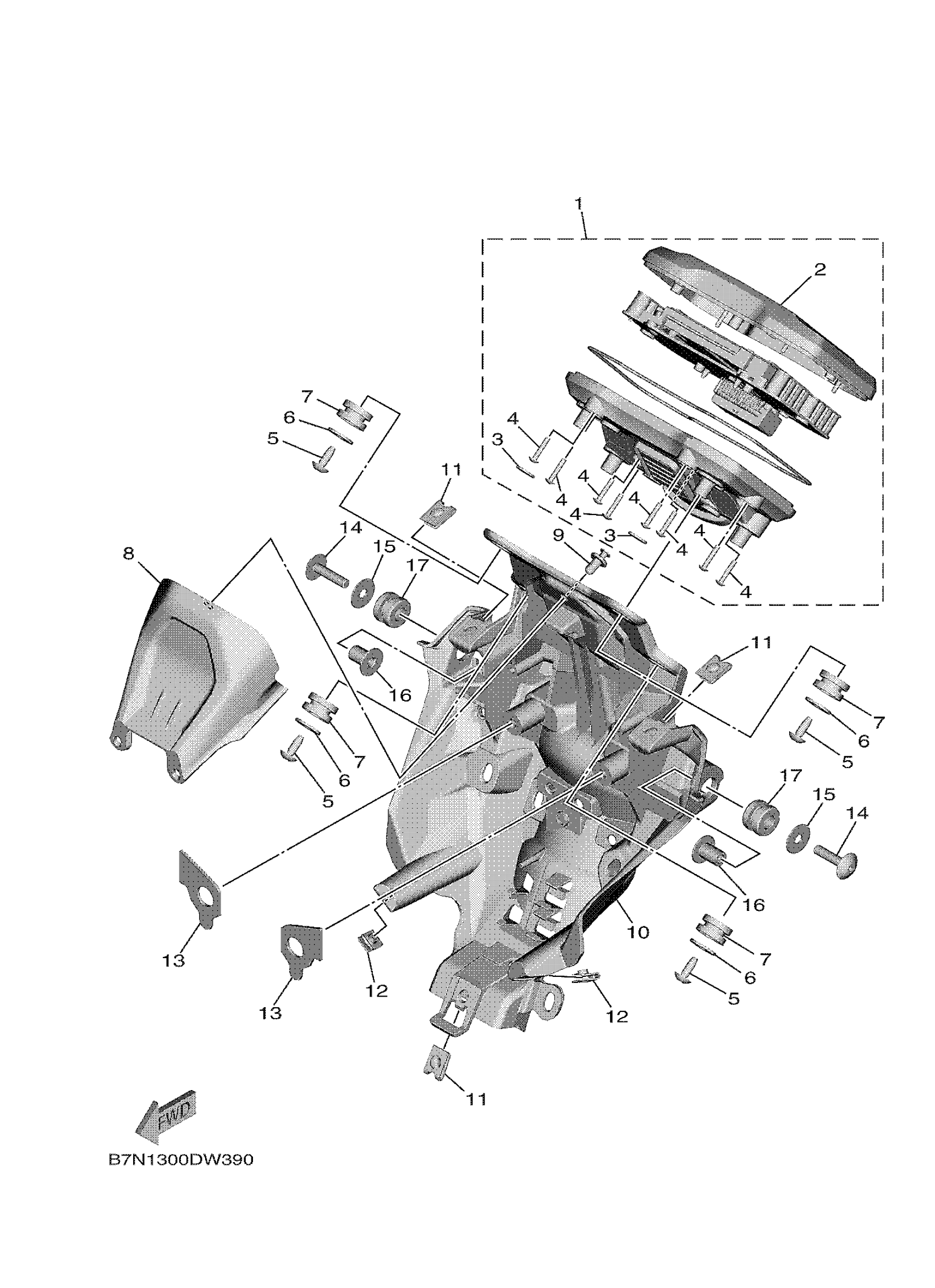

Yamaha MT09NL (MT09) B7NF 2022 METER Diagram

#

Description
Price

1

METER ASSY

B7N-83500-20-00

Unavailable

2

CASE, METER UPPER

B7N-8353E-20-00

Unavailable

3

SEAL 1

8GC-21732-00-00

$2.60

4

SCREW, PANEL FITTING

5PW-8352S-00-00

$4.47

5

SCREW, ROUND TAPPING

90160-05017-00

$2.17

6

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

7

DAMPER

4XV-83513-00-00

$7.99

8

COVER, METER

B7N-83559-00-00

$7.49

9

RIVET

90269-06018-00

$2.28

10

BRACKET, METER

B7N-83519-00-00

$46.99

11

NUT, SPRING

90183-061A4-00

$2.39

12

NUT, SPRING

90183-050A6-00

$8.49

13

DAMPER

B7N-83513-00-00

$3.40

14

BOLTHEX. SOCKET BUTTON

90111-06189-00

$2.34

15

WASHER, PLATE

90201-06095-00

$8.49

16

COLLAR

90387-06136-00

Unavailable

17

GROMMET 839774310000

90480-14023-00

Unavailable
