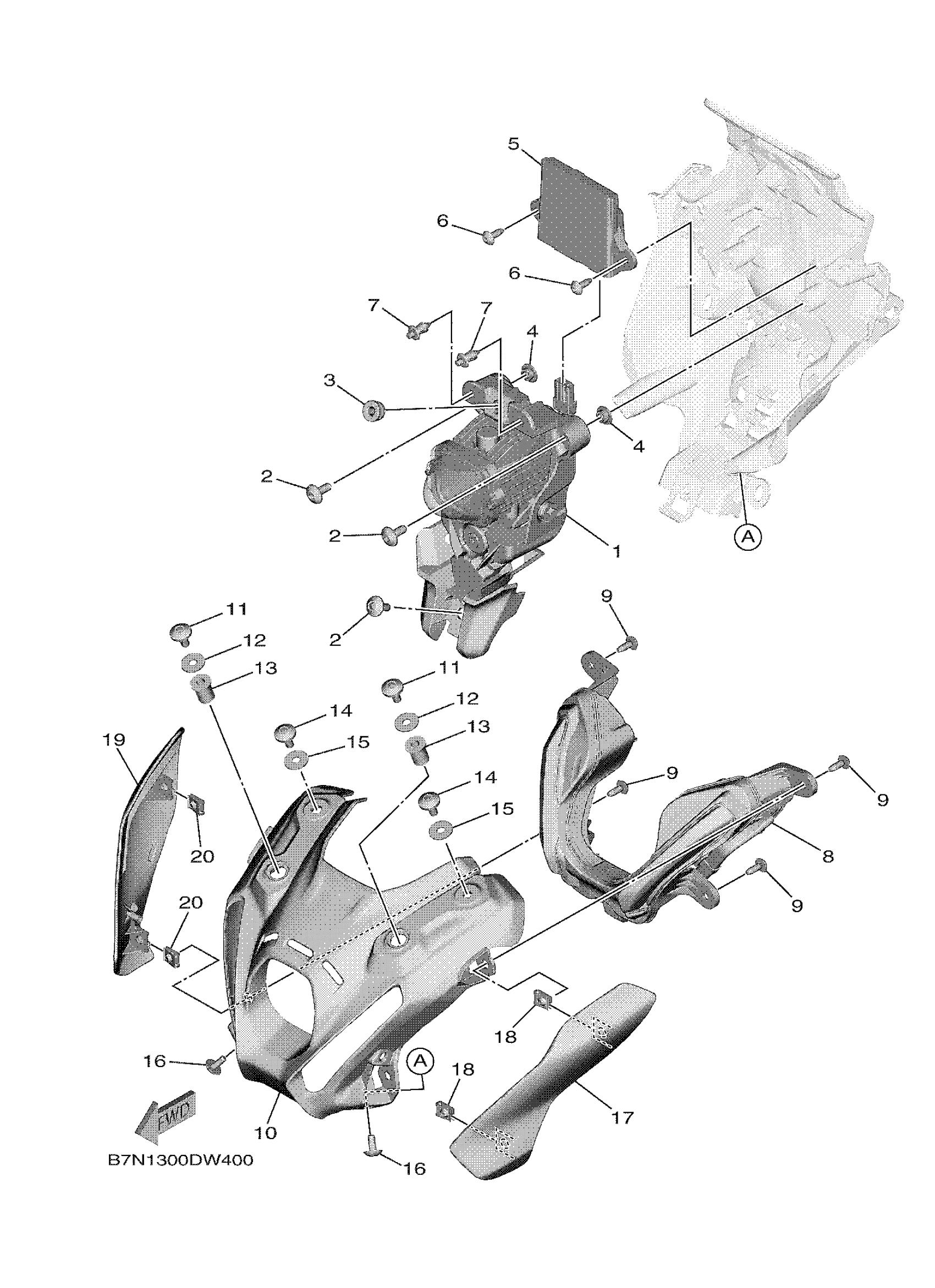

Yamaha MT09NL (MT09) B7NF 2022 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

B7N-84300-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-06095-00

$8.49

3

GROMMET

90480-10003-00

$8.49

4

COLLAR

90387-06353-00

$3.28

5

LIGHT CONTROL UNIT

B7N-85490-00-00

$312.99

6

SCREW, ROUND TAPPING

90160-05017-00

$2.17

7

RIVET

90269-06001-00

$5.60

8

PILOT LIGHT ASSY 1

B7N-84301-00-00

$321.99

9

SCREW, ROUND TAPPING

90160-05017-00

$2.17

10

PANEL, INNER 1

B7N-2836K-00-00

$21.99

11

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

12

WASHER, PLATE 8221447500

90201-06057-00

$5.60

13

NUT(1WT)

90179-06520-00

$8.49

14

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

BOLT

90111-05002-00

Unavailable

17

COVER, OUTER 1

B7N-23122-00-P1

Unavailable

18

NUT, SPRING(1YT)

90183-05042-00

Unavailable

19

COVER, OUTER 2

B7N-23132-00-P1

Unavailable

20

NUT, SPRING(1YT)

90183-05042-00

Unavailable
