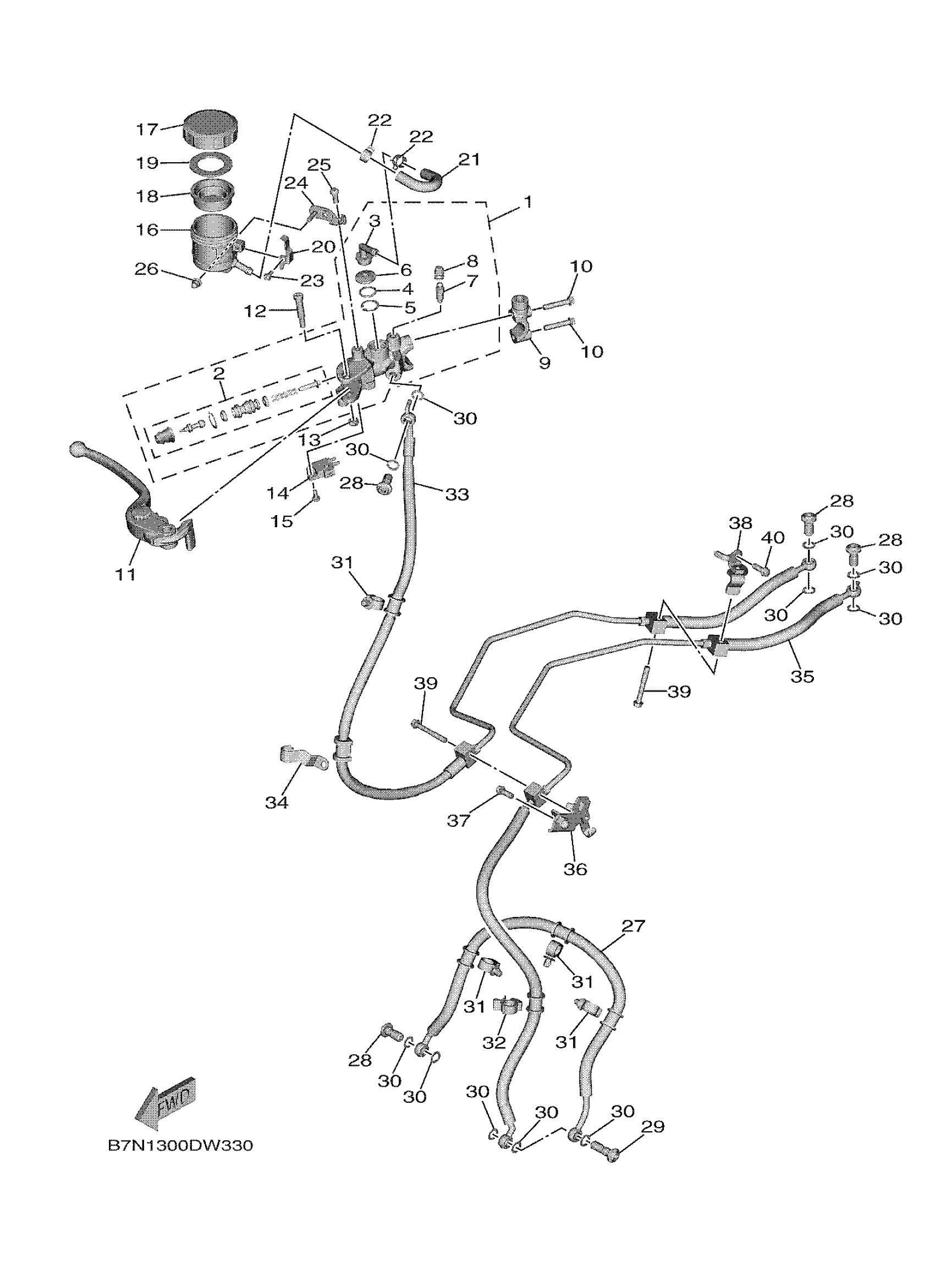

Yamaha MT09NL (MT09) B7NF 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SU

B7N-2580A-00-00

$180.99

2

CYLINDER KIT, MASTER

2CR-25807-00-00

$56.99

3

JOINT

2VN-2582A-50-00

$20.99

4

O-RING (22U)

93210-15566-00

$7.49

5

CIRCLIP

2VN-25866-00-00

$6.99

6

COVER, DUST

3FV-2589A-00-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRACKET, MASTER CY

B7N-25867-00-00

Unavailable

10

BOLT

B7N-26332-00-00

$3.28

11

LEVER 2

B7N-83922-00-00

$111.99

12

BOLT, LEVER

2CR-2589F-00-00

$6.99

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

15

SCREW, PAN HEAD

98511-04012-00

Unavailable

16

TANK, RESERVOIR

2CR-25894-00-00

Unavailable

17

CAP, RESERVOIR

3GM-25852-50-00

Unavailable

18

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

Unavailable

19

BUSH,DIAPHRAGM

2CR-25855-00-00

Unavailable

20

HOLDER

2CR-2589G-00-00

Unavailable

21

HOSE, RESERVOIR

B7N-25895-00-00

Unavailable

22

CLIP(3FV)

90467-12085-00

Unavailable

23

SCREW, WITH WASHER

3GM-2589H-00-00

Unavailable

24

BRACKET

B7N-26296-00-00

Unavailable

25

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

26

NUT, CROWN

90176-05003-00

Unavailable

27

HOSE, BRAKE 1

B7N-25872-00-00

Unavailable

28

BOLT, UNION

90401-10172-00

Unavailable

29

BOLT, UNION

90401-10042-00

Unavailable

30

GASKET

90430-10005-00

Unavailable

31

CLAMP

90464-18002-00

Unavailable

32

CLAMP

90464-14013-00

Unavailable

33

BRAKE HOSE ASSY

B7N-2584A-00-00

Unavailable

34

HOLDER, BRAKE HOSE

B7N-25875-00-00

Unavailable

35

HOSE, BRAKE

B7N-2584B-01-00

Unavailable

36

BRACKET, REFLECTOR

B7N-85132-00-00

Unavailable

37

BOLT, FLANGE

95022-06016-00

Unavailable

38

BRACKET

B7N-2612E-00-00

Unavailable

39

BOLT, FLANGE

95022-06045-00

Unavailable

40

BOLT, FLANGE

95022-06016-00

Unavailable
